Product Specifications

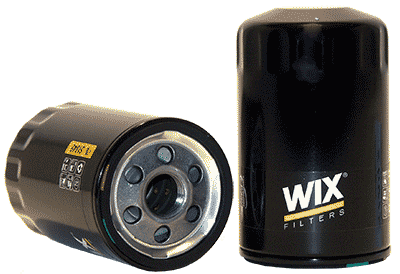

Part Number:51045
UPC Number:765809510456
Style:Spin-On Lube Filter
Service:Lube
Type:Full Flow
Media:Enhanced Cellulose
Height:4.828 (123)*
Outer Diameter Top:2.921 (74)*
Outer Diameter Bottom:Closed:
Thread Size:13/16-16
By-Pass Valve Setting-PSI:None
Beta Ratio:2/20=6/20
Burst Pressure-PSI:325
Max Flow Rate:9-11 GPM
Nominal Micron Rating:21
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.734 (69)*2.430 (62)*0.226 (6)*

Principle Application:

Principle Application:GM Family of Cars V-8 (77-92)
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 51045

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
