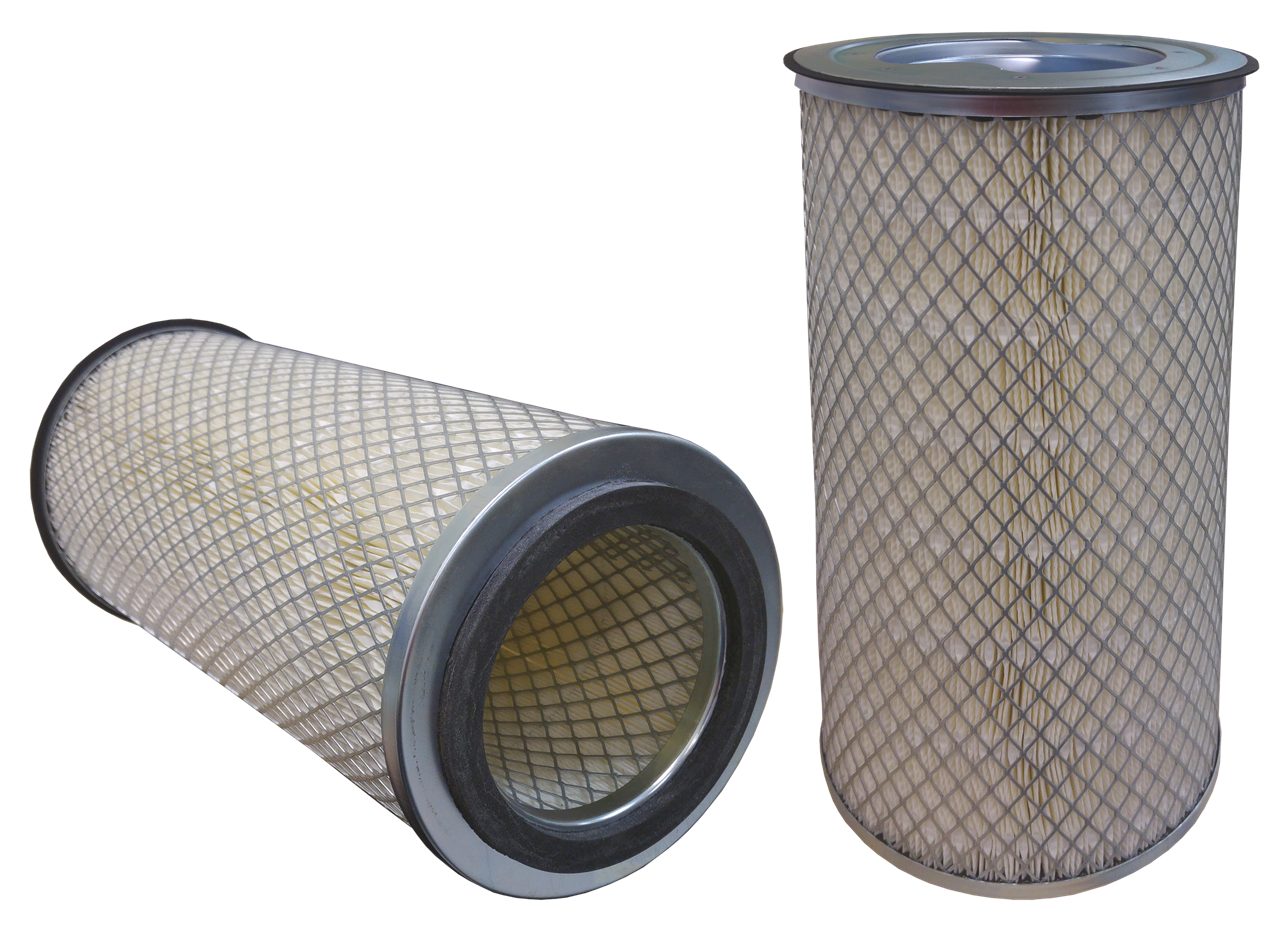

Product Image WA10509_WIX
Product Image WA10509_WIX

Air Filter
WA10509

About this item

  • Height = 392.2 mm; Outside Diameter Top = 176.2 mm; Outside Diameter Bottom = 169.2 mm; Inside Diameter Top = 12.7 mm; Inside Diameter Bottom = 104.9 mm
  • Main application: FORD Cargo, F Series, F-250. MERCEDES-BENZ L

GTIN code:

Product Details

No Data Available

Height 392.2 mm
Inside Diameter Bottom 104.9 mm
Inside Diameter Top 12.7 mm
Outside Diameter Bottom 169.2 mm
Outside Diameter Top 176.2 mm

Filter media material Cellulose
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
F 4000 (Turbo 3.9 8V) Air Filter Cummins 4BTAA - - - 01/96 → 12/08
Model Type F 4000 (Turbo 3.9 8V)
Filter Type Air Filter
Engine Code Cummins 4BTAA
ccm -
kW -
HP -
Year of manufacture 01/96 → 12/08

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Cargo 915 Air Filter CUMMINS 4 BT 3.9 3922 112 152 01/01 →
Model Type Cargo 915
Filter Type Air Filter
Engine Code CUMMINS 4 BT 3.9
ccm 3922
kW 112
HP 152
Year of manufacture 01/01 →

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
4.2 18V Cummins (Mecânico) Air Filter 6.07 TCA 4198 132 180 10/98 → 04/06
Model Type 4.2 18V Cummins (Mecânico)
Filter Type Air Filter
Engine Code 6.07 TCA
ccm 4198
kW 132
HP 180
Year of manufacture 10/98 → 04/06

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
L 912 Air Filter OM 364 - - - 01/88 → 12/96
Model Type L 912
Filter Type Air Filter
Engine Code OM 364
ccm -
kW -
HP -
Year of manufacture 01/88 → 12/96

  • 374 094 70 04
  • A 374 094 70 04

  • 2TA 129 619
  • 2RD 129 620

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WA10509

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
