33972
33972

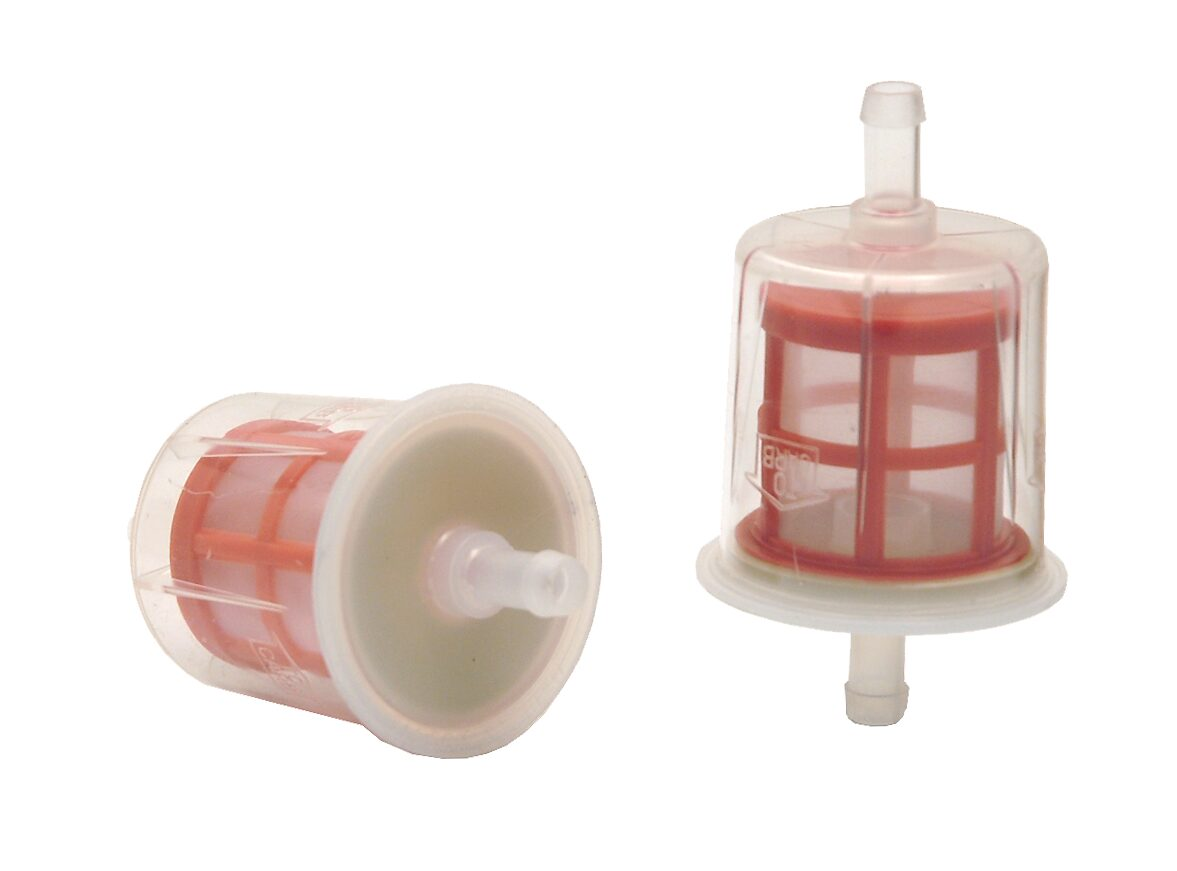

Fuel Filter
33972

About this item

WIX HD Fuel Filters use very good material that works well for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 92,989 mm; Outside Diameter Top = 52,984 mm; Nominal Micron Rating = 50 µm; Inlet Pipe Size = 5/16; Outlet Pipe Size = 5/16; Burst Pressure = 3,999 bar; Flow Type = Full flow; Max. Flow Rate = 3,785 l/min; Media Type = Plastic Mesh

GTIN code: 765809339729

Product Details

No Data Available

Height 93 mm
Inlet Pipe Size 5/16 mm
Outlet Pipe Size 5/16 mm
Outside Diameter Top 53 mm

Filter media material
Nominal Micron Rating 50
Burst pressure 3.998
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 33972

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
