46259
46259

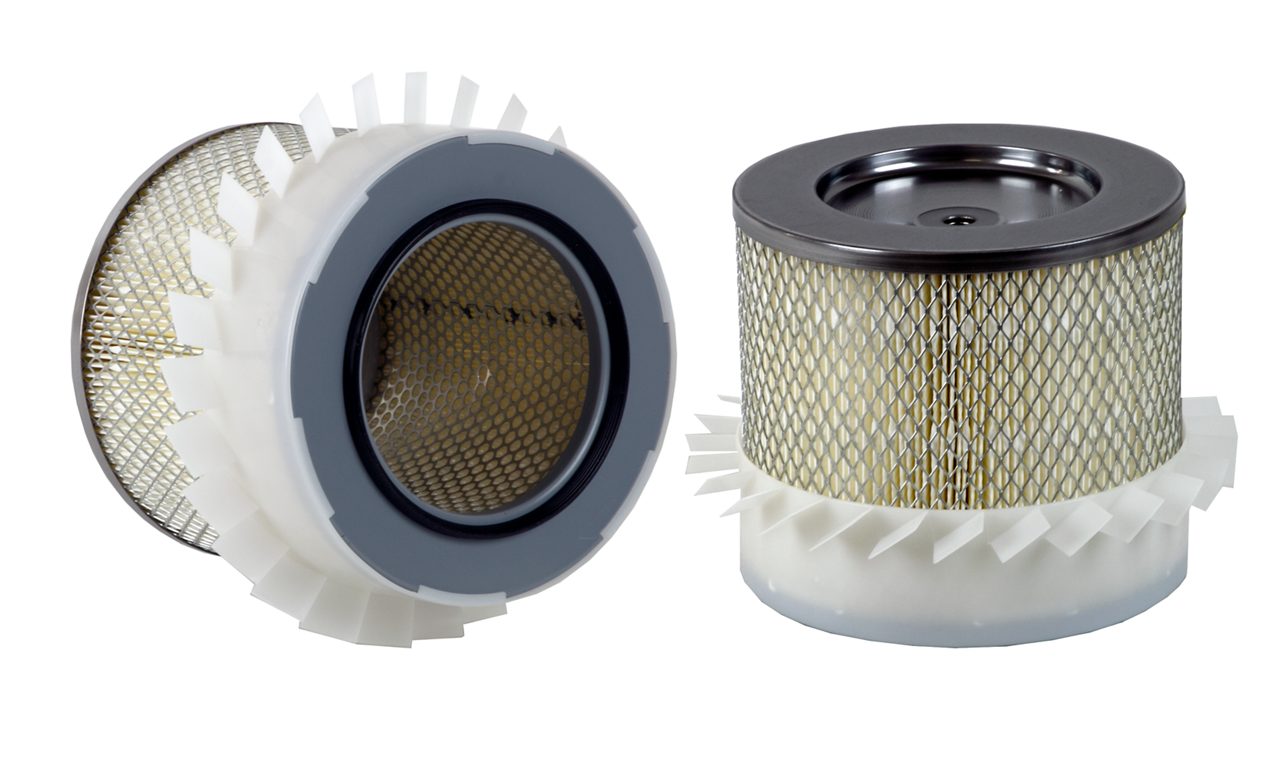

Air Filter
46259

About this item

WIX HD Air Filters feature premium filtration media with a skip a pleat media stabilization and pleat stabilization beads (where applicable). WIX HD Air Filters have a minimum efficiency of 99% contaminant removal (per ISO 5011, based on WIX 46664, WIX 42803, WIX 46761, WIX 46433).

  • Height = 188,1 mm; Outside Diameter Top = 252,5 mm; Outside Diameter Bottom = 201,5 mm; Inside Diameter Top = 125,9 mm; Inside Diameter Bottom = 13,2 mm
  • Main application: Mitsubishi CanterMazda Titan

GTIN code:

Product Details

No Data Available

Height 188.1 mm
Inside Diameter Bottom 13.2 mm
Inside Diameter Top 125.9 mm
Outside Diameter Bottom 201.5 mm
Outside Diameter Top 252.5 mm

Nominal flow rate air 4247.449
Filter media material
Operating temperature min. (°C) -17.777

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3.3 Diesel 60 (FE431) Air Filter 4D301 3298 66 90 01/86 → 11/93
3.3 Diesel 60 (FE431) Air Filter 4D302 3298 66 90 01/86 → 11/93
3.3 Diesel D FE 60 (FE3/FE4) Air Filter 4D31T 3298 63 86 08/86 → 11/93
3.3 Diesel T 60 (FE444) Air Filter 4D310AT 3297 86 117 01/86 → 11/93
Model Type 3.3 Diesel 60 (FE431)
Filter Type Air Filter
Engine Code 4D301
ccm 3298
kW 66
HP 90
Year of manufacture 01/86 → 11/93
Model Type 3.3 Diesel 60 (FE431)
Filter Type Air Filter
Engine Code 4D302
ccm 3298
kW 66
HP 90
Year of manufacture 01/86 → 11/93
Model Type 3.3 Diesel D FE 60 (FE3/FE4)
Filter Type Air Filter
Engine Code 4D31T
ccm 3298
kW 63
HP 86
Year of manufacture 08/86 → 11/93
Model Type 3.3 Diesel T 60 (FE444)
Filter Type Air Filter
Engine Code 4D310AT
ccm 3297
kW 86
HP 117
Year of manufacture 01/86 → 11/93

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 46259

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update:

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
