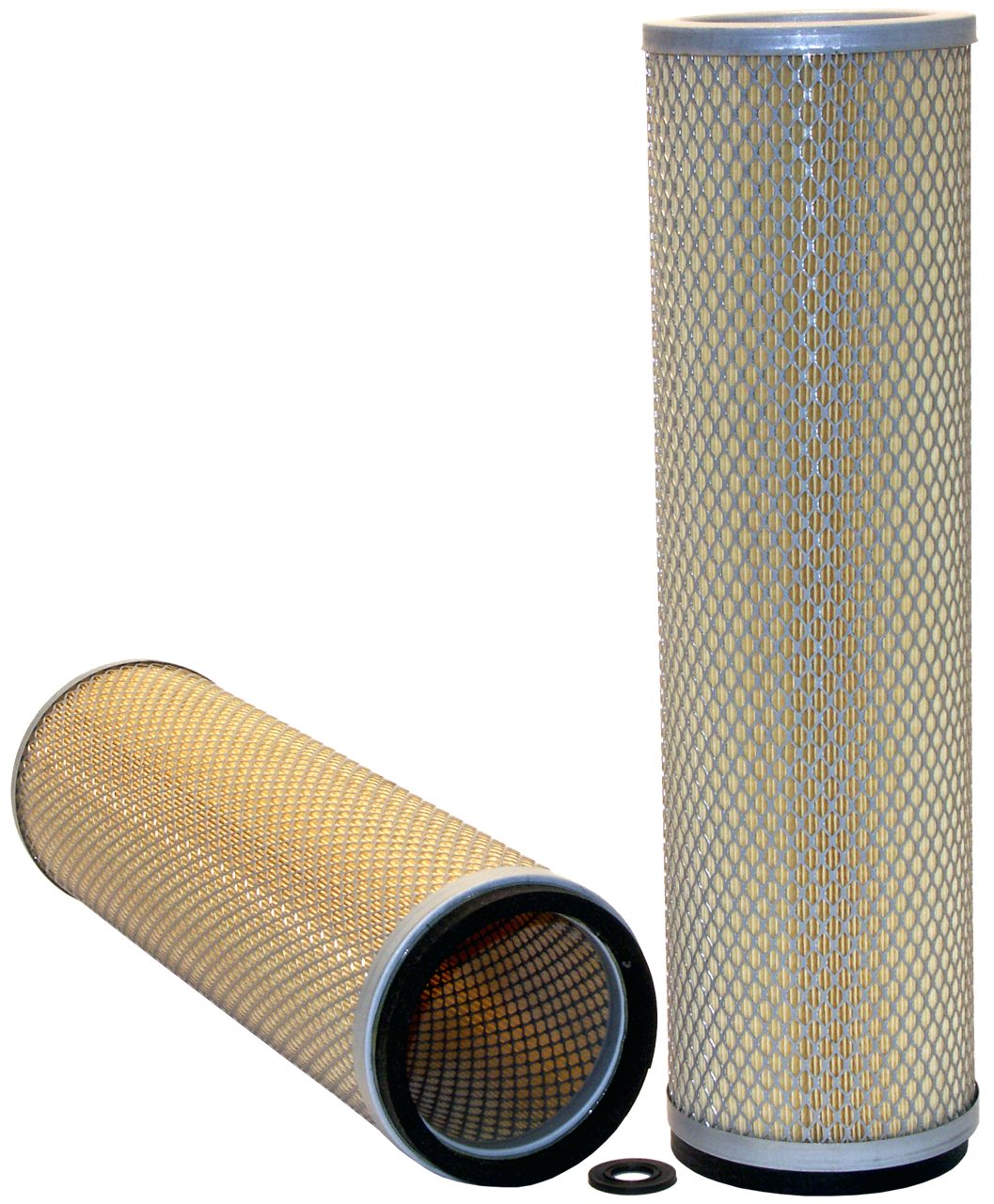

KONICA MINOLTA DIGITAL CAMERA
KONICA MINOLTA DIGITAL CAMERA

Secondary Element
46781

About this item

Since 1939, WIX Filters has been making new things in the filter business. The company makes plenty of filters for cars, diesel engines, farms, and factories. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 417,017 mm; Outside Diameter Top = 117,196 mm; Outside Diameter Bottom = 117,196 mm; Inside Diameter Top = 16,993 mm; Inside Diameter Bottom = 90,297 mm; Media Type = Cellulose

GTIN code: 765809467811

Product Details

No Data Available

Height 417 mm
Inside Diameter Bottom 90.3 mm
Inside Diameter Top 17 mm
Outside Diameter Bottom 117.2 mm
Outside Diameter Top 117.2 mm

Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
PC 240-5K Secondary Element Perkins 1006-6T - - -
Model Type PC 240-5K
Filter Type Secondary Element
Engine Code Perkins 1006-6T
ccm -
kW -
HP -
Year of manufacture

  • 205-01-K1480

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 46781

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
