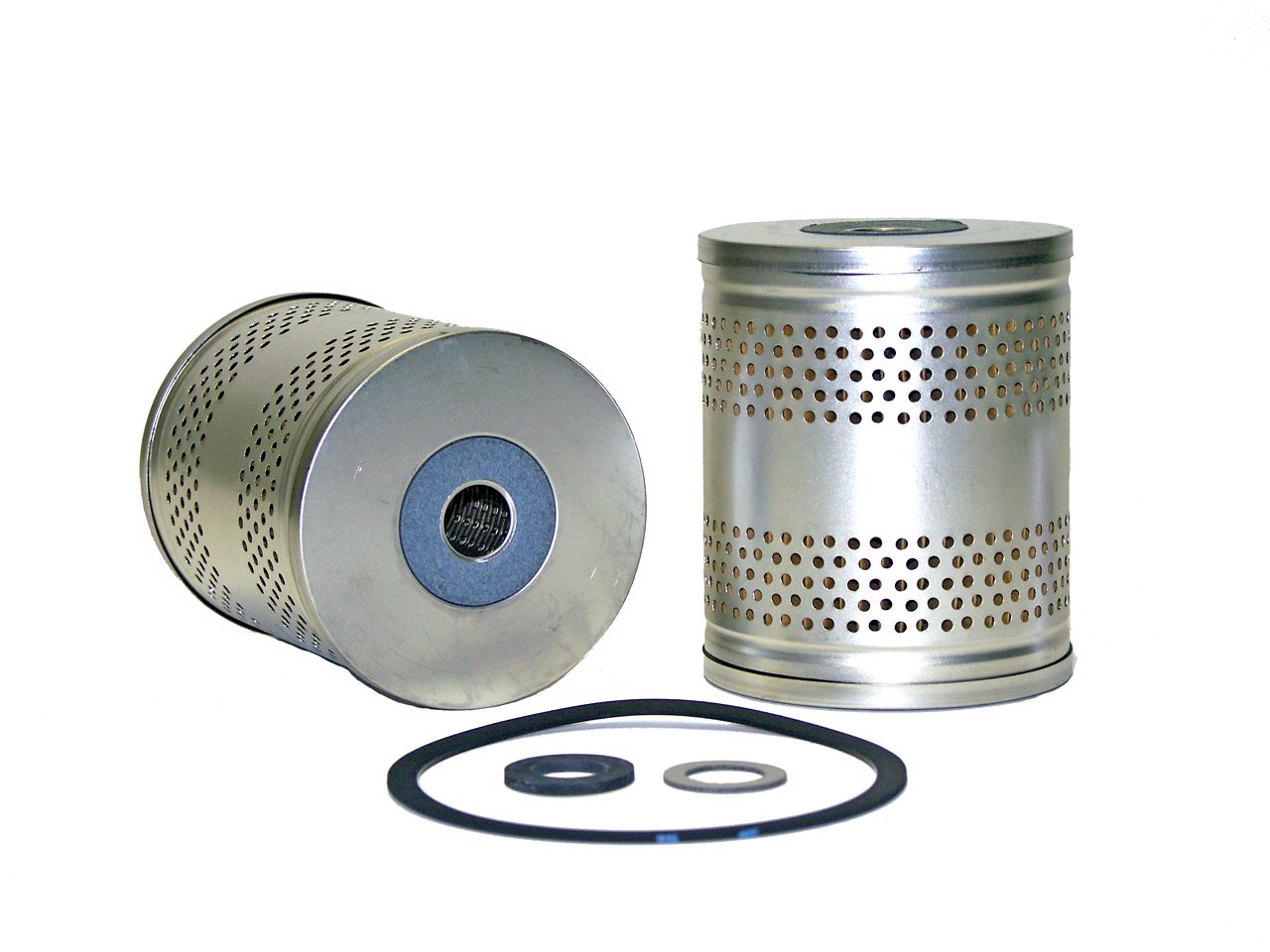

Oil Filter
51004

About this item

WIX HD Oil Filters protect the engine very well with good material that can hold a lot for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 122,149 mm; Outside Diameter Top = 101,194 mm; Outside Diameter Bottom = 101,194 mm; Inside Diameter Top = 19,431 mm; Inside Diameter Bottom = 19,431 mm; Nominal Micron Rating = 25 µm; Flow Type = Full flow; Media Type = Cellulose

GTIN code: 765809510043

Product Details

No Data Available

Height 122.1 mm
Inside Diameter Bottom 19.4 mm
Inside Diameter Top 19.4 mm
Outside Diameter Bottom 101.2 mm
Outside Diameter Top 101.2 mm

Filter media material
Nominal Micron Rating 25
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51004

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
