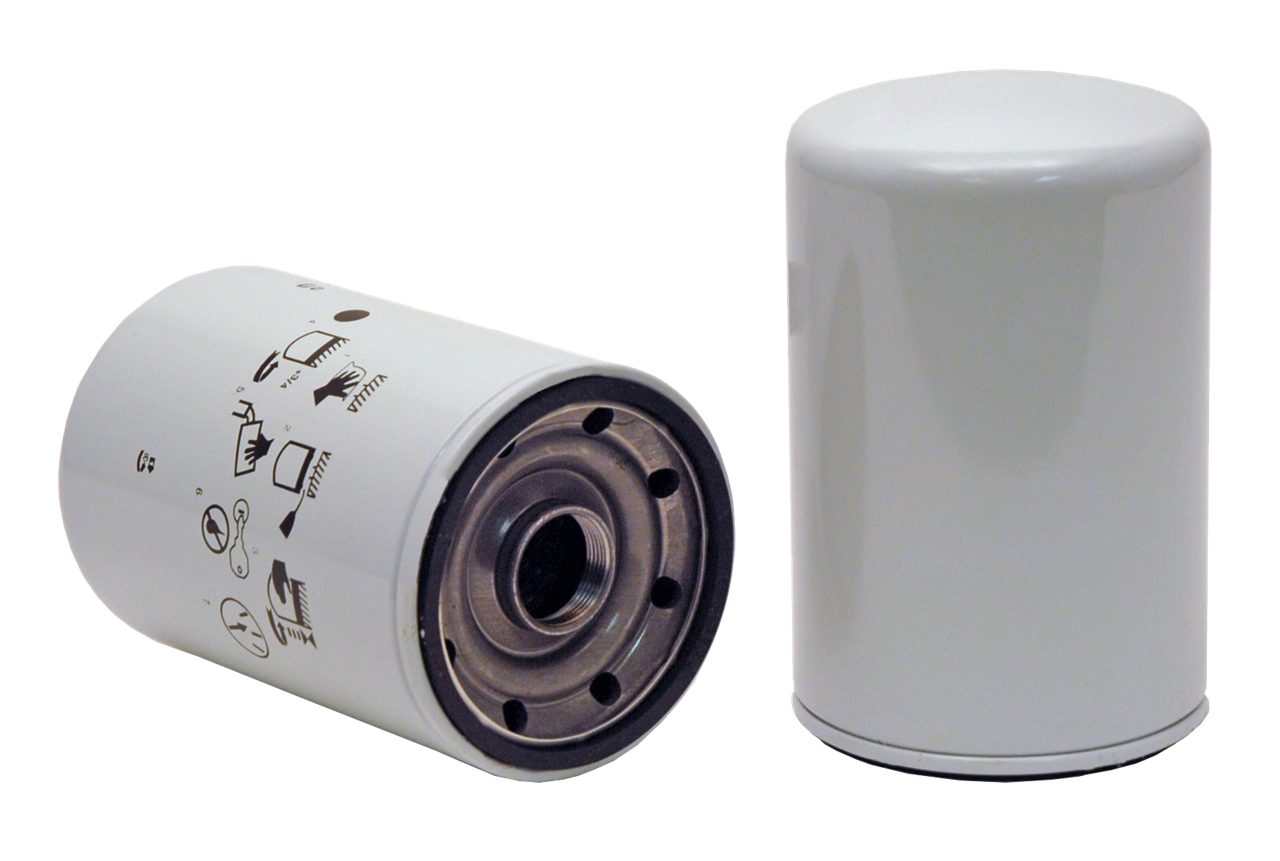

Oil Filter
57256

About this item

WIX HD Oil Filters protect the engine very well with good material that can hold a lot for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 167,386 mm; Outside Diameter Top = 107,594 mm; Thread Size = M30x1.5; Bypass Valve Opening Pressure = 1,586 bar; Flow Type = Full flow; Media Type = Cellulose

GTIN code: 765809572560

Product Details

No Data Available

Height 167.4 mm
Outside Diameter Top 107.6 mm
Thread Size M30x1.5 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 1.585
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Constructor Oil Filter Perk. Eagle 800 12170 195 265 01/89 → 12/90
Model Type Constructor
Filter Type Oil Filter
Engine Code Perk. Eagle 800
ccm 12170
kW 195
HP 265
Year of manufacture 01/89 → 12/90

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2006TWG2 Oil Filter - - -
Model Type 2006TWG2
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3008-17TA Oil Filter - - - 01/97 →
3012-26TA Oil Filter - - - 01/97 →
3012-26TW Oil Filter - - - 01/97 →
Model Type 3008-17TA
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture 01/97 →
Model Type 3012-26TA
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture 01/97 →
Model Type 3012-26TW
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture 01/97 →

  • 1313454

  • 3562229012
  • 3562227012

  • 1449197

  • CV2473

  • CV 2473

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57256

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00

Safety notice: Filters and similar components must only be installed by persons with relevant mechanical knowledge and experience, see IEC 60417 - 6183
