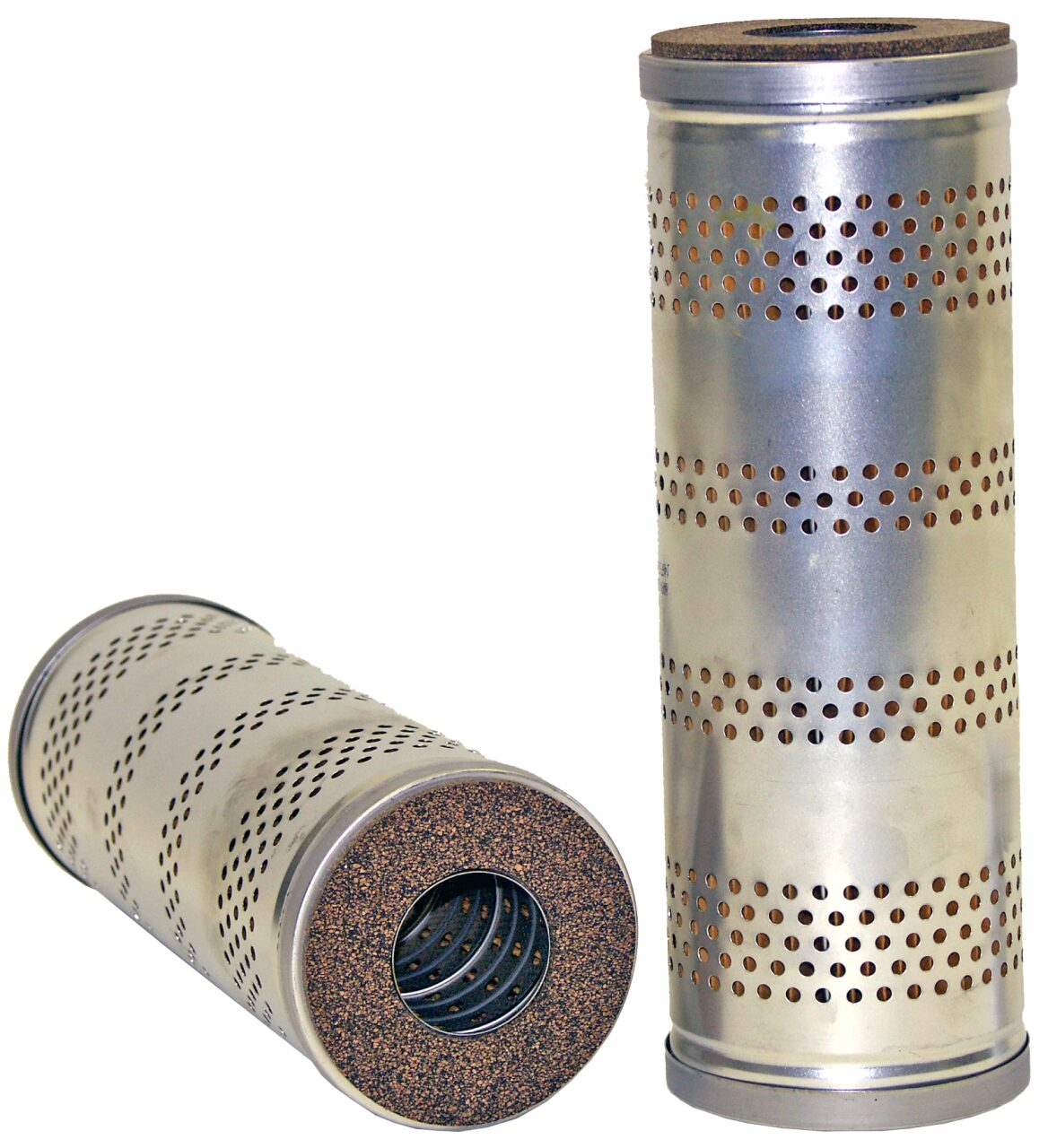

Oil Filter
51165

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 228,6 mm; Outside Diameter Top = 78,435 mm; Outside Diameter Bottom = 78,435 mm; Inside Diameter Top = 34,798 mm; Inside Diameter Bottom = 34,798 mm; Nominal Micron Rating = 35 µm; Beta Ratio = 2/20=45/56; Flow Type = Full flow; Media Type = Cell

GTIN code:

Product Details

No Data Available

Height 228.6 mm
Inside Diameter Bottom 34.8 mm
Inside Diameter Top 34.8 mm
Outside Diameter Bottom 78.4 mm
Outside Diameter Top 78.4 mm

Filter media material
Beta Ratio 2/20=45/56
Nominal Micron Rating 35
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
594 G Hydraulics filter - - -
594 H Hydraulics filter D353 - - -
Model Type 594 G
Filter Type Hydraulics filter
Engine Code
ccm -
kW -
HP -
Year of manufacture
Model Type 594 H
Filter Type Hydraulics filter
Engine Code D353
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
D5 M (3CR1->, 3DR1->, 4BR1->, 6GN1->) Hydraulics filter Cat 3116 - - -
D5 M LGP (3CR1->, 4BR1->, 6GN1->, 4JS1->, 5FS1->, 5ES1->, 6AS1->) Hydraulics filter Cat 3116 DIT - 82 112
D5 M LGP XL Serie Hydraulics filter Cat 3116 - - -
Model Type D5 M (3CR1->, 3DR1->, 4BR1->, 6GN1->)
Filter Type Hydraulics filter
Engine Code Cat 3116
ccm -
kW -
HP -
Year of manufacture
Model Type D5 M LGP (3CR1->, 4BR1->, 6GN1->, 4JS1->, 5FS1->, 5ES1->, 6AS1->)
Filter Type Hydraulics filter
Engine Code Cat 3116 DIT
ccm -
kW 82
HP 112
Year of manufacture
Model Type D5 M LGP XL Serie
Filter Type Hydraulics filter
Engine Code Cat 3116
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
D9 H (90V1->) Hydraulics filter Cat D353 - - -
Model Type D9 H (90V1->)
Filter Type Hydraulics filter
Engine Code Cat D353
ccm -
kW -
HP -
Year of manufacture

  • P550165
  • 6B-0907
  • 9B-1318
  • 9F-6742
  • 1R-0729
  • 8B-5755
  • 9B-1319
  • 9H-1318
  • 1S-9150
  • 8H-0847
  • 3I-1153
  • 4A-0332
  • 7B-3000
  • 7B-7775
  • 8B-2374
  • 9B-2950

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51165

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
