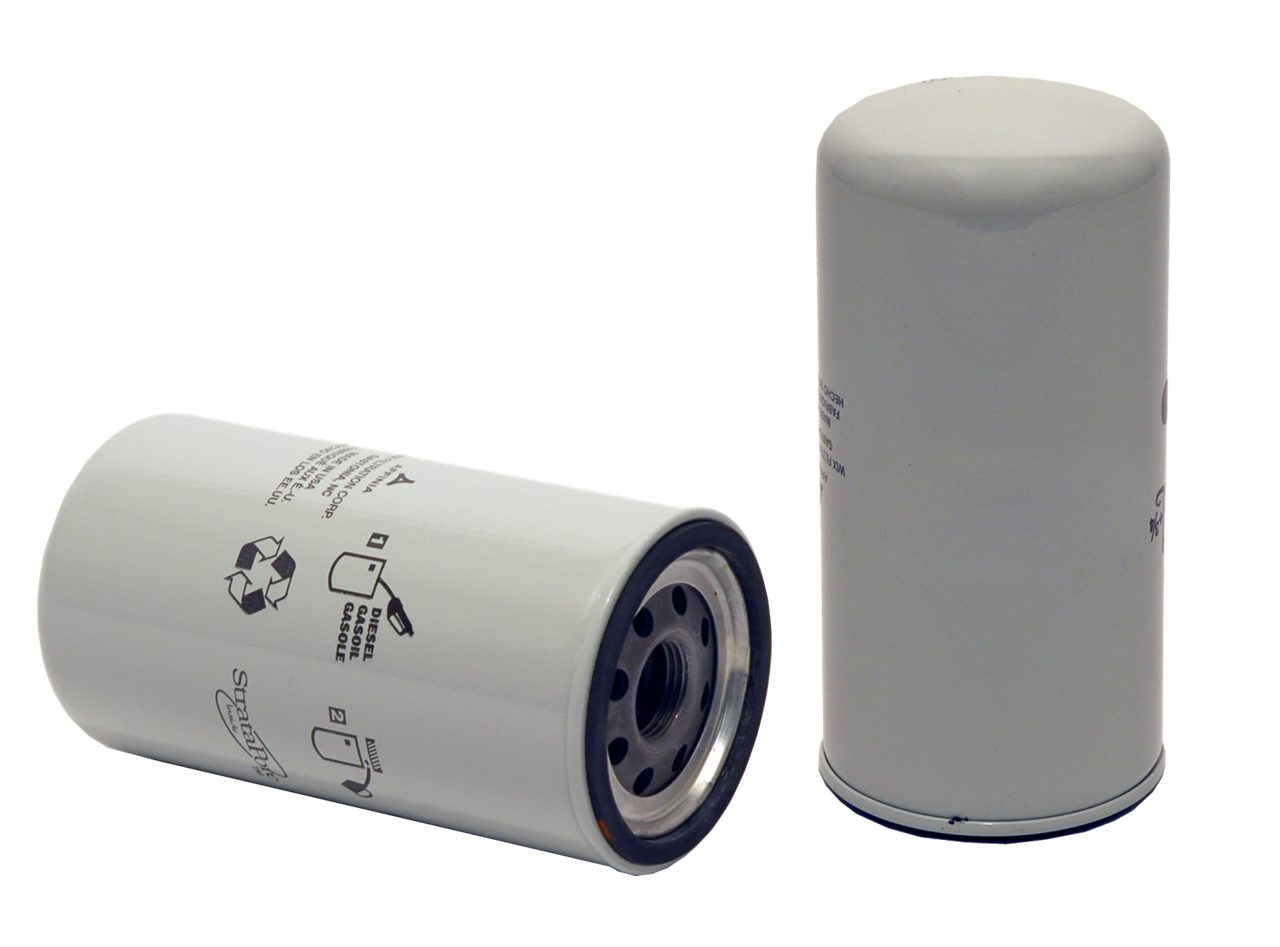

Fuel Filter
33673
New

About this item

WIX HD Fuel Filters use very good material that works well for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 150.114 mm; Outside Diameter Top = 77.47 mm; Nominal Micron Rating = 2 µm; Thread Size = 7/8-14; Beta Ratio = 10/75=5/10; Burst Pressure = 13.996 bar; Flow Type = Full flow; Max. Flow Rate = 3.785 l/min; Operating Temperature Max. = 49.506 °C; Op

GTIN code:

Product Details

No Data Available

Height 150.1 mm
Outside Diameter Top 77.5 mm
Thread Size 7/8-14 mm

Filter media material
Beta Ratio 10/75=5/10
Nominal Micron Rating 2
Burst pressure 13.996
Operating temperature min. (°C) 49.506
Operating temperature max. (°C) -41.543
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 33673

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
