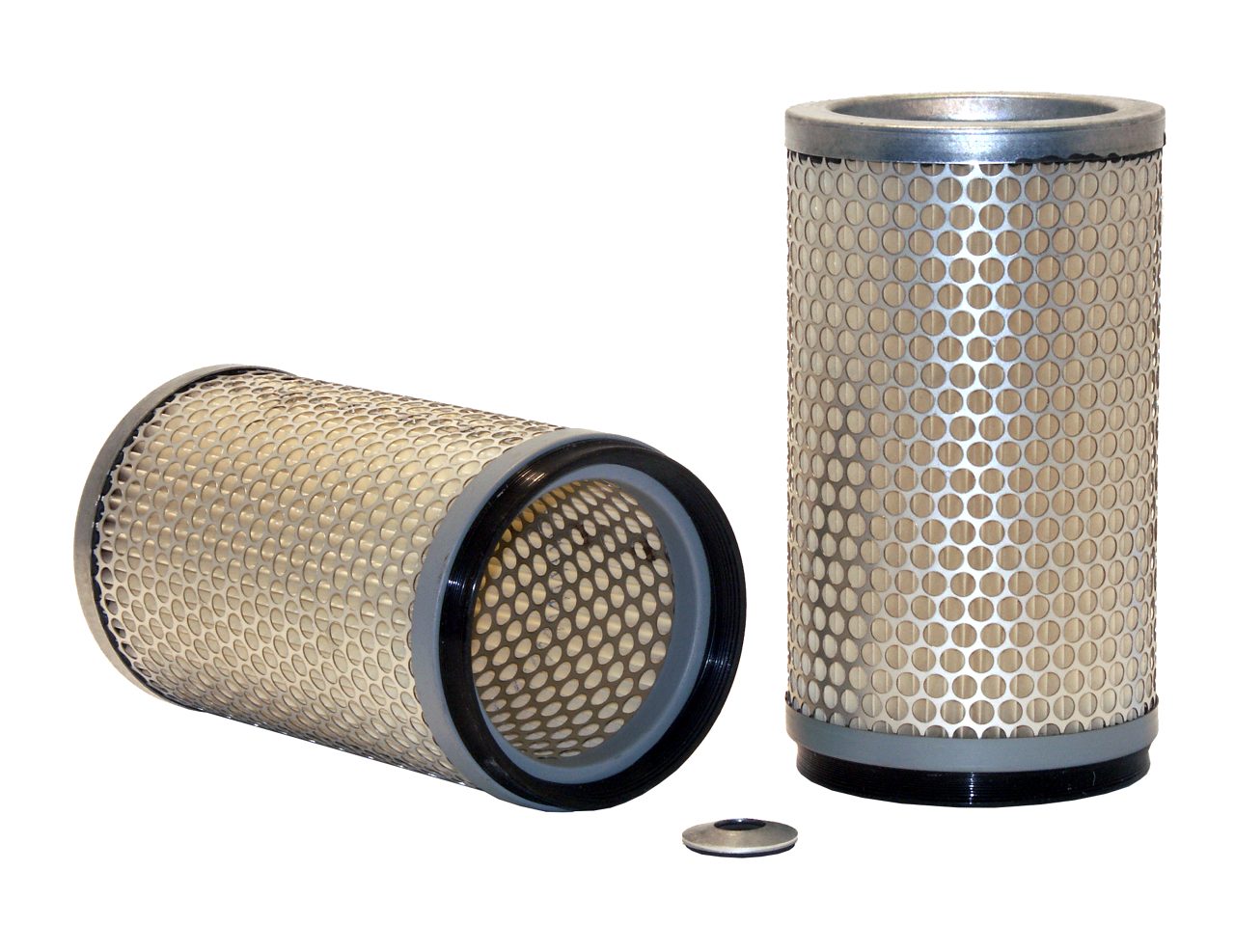

Secondary Element
42744

About this item

Since 1939, WIX Filters has been making new things in the filter business. The company makes plenty of filters for cars, diesel engines, farms, and factories. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 179.375 mm; Outside Diameter Top = 100.787 mm; Outside Diameter Bottom = 100.787 mm; Inside Diameter Top = 15.875 mm; Inside Diameter Bottom = 84.912 mm; Volume Flow Rate = 1,415.816 l/min; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 179.4 mm
Inside Diameter Bottom 84.9 mm
Inside Diameter Top 15.9 mm
Outside Diameter Bottom 100.8 mm
Outside Diameter Top 100.8 mm

Nominal flow rate air 22441.55
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
M 7030 SU / SUDT Secondary Element Kubota V4000-3A-1 3983 50 68 01/89 →
Model Type M 7030 SU / SUDT
Filter Type Secondary Element
Engine Code Kubota V4000-3A-1
ccm 3983
kW 50
HP 68
Year of manufacture 01/89 →

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
M 4030 / DT Secondary Element Kubota S2602-DI-A 2231 36 48 01/86 → 12/89
M 4030 SU / TF
Secondary Element Kubota F2402-DI-A 2231 38 51 01/88 → 12/98
M 5030 /DTL/F/L/MDT/MDTL/MF/SU/SUMDT/V Secondary Element Kubota S2802-DI-A 2791 40 55 01/86 → 12/96
M 6030 Secondary Element Kubota D3200-1A 3219 49 66 01/86 → 12/98
M 6030 DT Secondary Element Kubota D3200-2A 3219 45 62 01/86 → 12/98
M 6030 DT Narrow / DTNB Secondary Element Kubota D3200-2A 3219 45 62 01/87 →
M 7030 DT (4WD)
Secondary Element Kubota V4000-3A 3983 54 72 01/86 → 12/98
M 7030 MDT / DT-NB Secondary Element Kubota V4000 3983 54 72 01/86 → 12/98
M 7030 Narrow Secondary Element Kubota V4000-4A 3983 50 68 01/86 → 12/98
Model Type M 4030 / DT
Filter Type Secondary Element
Engine Code Kubota S2602-DI-A
ccm 2231
kW 36
HP 48
Year of manufacture 01/86 → 12/89
Model Type M 4030 SU / TF
Filter Type Secondary Element
Engine Code Kubota F2402-DI-A
ccm 2231
kW 38
HP 51
Year of manufacture 01/88 → 12/98
Model Type M 5030 /DTL/F/L/MDT/MDTL/MF/SU/SUMDT/V
Filter Type Secondary Element
Engine Code Kubota S2802-DI-A
ccm 2791
kW 40
HP 55
Year of manufacture 01/86 → 12/96
Model Type M 6030
Filter Type Secondary Element
Engine Code Kubota D3200-1A
ccm 3219
kW 49
HP 66
Year of manufacture 01/86 → 12/98
Model Type M 6030 DT
Filter Type Secondary Element
Engine Code Kubota D3200-2A
ccm 3219
kW 45
HP 62
Year of manufacture 01/86 → 12/98
Model Type M 6030 DT Narrow / DTNB
Filter Type Secondary Element
Engine Code Kubota D3200-2A
ccm 3219
kW 45
HP 62
Year of manufacture 01/87 →
Model Type M 7030 DT (4WD)
Filter Type Secondary Element
Engine Code Kubota V4000-3A
ccm 3983
kW 54
HP 72
Year of manufacture 01/86 → 12/98
Model Type M 7030 MDT / DT-NB
Filter Type Secondary Element
Engine Code Kubota V4000
ccm 3983
kW 54
HP 72
Year of manufacture 01/86 → 12/98
Model Type M 7030 Narrow
Filter Type Secondary Element
Engine Code Kubota V4000-4A
ccm 3983
kW 50
HP 68
Year of manufacture 01/86 → 12/98

  • 17301-11180

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 42744

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
