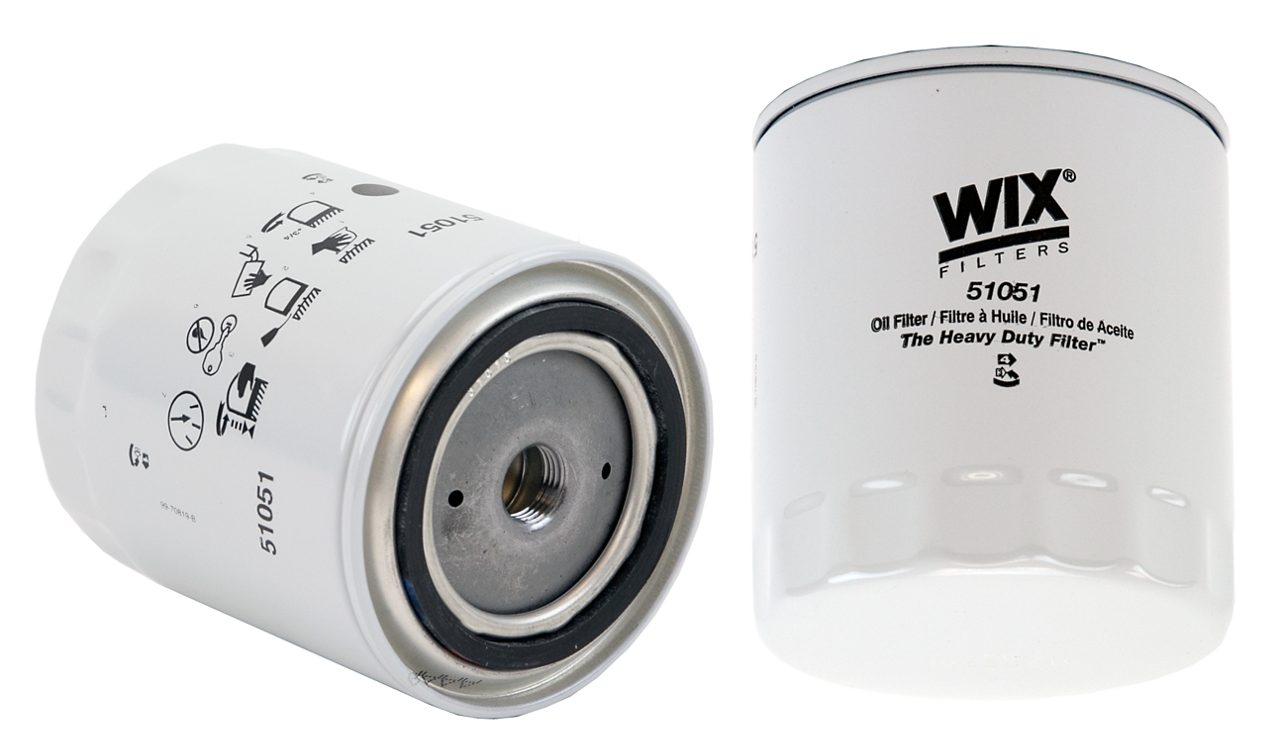

Oil Filter
51051

About this item

WIX HD Oil Filters protect the engine very well with good material that can hold a lot for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 110.185 mm; Outside Diameter Top = 92.964 mm; Nominal Micron Rating = 10 µm; Thread Size = 5/8-18; Burst Pressure = 24.132 bar; Flow Type = By-pass flow; Max. Flow Rate = 3.785 l/min; Media Type = Enhanced Cellulose

GTIN code:

Product Details

No Data Available

Height 110.2 mm
Outside Diameter Top 93 mm
Thread Size 5/8-18 mm

Max. Flow Rate (l/min) 3.785
Filter media material
Nominal Micron Rating 10
Burst pressure 24.131
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51051

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
