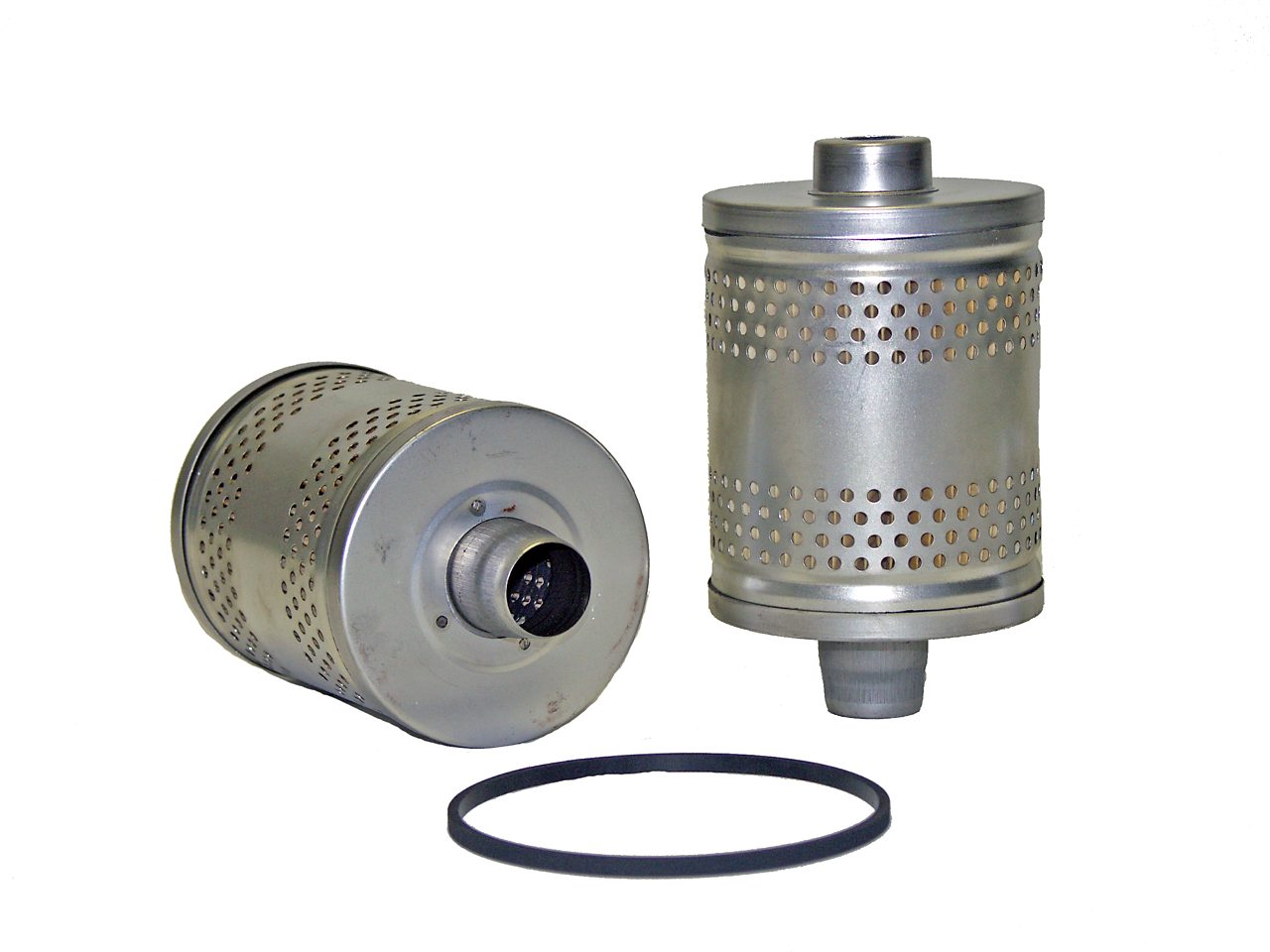

Oil Filter
51172

About this item

WIX HD Oil Filters protect the engine very well with good material that can hold a lot for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 142.088 mm; Outside Diameter Top = 83.337 mm; Outside Diameter Bottom = 83.337 mm; Inside Diameter Top = 12.192 mm; Inside Diameter Bottom = 22.225 mm; Nominal Micron Rating = 19 µm; Flow Type = By-pass flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 142.1 mm
Inside Diameter Bottom 22.2 mm
Inside Diameter Top 12.2 mm
Outside Diameter Bottom 83.3 mm
Outside Diameter Top 83.3 mm

Filter media material
Nominal Micron Rating 19
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51172

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
