Hydraulics
51436
New

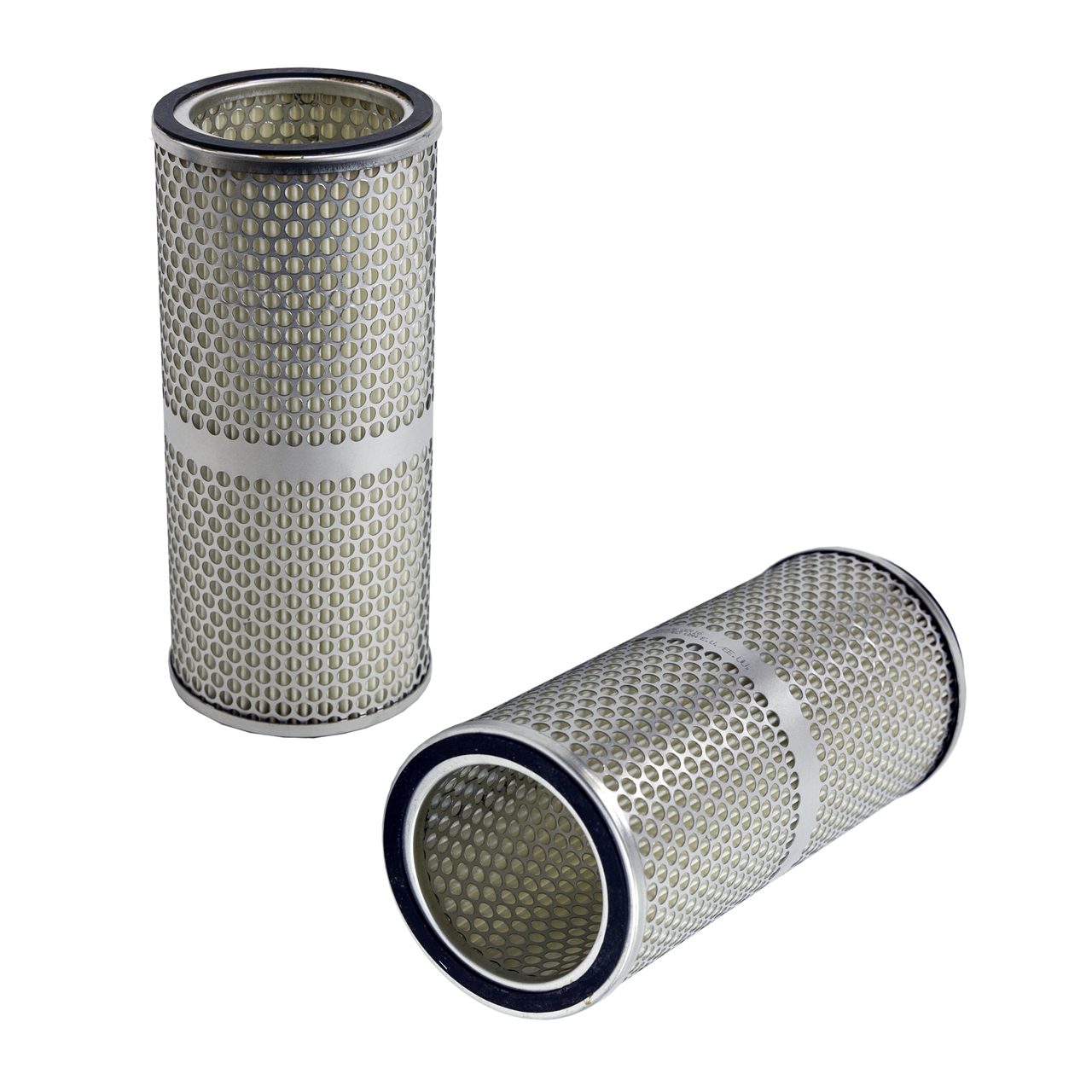

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 242.875 mm; Outside Diameter Top = 107.95 mm; Outside Diameter Bottom = 107.95 mm; Inside Diameter Top = 79.248 mm; Inside Diameter Bottom = 79.248 mm; Nominal Micron Rating = 61 µm; Flow Type = Full flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 242.9 mm
Inside Diameter Bottom 79.2 mm
Inside Diameter Top 79.2 mm
Outside Diameter Bottom 108 mm
Outside Diameter Top 108 mm

Filter media material
Nominal Micron Rating 61
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51436

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
