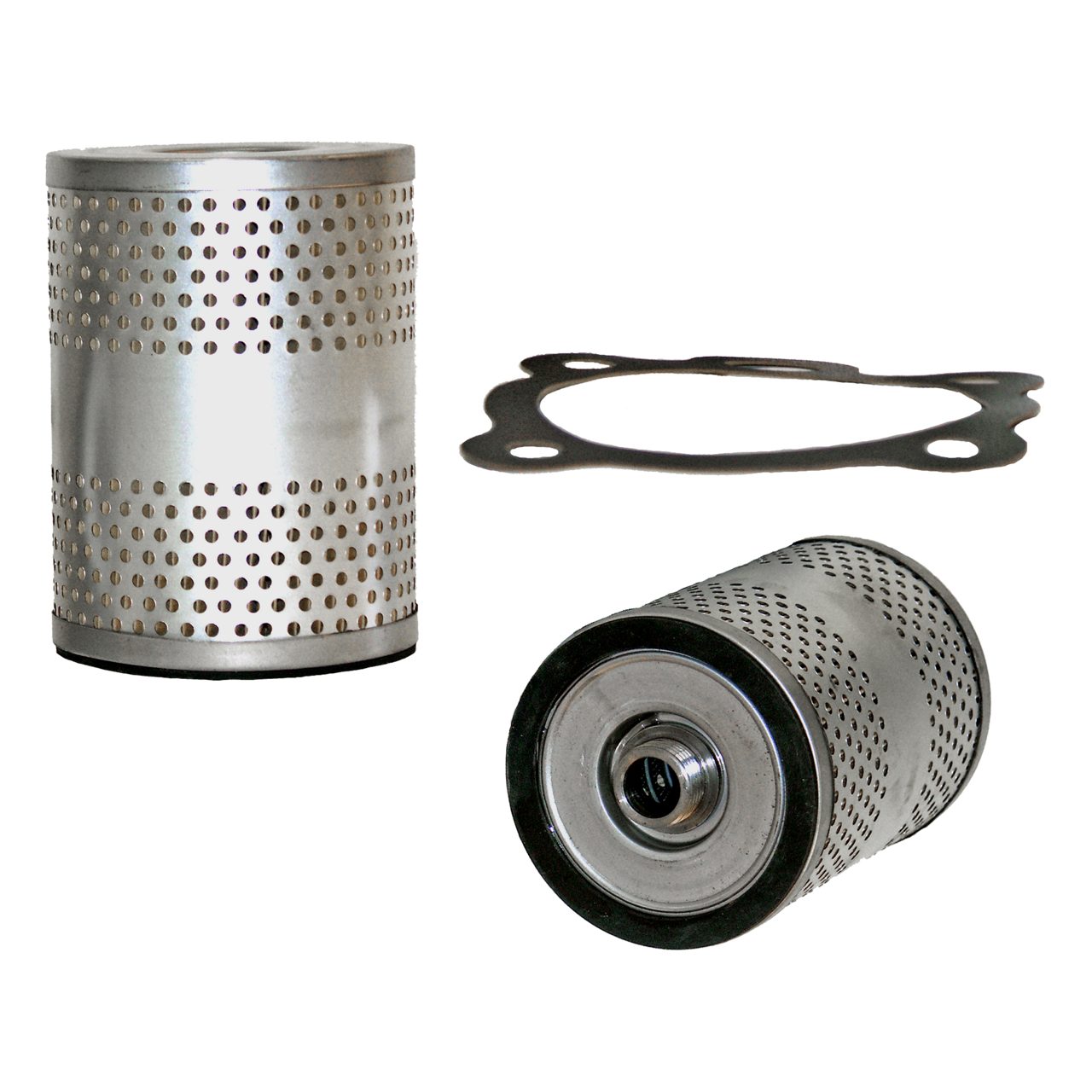

Hydraulic Transmission Filter
51569

About this item

WIX HD Automatic Transmission Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Transmission Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 126.238 mm; Outside Diameter Top = 88.392 mm; Outside Diameter Bottom = 88.392 mm; Inside Diameter Bottom = 15.875 mm; Nominal Micron Rating = 10 µm; Thread Size = 7/8-14; Flow Type = Full flow; Media Type = Enhanced Cellulose

GTIN code:

Product Details

No Data Available

Height 126.2 mm
Inside Diameter Bottom 15.9 mm
Outside Diameter Bottom 88.4 mm
Outside Diameter Top 88.4 mm
Thread Size 7/8-14 mm

Filter media material
Nominal Micron Rating 10
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51569

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
