Hydraulics

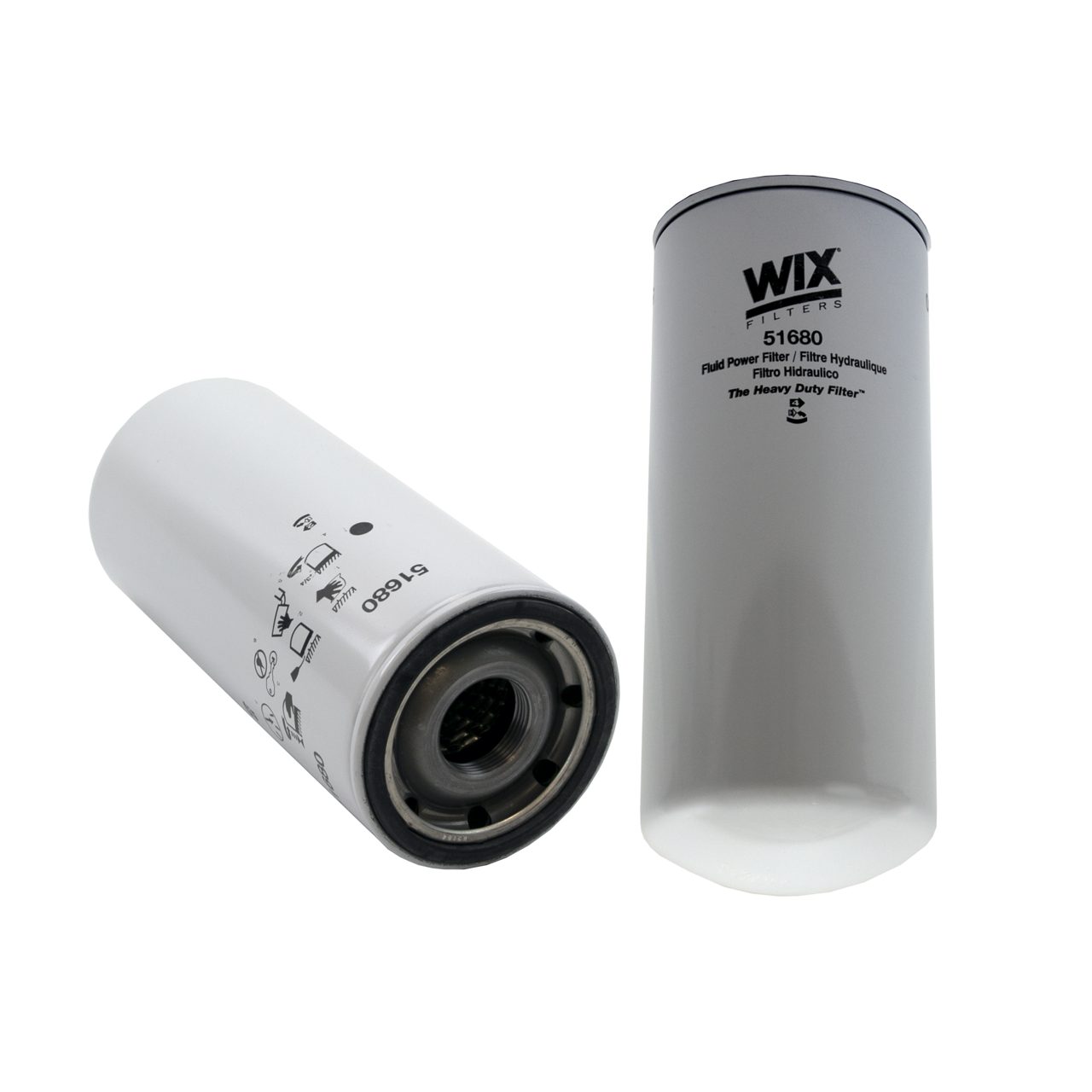

51680

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 288.163 mm; Outside Diameter Top = 118.567 mm; Nominal Micron Rating = 9 µm; Thread Size = 1 1/4-11 BSP; Beta Ratio = 2/20=2/15; Burst Pressure = 25.855 bar; Flow Type = Full flow; Min. Flow Rate = 113.56 l/min; Max. Flow Rate = 105.99 l/min; Med

GTIN code: 765809516809

Product Details

No Data Available

Height 288.2 mm
Outside Diameter Top 118.6 mm
Thread Size 1 1/4-11 BSP mm

Max. Flow Rate (l/min) 105.989
Min. Flow Rate 113.56
Filter media material
Beta Ratio 2/20=2/15
Nominal Micron Rating 9
Burst pressure 25.855
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51680

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
