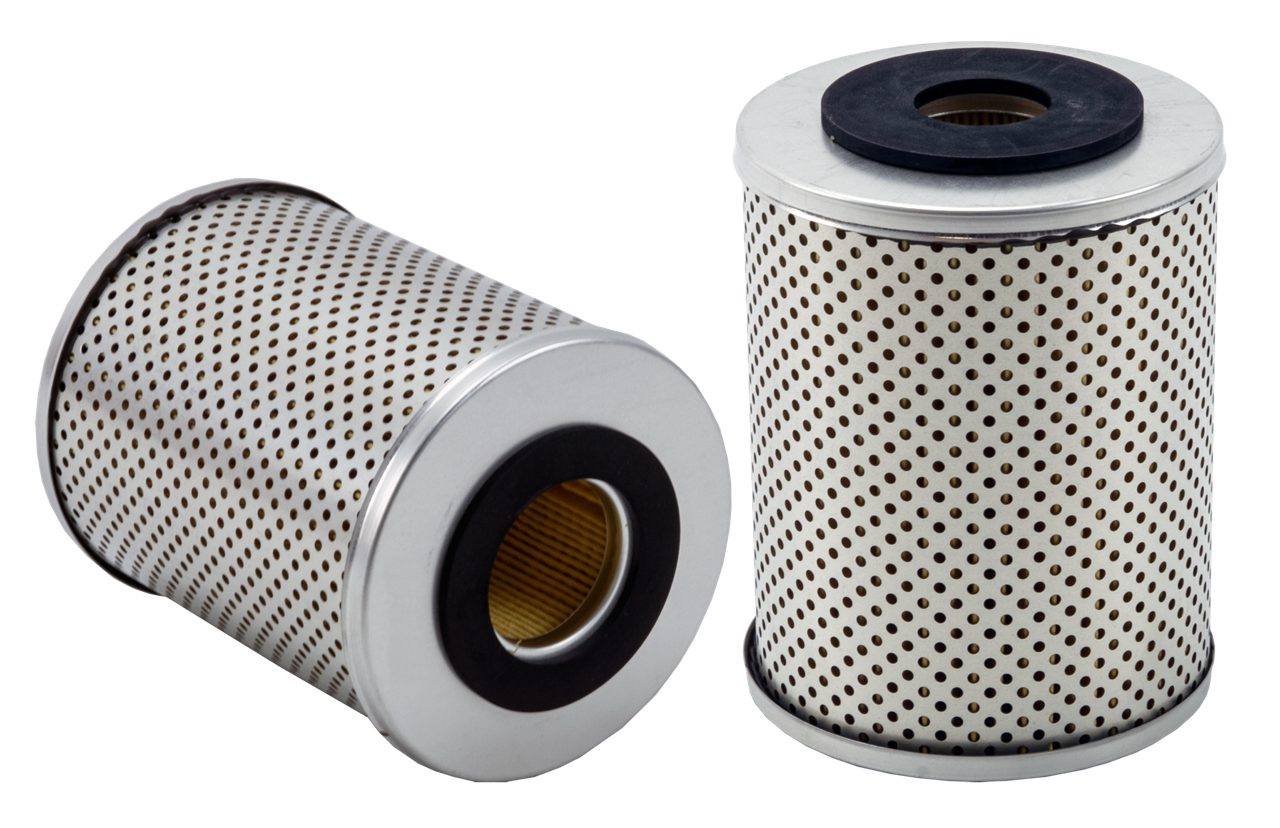

Hydraulic Steering Filter
57196
New

About this item

WIX HD Power Steering Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Power Steering Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 128.778 mm; Outside Diameter Top = 101.346 mm; Outside Diameter Bottom = 101.346 mm; Inside Diameter Top = 27.94 mm; Inside Diameter Bottom = 33.274 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 2/20/75=22/4; Flow Type = Full flow; Max. Flow Ra

GTIN code:

Product Details

No Data Available

Height 128.8 mm
Inside Diameter Bottom 33.3 mm
Inside Diameter Top 27.9 mm
Outside Diameter Bottom 101.3 mm
Outside Diameter Top 101.3 mm

Max. Flow Rate (l/min) 71.921
Filter media material
Beta Ratio 2/20/75=22/4
Nominal Micron Rating 10
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No
