Hydraulics

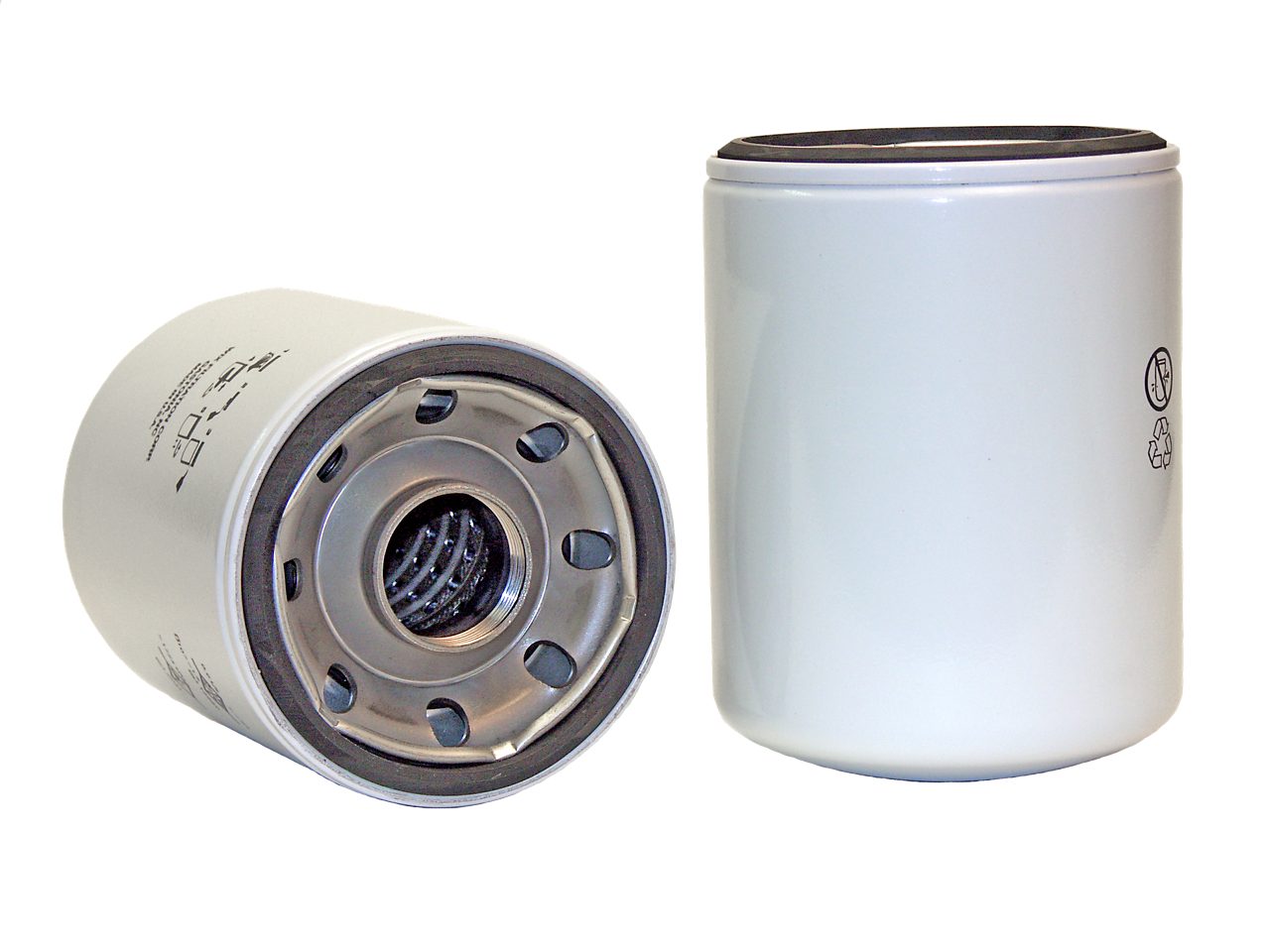

57246

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 159.817 mm; Outside Diameter Top = 118.11 mm; Nominal Micron Rating = 7 µm; Thread Size = 1 1/2-16; Burst Pressure = 24.614 bar; Flow Type = Full flow; Max. Flow Rate = 105.99 l/min; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 159.8 mm
Outside Diameter Top 118.1 mm
Thread Size 1 1/2-16 mm

Max. Flow Rate (l/min) 105.989
Filter media material
Nominal Micron Rating 7
Burst pressure 24.614
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57246

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
