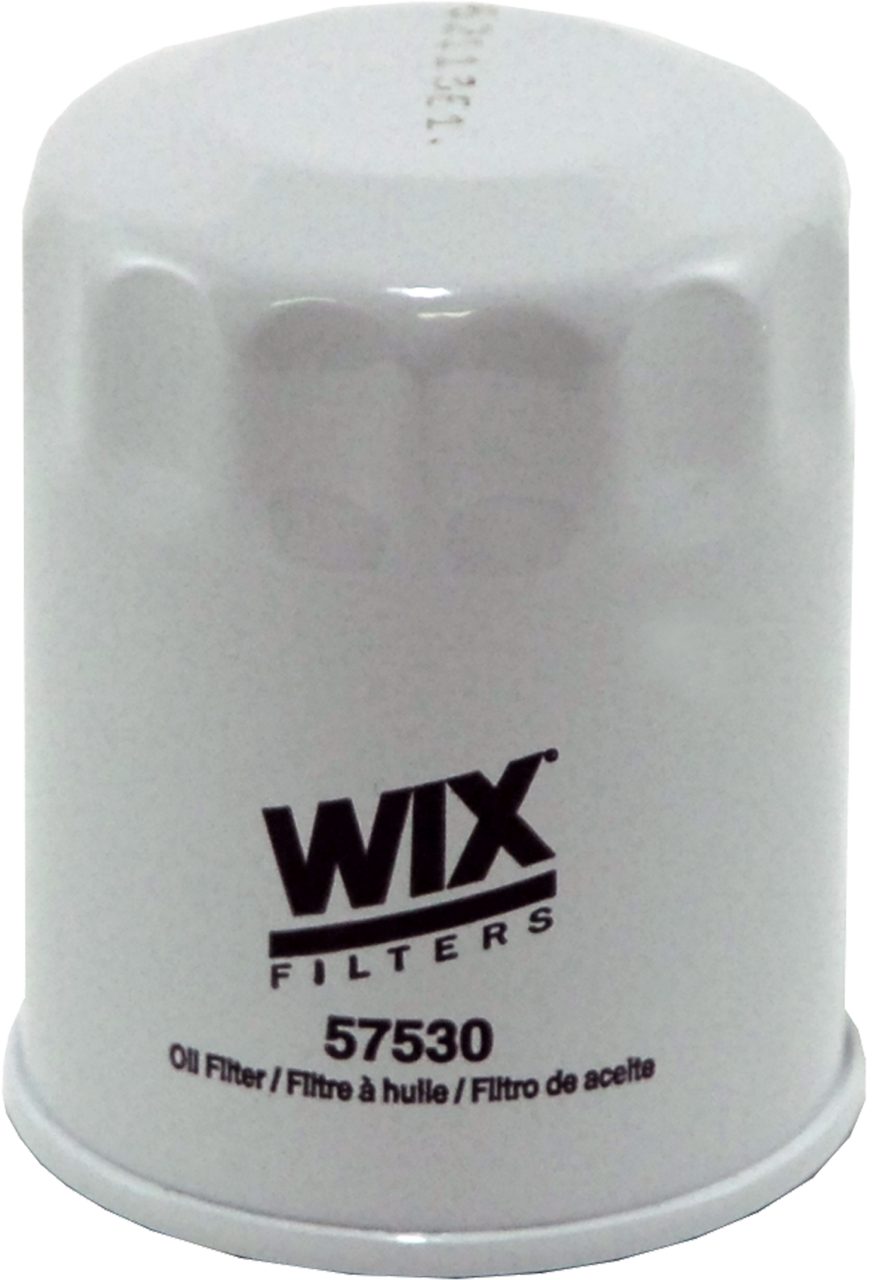

Oil Filter
57530

About this item

Since 1939, WIX Filters has been making new things in the filter business. The company makes plenty of filters for cars, diesel engines, farms, and factories. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 85.268 mm; Outside Diameter Top = 71.628 mm; Nominal Micron Rating = 21 µm; Thread Size = 3/4-16; Anti-drain valve = Yes; Bypass Valve Opening Pressure = 1.31 bar; Beta Ratio = 2/20=6/17; Flow Type = Full flow; Min. Flow Rate = 34.068 l/min; Max.

GTIN code:

Product Details

No Data Available

Height 85.3 mm
Outside Diameter Top 71.6 mm
Thread Size 3/4-16 mm

Max. Flow Rate (l/min) 26.497
Min. Flow Rate 34.068
Filter media material
Beta Ratio 2/20=6/17
Nominal Micron Rating 21
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 1.31
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57530

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
