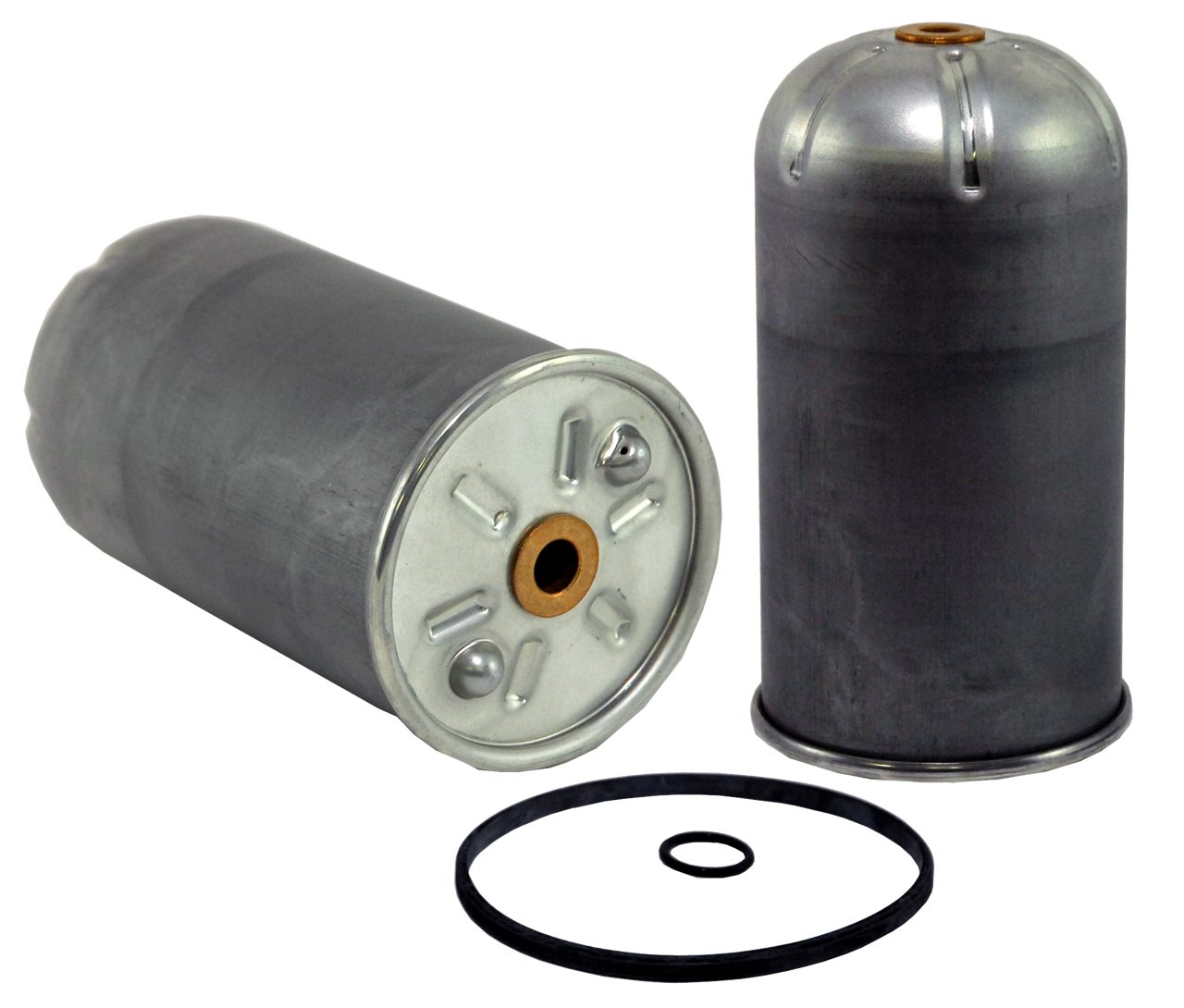

Oil Filter
57703

About this item

WIX HD Oil Filters protect the engine very well with good material that can hold a lot for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 189.001 mm; Outside Diameter Top = 108.991 mm; Inside Diameter Top = 10.033 mm; Inside Diameter Bottom = 12.548 mm; Nominal Micron Rating = 6 µm; Beta Ratio = 2/5=6/12; Burst Pressure = 20.684 bar; Flow Type = By-pass flow

GTIN code:

Product Details

No Data Available

Height 189 mm
Inside Diameter Bottom 12.5 mm
Inside Diameter Top 10 mm
Outside Diameter Top 109 mm

Beta Ratio 2/5=6/12
Nominal Micron Rating 6
Burst pressure 20.684
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57703

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
