Hydraulics

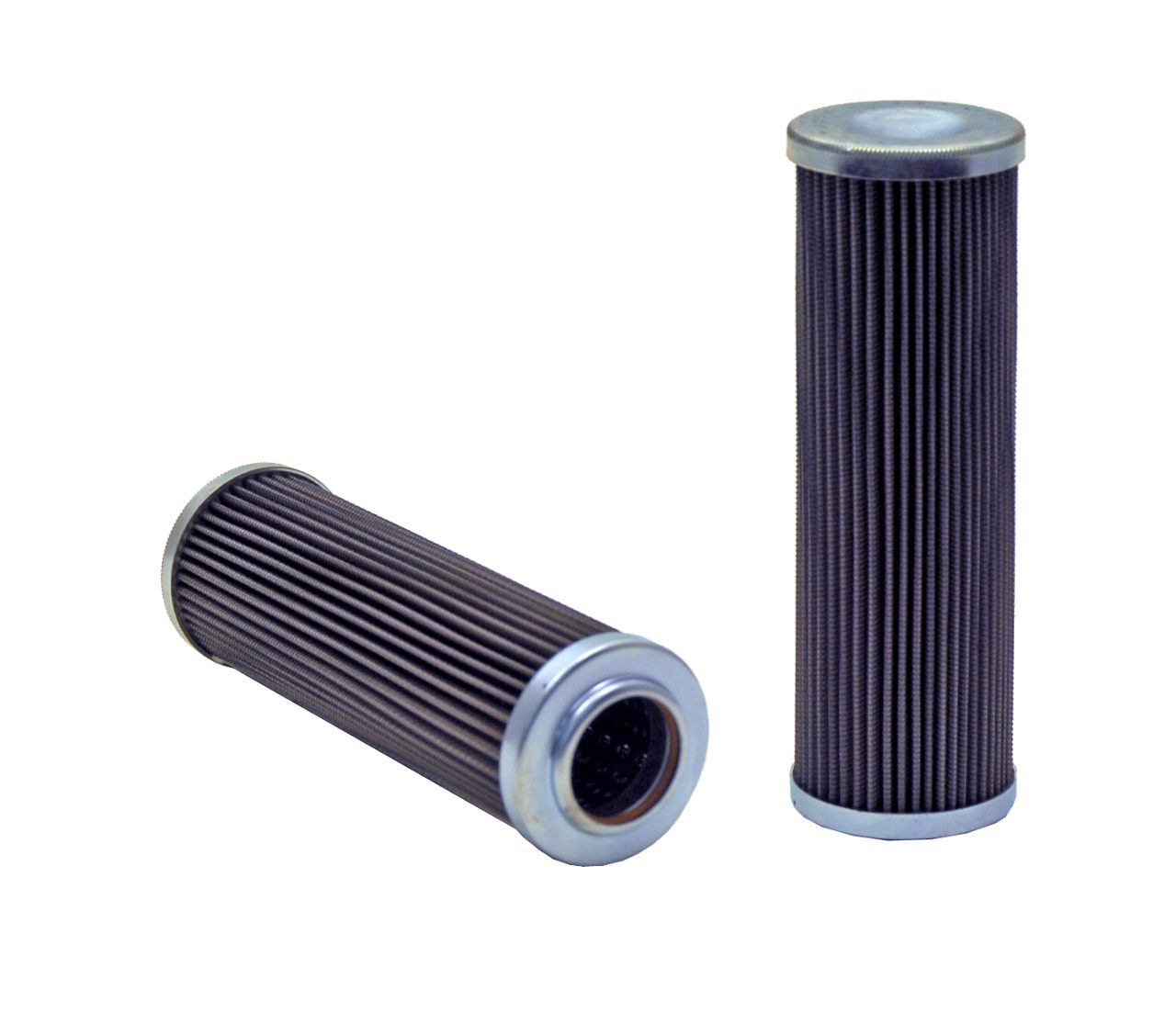

D38B100BV

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 188.011 mm; Outside Diameter Top = 59.995 mm; Outside Diameter Bottom = 59.995 mm; Inside Diameter Top = 34.214 mm; Nominal Micron Rating = 10 µm; Flow Type = Full flow; Flow Direction = Outside-In; Filter Area = 1,509.662 cm2; Operating Temperat
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 188 mm
Inside Diameter Top 34.2 mm
Outside Diameter Bottom 60 mm
Outside Diameter Top 60 mm

Filter media material
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: D38B100BV

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
