Hydraulics

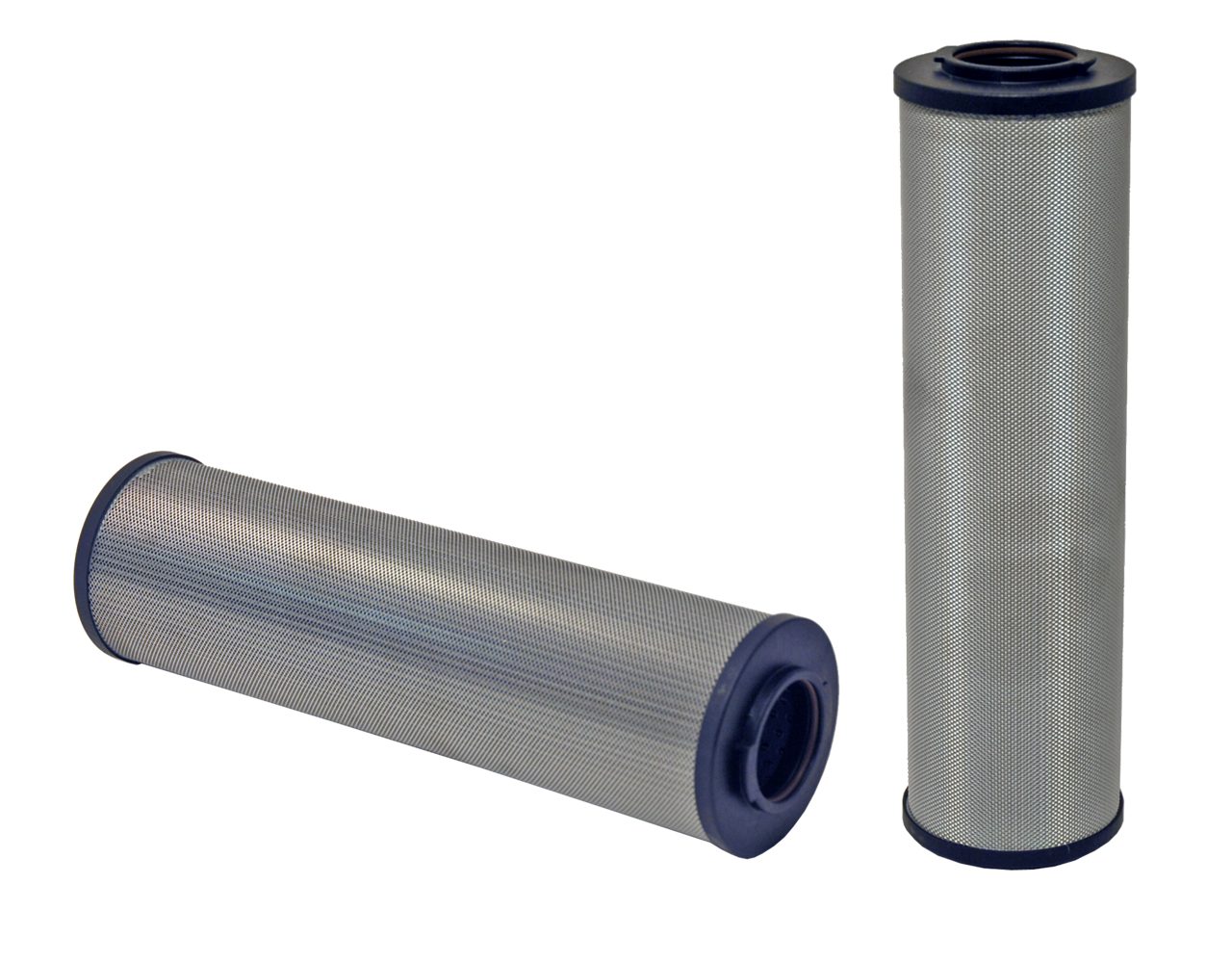

W01AG429

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 334.01 mm; Outside Diameter Top = 94.488 mm; Outside Diameter Bottom = 94.488 mm; Inside Diameter Top = 48.26 mm; Inside Diameter Bottom = 48.26 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 200/9.9; Beta Ratio 2 = 1000/12.4; Flow Type = Full f
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 334 mm
Inside Diameter Bottom 48.3 mm
Inside Diameter Top 48.3 mm
Outside Diameter Bottom 94.5 mm
Outside Diameter Top 94.5 mm

Filter media material
Beta Ratio 200/9.9
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W01AG429

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
