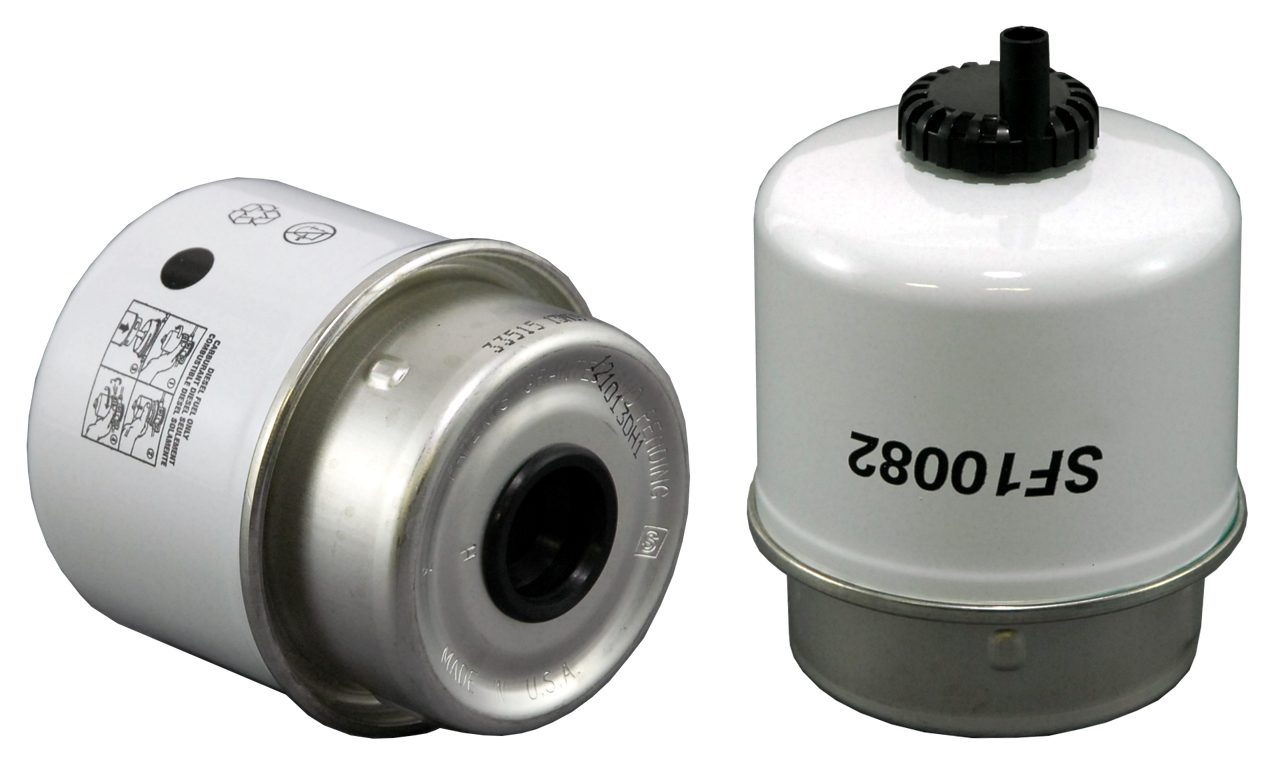

Fuel Filter
WF10082

About this item

WIX HD Fuel Filters use very good material that works well for things like medium and big lorries, farms, building sites, mines, and other machines. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 116.027 mm; Outside Diameter Top = 83.82 mm; Outside Diameter Bottom = 79.578 mm; Inside Diameter Top = 17.678 mm; Nominal Micron Rating = 5 µm; With Water-Drain = Yes; Flow Type = Full flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 116 mm
Inside Diameter Top 17.7 mm
Outside Diameter Bottom 79.6 mm
Outside Diameter Top 83.8 mm

Filter media material
Nominal Micron Rating 5
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3930 Fuel Filter Ford - 37 50 03/90 → 12/02
Model Type 3930
Filter Type Fuel Filter
Engine Code Ford
ccm -
kW 37
HP 50
Year of manufacture 03/90 → 12/02

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
LS180 Fuel Filter - 50 68 09/99 →
LS190 Fuel Filter - 62 84
Model Type LS180
Filter Type Fuel Filter
Engine Code
ccm -
kW 50
HP 68
Year of manufacture 09/99 →
Model Type LS190
Filter Type Fuel Filter
Engine Code
ccm -
kW 62
HP 84
Year of manufacture

  • 87801434

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF10082

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
