WF10226
WF10226

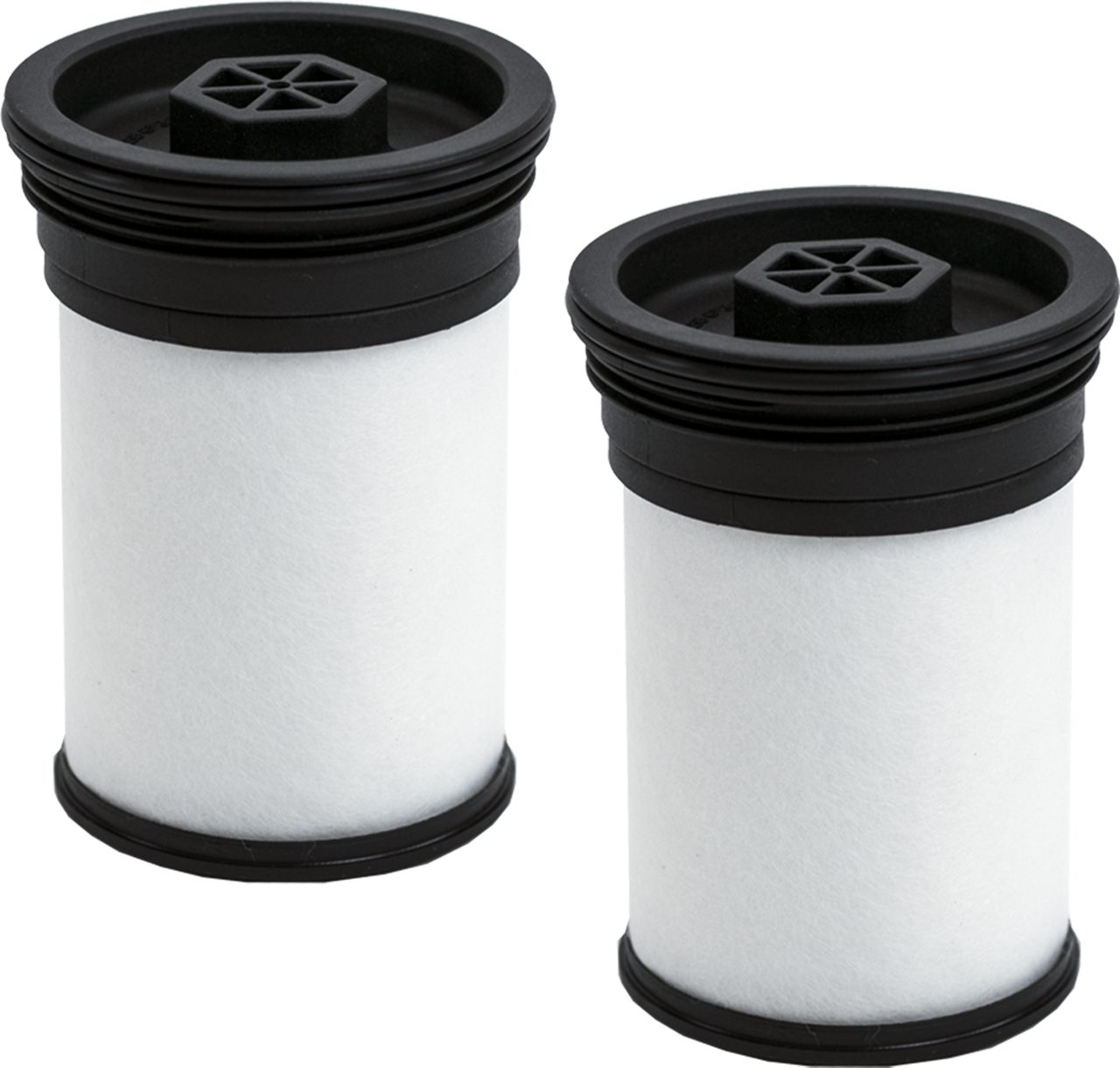

Fuel Filter
WF10226

About this item

WIX Fuel Filters protect the engine well when driving normal or very hard. WIX Fuel Filters offer high-quality, high-efficiency media specific to the application and fuel type.

  • Height = 1.08966 mm; Outside Diameter Top = 7.5946 mm; Outside Diameter Bottom = 6.5786 mm; Inside Diameter Bottom = 1.016 mm; Flow Type = Fullflow
  • Main application: CHEVROLET Trail Blazer. GENERAL MOTORS Trail Blazer. HOLDEN AUTOMOTIVE Colorado, TRAILBLAZER (RG)

GTIN code:

Product Details

No Data Available

Height 109 mm
Inside Diameter Bottom 10.2 mm
Outside Diameter Bottom 65.8 mm
Outside Diameter Top 75.9 mm

Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.8 CRDI 4WD Fuel Filter LWH 2776 132 180 08/12 →
Model Type 2.8 CRDI 4WD
Filter Type Fuel Filter
Engine Code LWH
ccm 2776
kW 132
HP 180
Year of manufacture 08/12 →

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.8 16V TDI
Fuel Filter XLD28 / Duramax 2776 147 200 07/14 →
Model Type 2.8 16V TDI
Filter Type Fuel Filter
Engine Code XLD28 / Duramax
ccm 2776
kW 147
HP 200
Year of manufacture 07/14 →

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.8i 16V DOHC CRD I/C Turbo (RG) Fuel Filter LWN 2776 147 200 11/13 → 06/16
Model Type 2.8i 16V DOHC CRD I/C Turbo (RG)
Filter Type Fuel Filter
Engine Code LWN
ccm 2776
kW 147
HP 200
Year of manufacture 11/13 → 06/16

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.8 TDi 4x4 Fuel Filter LWN 2776 147 200 07/16 → 10/20
Model Type 2.8 TDi 4x4
Filter Type Fuel Filter
Engine Code LWN
ccm 2776
kW 147
HP 200
Year of manufacture 07/16 → 10/20

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF10226

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
