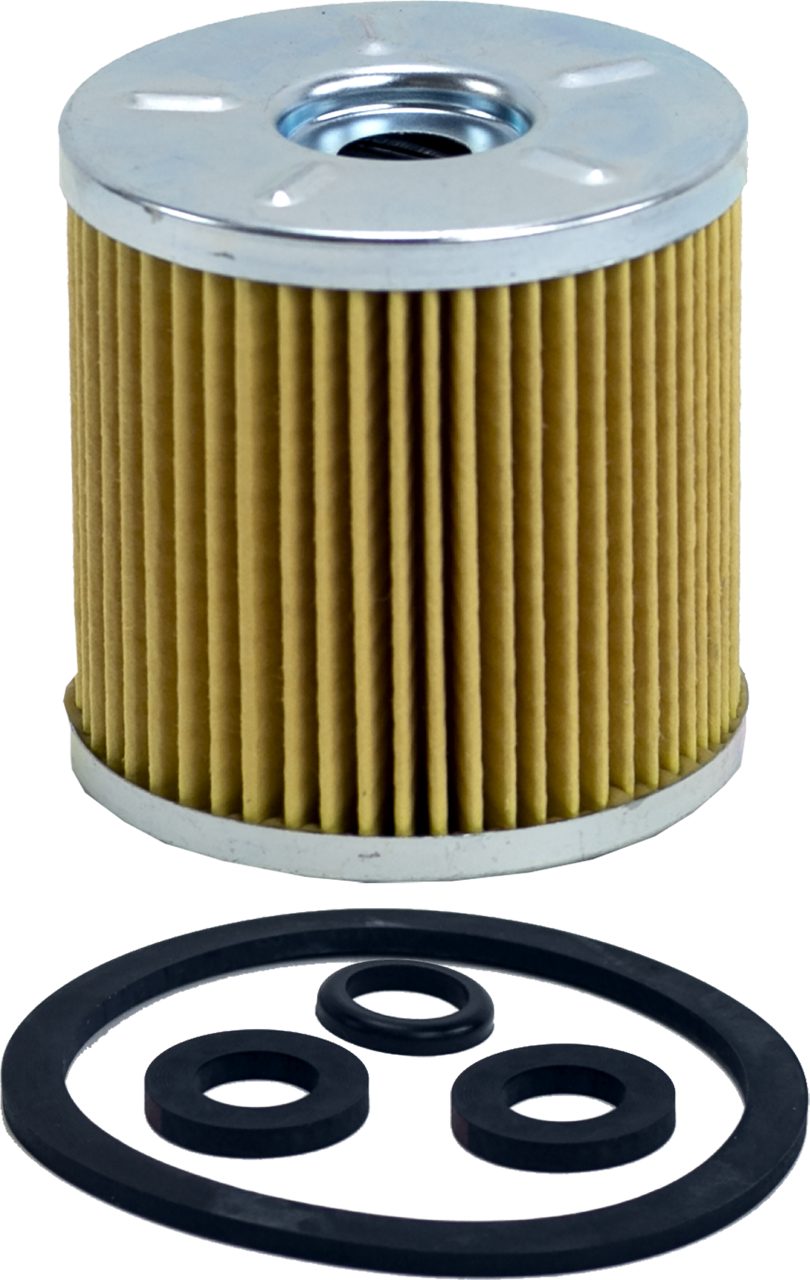

Fuel Filter
WF10232

About this item

WIX Fuel Filters protect the engine well when driving normal or very hard. WIX Fuel Filters offer high-quality, high-efficiency media specific to the application and fuel type.

  • Height = 74.93 mm; Outside Diameter Top = 75.184 mm; Outside Diameter Bottom = 75.184 mm; Inside Diameter Top = 14.478 mm; Inside Diameter Bottom = 14.478 mm; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 74.9 mm
Inside Diameter Bottom 14.5 mm
Inside Diameter Top 14.5 mm
Outside Diameter Bottom 75.2 mm
Outside Diameter Top 75.2 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
4.2 D (HZJ70/80)
Fuel Filter 1H-Z 4164 97 132 01/90 → 12/97
Model Type 4.2 D (HZJ70/80)
Filter Type Fuel Filter
Engine Code 1H-Z
ccm 4164
kW 97
HP 132
Year of manufacture 01/90 → 12/97

  • 04234-48012
  • 04234-68010
  • 04234-48011

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WF10232

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
