Hydraulics

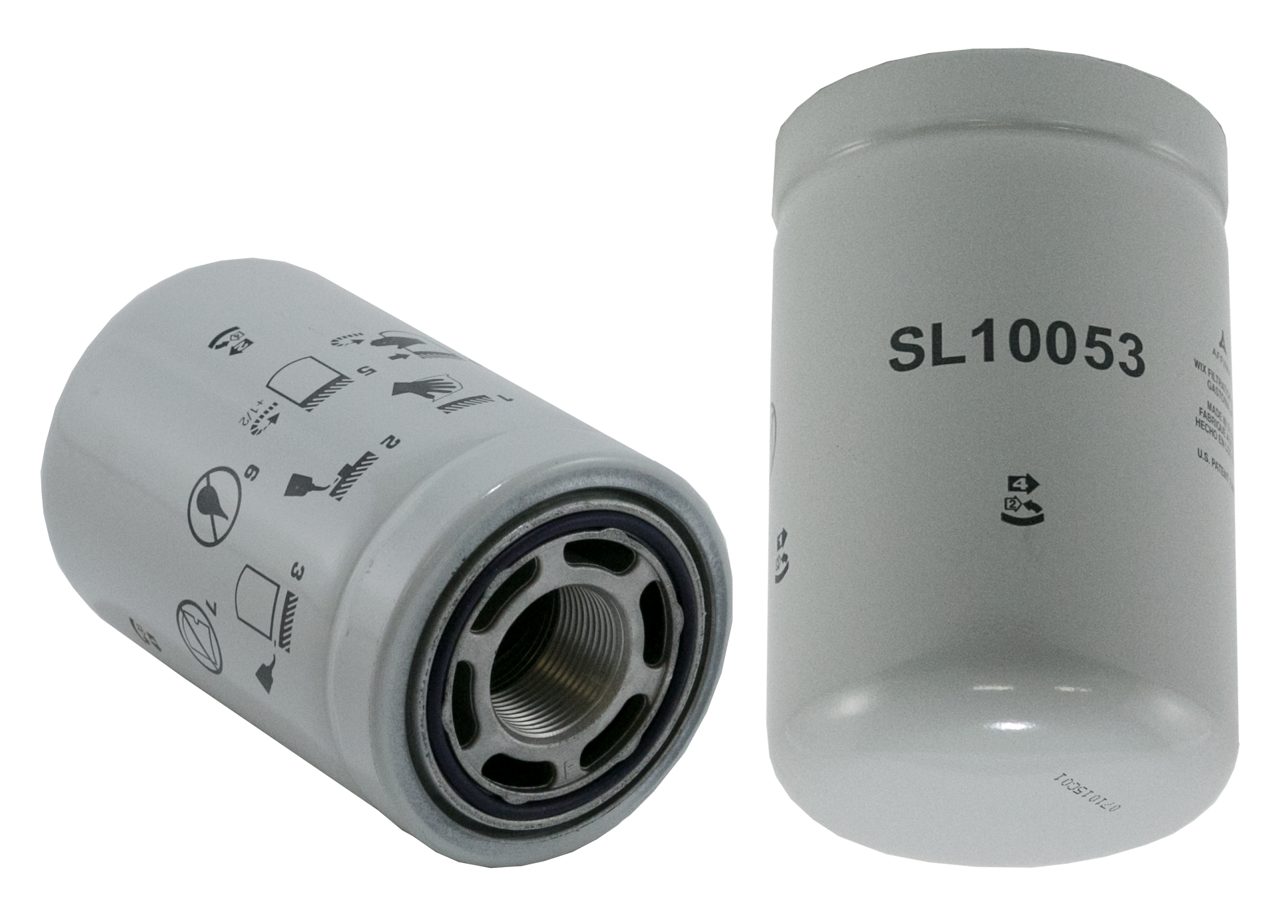

WL10053

About this item

WIX HD Hydraulic Filters use very good material for the job, including man-made stuff with wire, better paper, and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 155.042 mm; Outside Diameter Top = 95.25 mm; Nominal Micron Rating = 10 µm; Thread Size = 1 3/8-12; Bypass Valve Opening Pressure = 3.447 bar; Beta Ratio = 2/20/75=10/12/27; Burst Pressure = 68.948 bar; Flow Type = Full flow; Min. Flow Rate = 105

GTIN code:

Product Details

No Data Available

Height 155 mm
Outside Diameter Top 95.2 mm
Thread Size 1 3/8-12 mm

Max. Flow Rate (l/min) 90.848
Min. Flow Rate 105.989
Filter media material
Beta Ratio 2/20/75=10/12/27
Nominal Micron Rating 10
Burst pressure 68.947
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 3.447
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: WL10053

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
