KONICA MINOLTA DIGITAL CAMERA
KONICA MINOLTA DIGITAL CAMERA

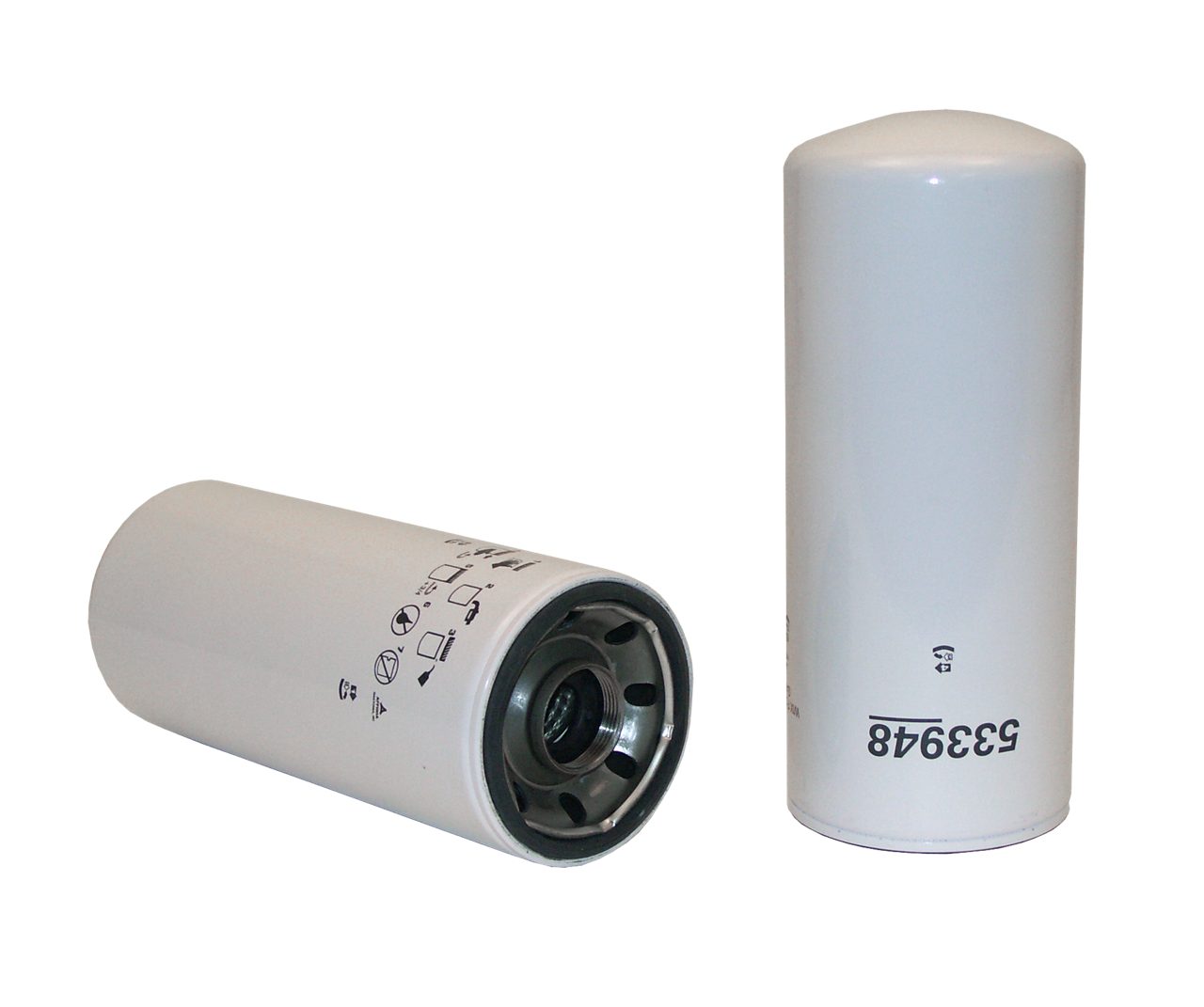

Fuel Filter
33948

About this item

WIX HD Fuel Filters offer high-quality, high-efficiency media specific to the application such as medium and heavy trucks, farm, construction, mining and other equipment applications. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 286,868 mm; Outside Diameter Top = 119,38 mm; Nominal Micron Rating = 5 µm; Thread Size = 15/8-12; Burst Pressure = 13,79 bar; Flow Type = Full flow; Filter Area = 11.722,46 cm2; Media Type = Cellulose

GTIN code: 765809339484

Product Details

No Data Available

Height 286.9 mm
Outside Diameter Top 119.4 mm
Thread Size 15/8-12 mm

Filter media material
Nominal Micron Rating 5
Burst pressure 13.789
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
PC 400-7
Fuel Filter KOMATSU SAA6D125E-3 - - -
Model Type PC 400-7
Filter Type Fuel Filter
Engine Code KOMATSU SAA6D125E-3
ccm -
kW -
HP -
Year of manufacture

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 33948

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
