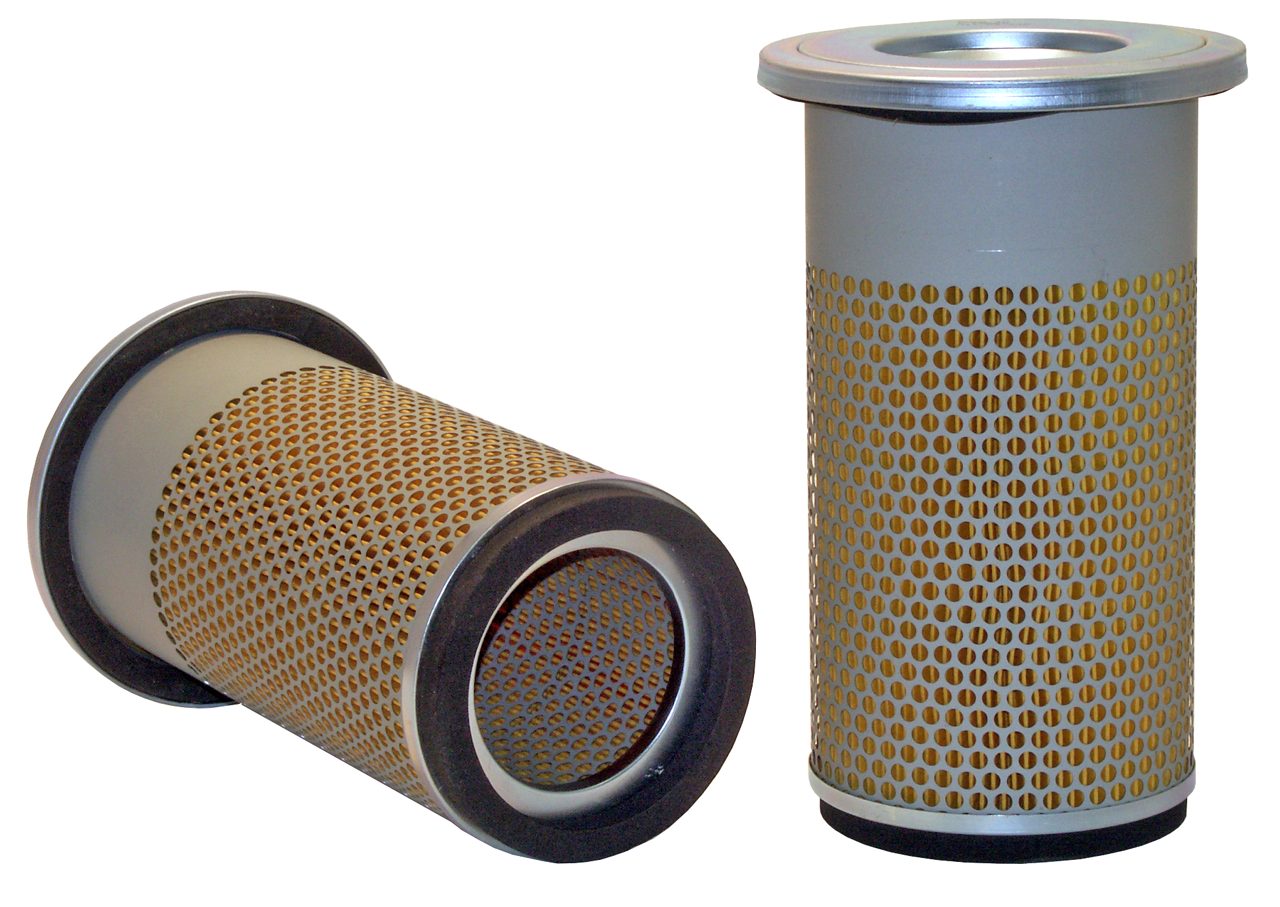

Air Filter
46445

About this item

WIX HD Air Filters feature premium filtration media with a skip a pleat media stabilization and pleat stabilization beads (where applicable). WIX HD Air Filters have a minimum efficiency of 99% contaminant removal (per ISO 5011, based on WIX 46664, WIX 42803, WIX 46761, WIX 46433).

  • Height = 259,994 mm; Outside Diameter Top = 157,988 mm; Outside Diameter Bottom = 129,997 mm; Inside Diameter Top = 15,875 mm; Inside Diameter Bottom = 102,006 mm; Volume Flow Rate = 1.982,143 l/min; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 260 mm
Inside Diameter Bottom 102 mm
Inside Diameter Top 15.9 mm
Outside Diameter Bottom 130 mm
Outside Diameter Top 158 mm

Nominal flow rate air 31418.17
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
PC 78 US-5 Air Filter Komatsu 4D95LE-2B - - -
Model Type PC 78 US-5
Filter Type Air Filter
Engine Code Komatsu 4D95LE-2B
ccm -
kW -
HP -
Year of manufacture

  • 3020820

  • 600-181-6340
  • 600-181-6350

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 46445

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
