46644
46644

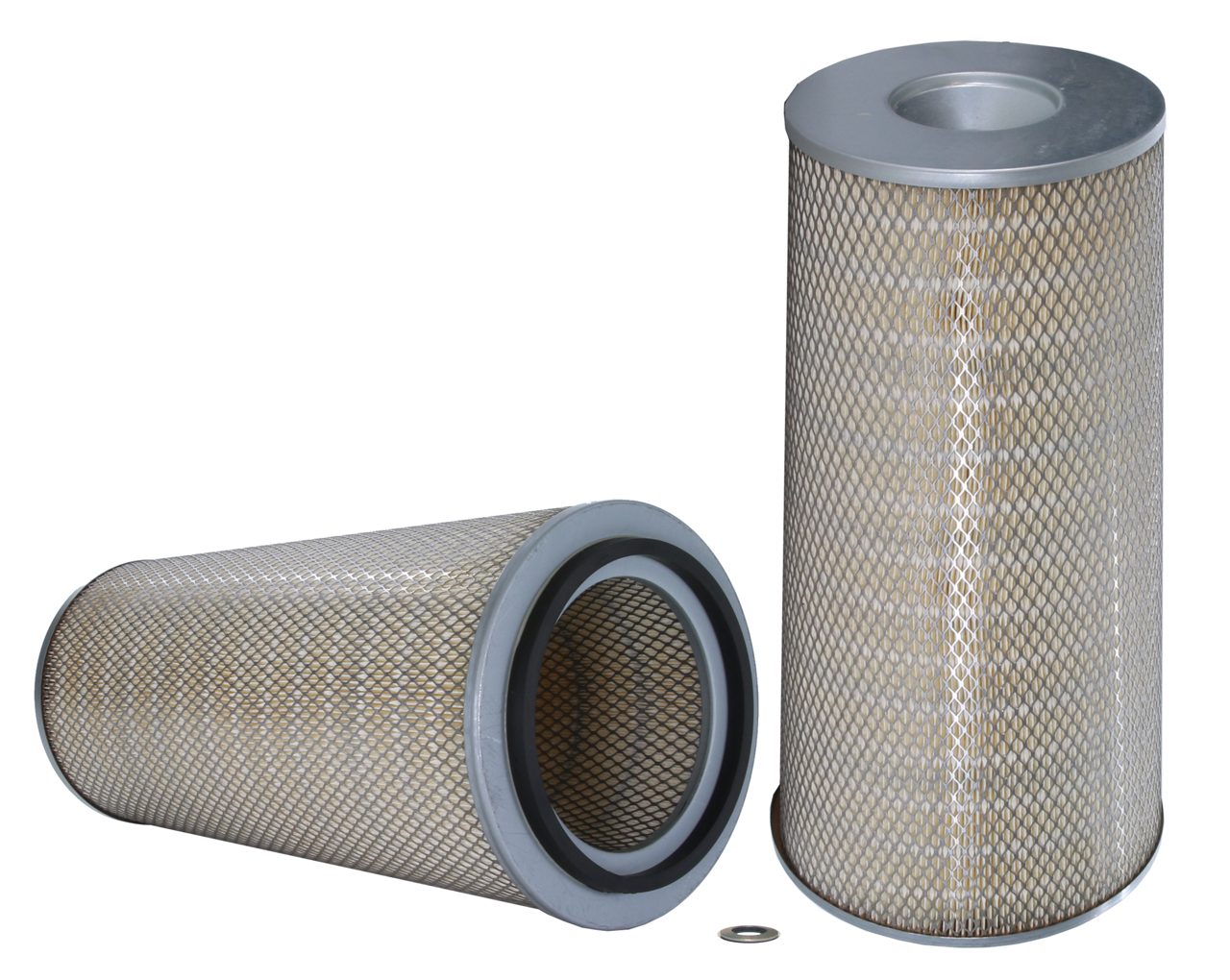

Air Filter
46644

About this item

WIX HD Air Filters feature premium filtration media with a skip a pleat media stabilization and pleat stabilization beads (where applicable). WIX HD Air Filters have a minimum efficiency of 99% contaminant removal (per ISO 5011, based on WIX 46664, WIX 42803, WIX 46761, WIX 46433).

  • Height = 495,3 mm; Outside Diameter Top = 201,676 mm; Outside Diameter Bottom = 250,19 mm; Inside Diameter Top = 17,526 mm; Inside Diameter Bottom = 158,75 mm; Volume Flow Rate = 15.007,654 l/min; Media Type = Cellulose

GTIN code: 765809466449

Product Details

No Data Available

Height 495.3 mm
Inside Diameter Bottom 158.8 mm
Inside Diameter Top 17.5 mm
Outside Diameter Bottom 250.2 mm
Outside Diameter Top 201.7 mm

Nominal flow rate air 237880.43
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Super Olympian (B10TL) Air Filter D10A285 10000 210 286 07/98 → 08/04
Model Type Super Olympian (B10TL)
Filter Type Air Filter
Engine Code D10A285
ccm 10000
kW 210
HP 286
Year of manufacture 07/98 → 08/04

  • 8228260

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 46644

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
