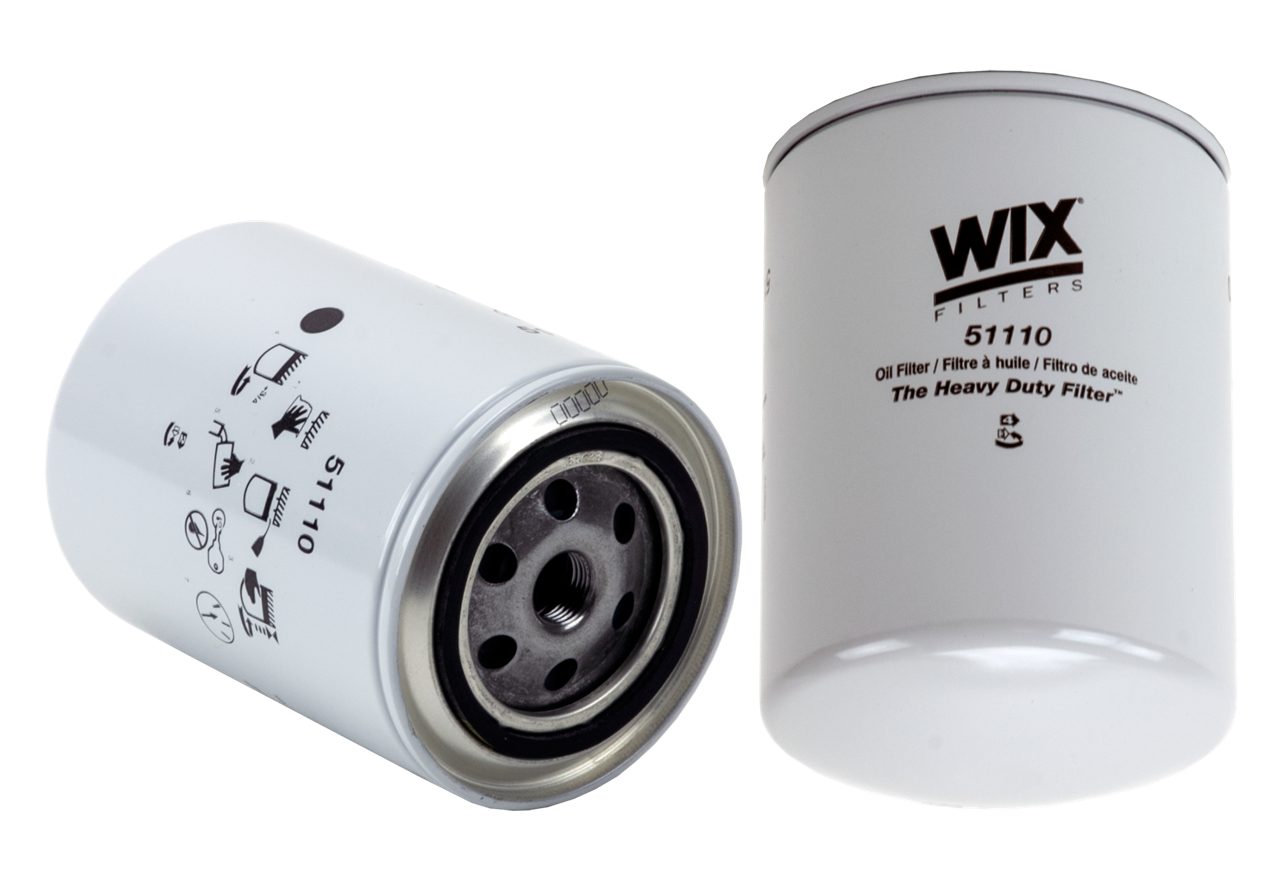

Oil Filter
51110

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 130,988 mm; Outside Diameter Top = 93,218 mm; Nominal Micron Rating = 21 µm; Thread Size = 5/8-18; Anti-drain valve = Yes; Bypass Valve Opening Pressure = 0,483 bar; Bypass Valve Opening Pressure (max.) = 0,621 bar; Beta Ratio = 2/20=6/20; Burst

GTIN code: 765809511101

Product Details

No Data Available

Height 131 mm
Outside Diameter Top 93.2 mm
Thread Size 5/8-18 mm

Max. Flow Rate (l/min) 22.712
Filter media material
Beta Ratio 2/20=6/20
Nominal Micron Rating 21
Burst pressure 19.994
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 0.482
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51110

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
