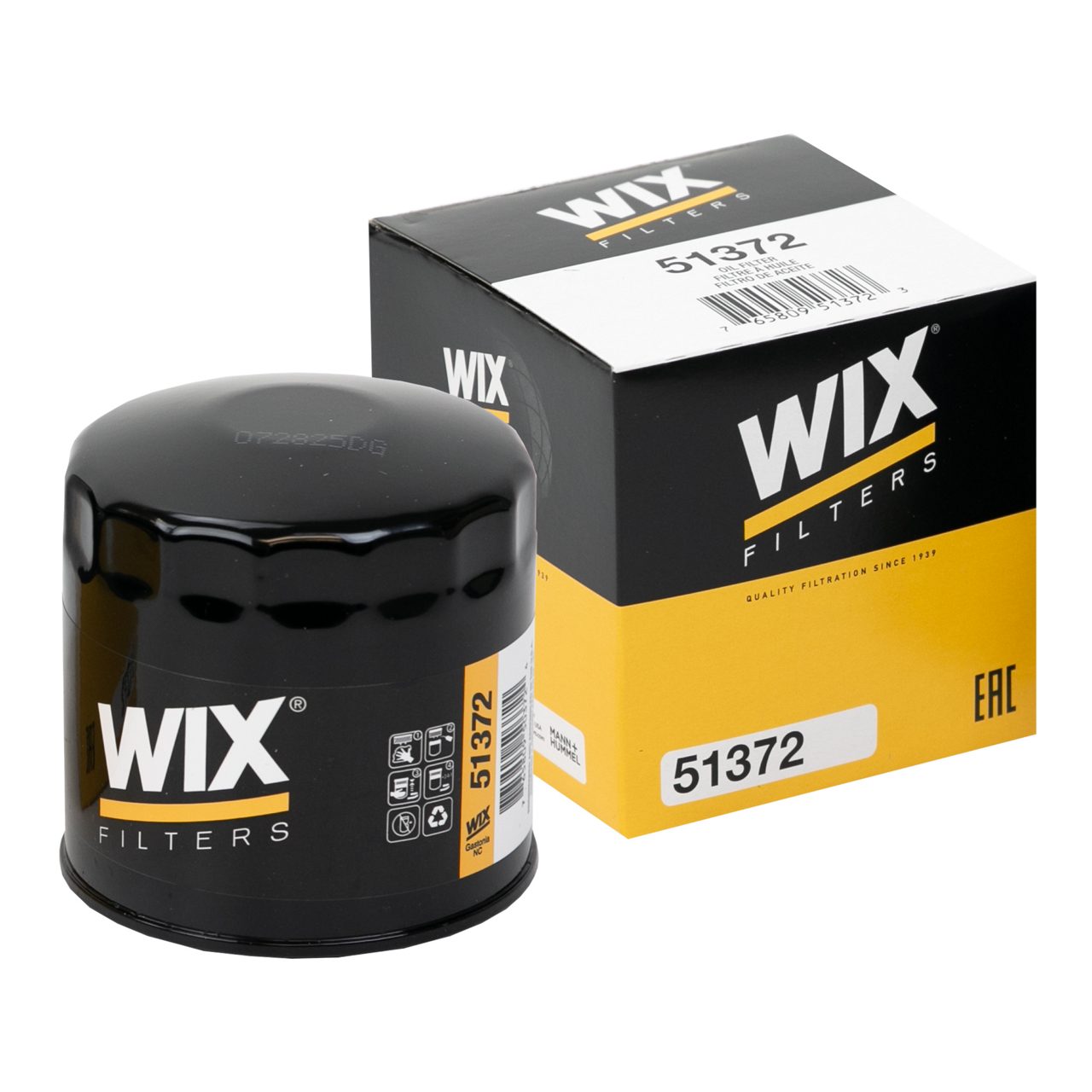

Oil Filter
51372

About this item

WIX Premium Oil Filters for severe driving use synthetic blended media with up to 99% dirt trapping efficiency. WIX Premium Oil Filters for severe driving use silicone anti-drainback valves to prevent dry starts.

  • Height = 97,434 mm; Outside Diameter Top = 93,167 mm; Nominal Micron Rating = 21 µm; Thread Size = M22x1.5; Anti-drain valve = Yes; Bypass Valve Opening Pressure = 1,517 bar; Beta Ratio = 2/20=12/25; Burst Pressure = 18,961 bar; Flow Type = Full flow; Min

GTIN code: 765809513723

Product Details

No Data Available

Height 97.4 mm
Outside Diameter Top 93.2 mm
Thread Size M22x1.5 mm

Max. Flow Rate (l/min) 41.638
Min. Flow Rate 49.209
Filter media material
Beta Ratio 2/20=12/25
Nominal Micron Rating 21
Burst pressure 18.96
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 1.516
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

  • 3W7E-6714-AA

  • 6636 968
  • 3904 728
  • F 1 AE 6714 BC
  • XW4E 6714 BA
  • 3652 061
  • 4137 784
  • XW4E 6714 DA
  • 4628 534
  • 5116 166
  • 5191 626

  • F1 AZ 6731 BD
  • 9U2J-6731-AA

  • LR 029240

  • AJ04-14-302 C
  • AJ57-14-302
  • AJ04-14-302E
  • AJTM-14-302
  • AJ04-14-302 B
  • AJ04-14302F

  • LPW 000070

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51372

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
