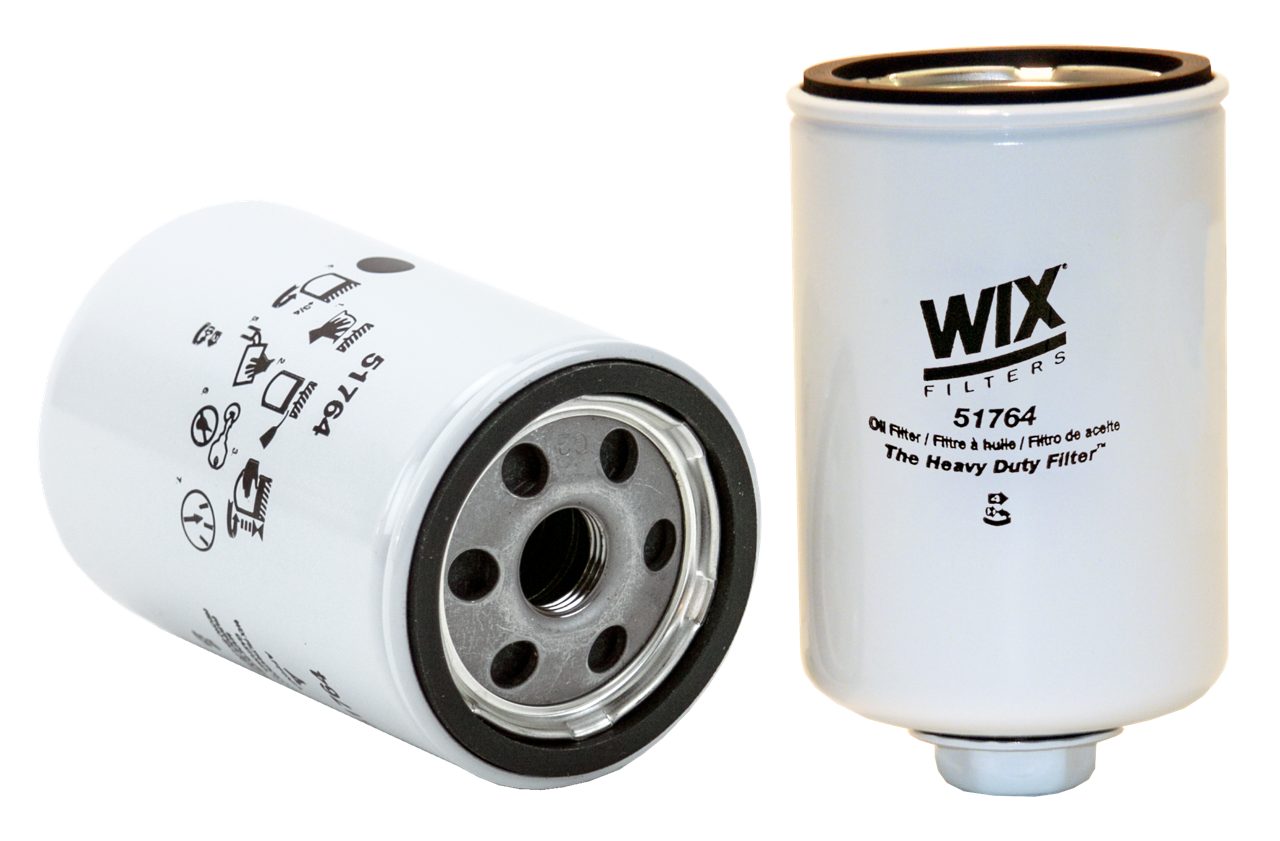

Oil Filter
51764

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 134,087 mm; Outside Diameter Top = 75,336 mm; Nominal Micron Rating = 21 µm; Thread Size = 3/4-16; Anti-drain valve = Yes; Bypass Valve Opening Pressure = 0,552 bar; Bypass Valve Opening Pressure (max.) = 0,758 bar; Beta Ratio = 2/20=6/20; Burst

GTIN code: 765809517646

Product Details

No Data Available

Height 134.1 mm
Outside Diameter Top 75.3 mm
Thread Size 3/4-16 mm

Max. Flow Rate (l/min) 26.497
Min. Flow Rate 34.068
Filter media material
Beta Ratio 2/20=6/20
Nominal Micron Rating 21
Burst pressure 17.236
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 0.551
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51764

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
