Hydraulics

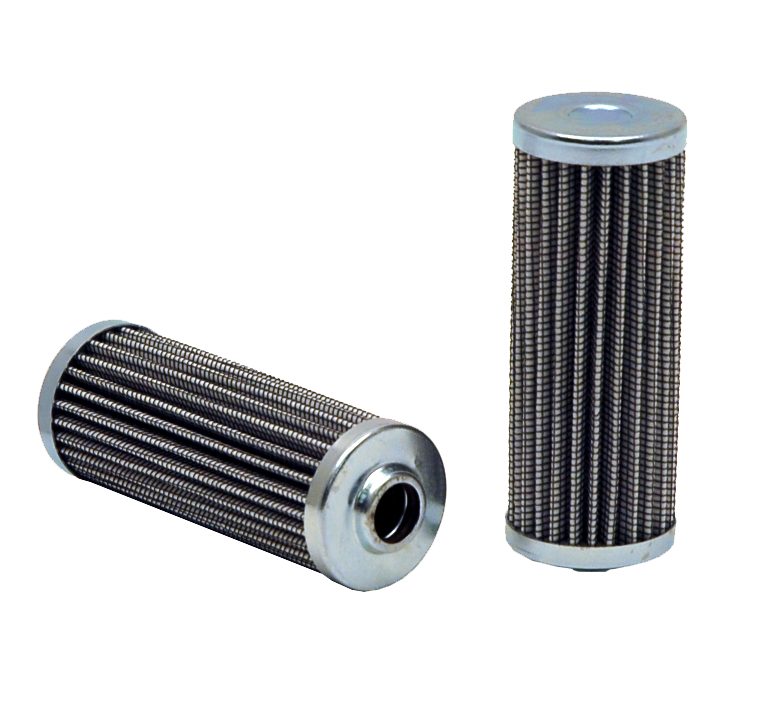

D40B10GV

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 93,0 mm; Outside Diameter Top = 35,1 mm; Outside Diameter Bottom = 35,1 mm; Inside Diameter Bottom = 12,4 mm; Nominal Micron Rating = 10 µm; Beta Ratio = B200=10; Flow Type = Fullflow; Filter Area = 316,1 cm2; Operating Temperature Max. = 48,9 °C
  • Main application: T-E341029904070976214YXPS_PROD T-E341030000070976214YXPS_PROD T-E341030001070976214YXPS_PROD T-E341030002070976214YXPS_PROD T-E341
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 93 mm
Inside Diameter Bottom 12.4 mm
Outside Diameter Bottom 35.1 mm
Outside Diameter Top 35.1 mm

Filter media material
Beta Ratio B200=10
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No
