Hydraulics

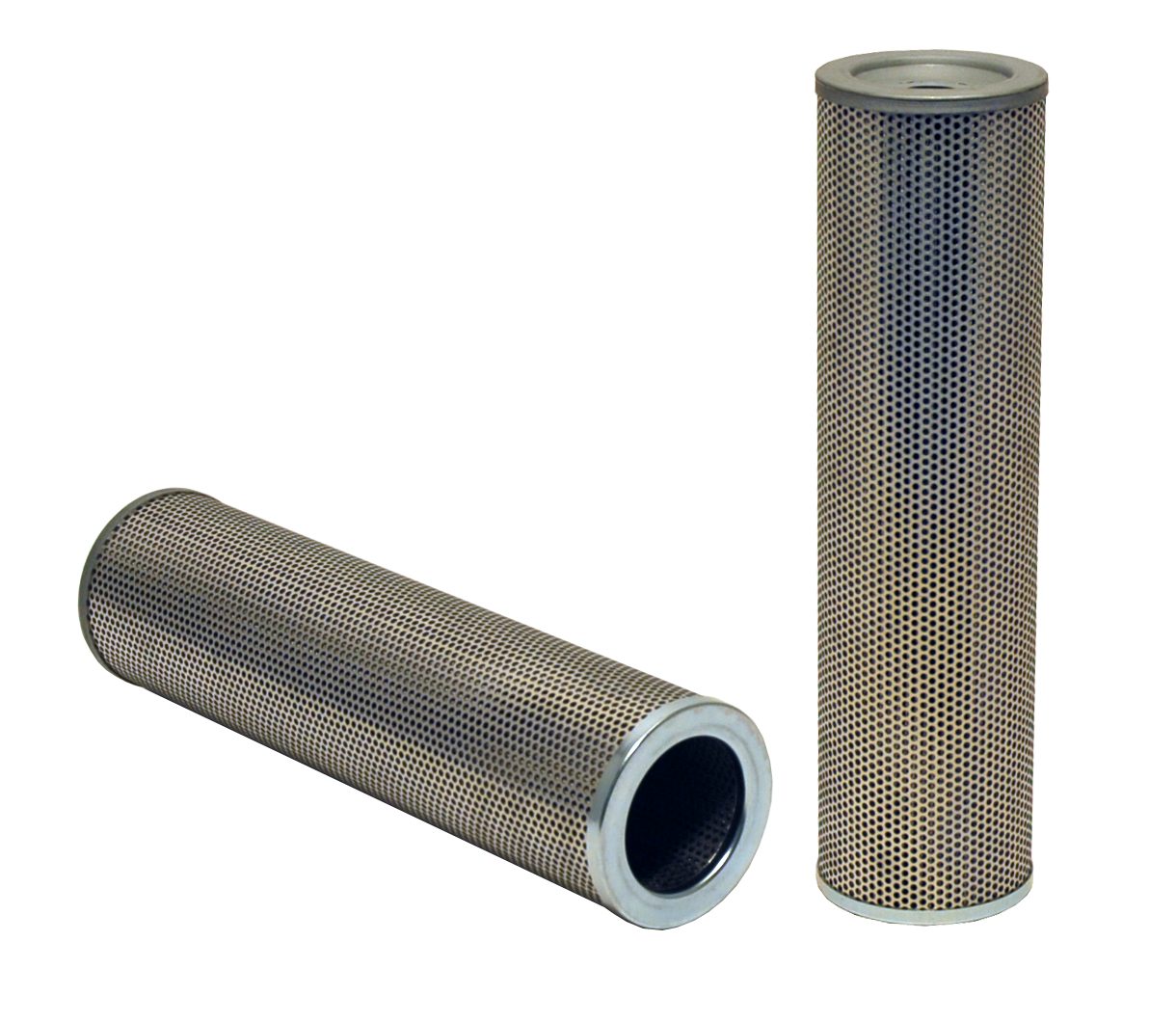

R34D10GP

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 399,999 mm; Outside Diameter Top = 105,994 mm; Outside Diameter Bottom = 105,994 mm; Inside Diameter Top = 72,009 mm; Inside Diameter Bottom = 31,013 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 200/9.9; Beta Ratio 2 = 1000/12.4; Flow Type = F
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 400 mm
Inside Diameter Bottom 31 mm
Inside Diameter Top 72 mm
Outside Diameter Bottom 106 mm
Outside Diameter Top 106 mm

Filter media material
Beta Ratio 200/9.9
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: R34D10GP

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
