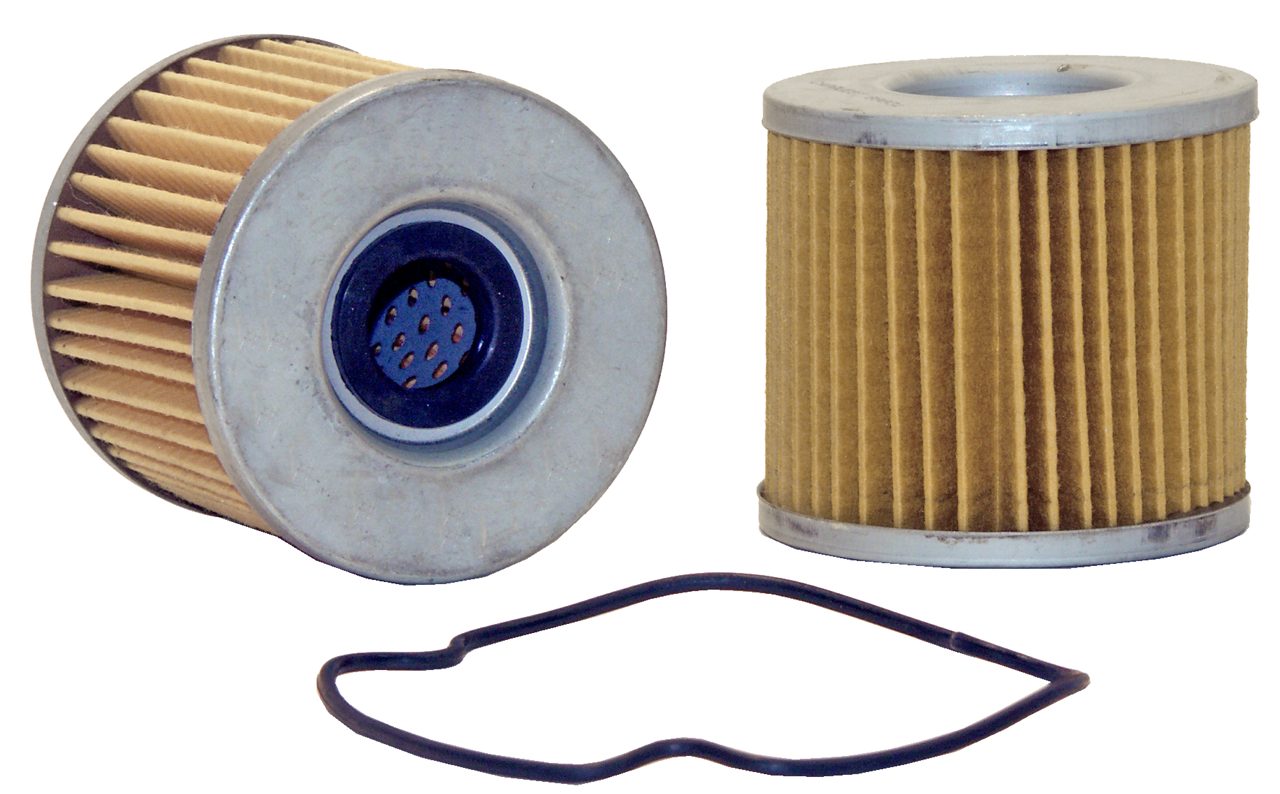

Oil Filter
24931

About this item

Since 1939, WIX Filters has been innovating in the filtration industry. The company designs and manufactures a wide range of filters for automotive, diesel, agricultural, and industrial applications. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 64,389 mm; Outside Diameter Top = 71,882 mm; Outside Diameter Bottom = 71,882 mm; Inside Diameter Bottom = 19,304 mm; Bypass Valve Opening Pressure = 0,552 bar; Bypass Valve Opening Pressure (max.) = 0,689 bar; Flow Type = Full flow; Media Type =

GTIN code:

Product Details

No Data Available

Height 64.4 mm
Inside Diameter Bottom 19.3 mm
Outside Diameter Bottom 71.9 mm
Outside Diameter Top 71.9 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 0.551
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 24931

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
