33789
33789

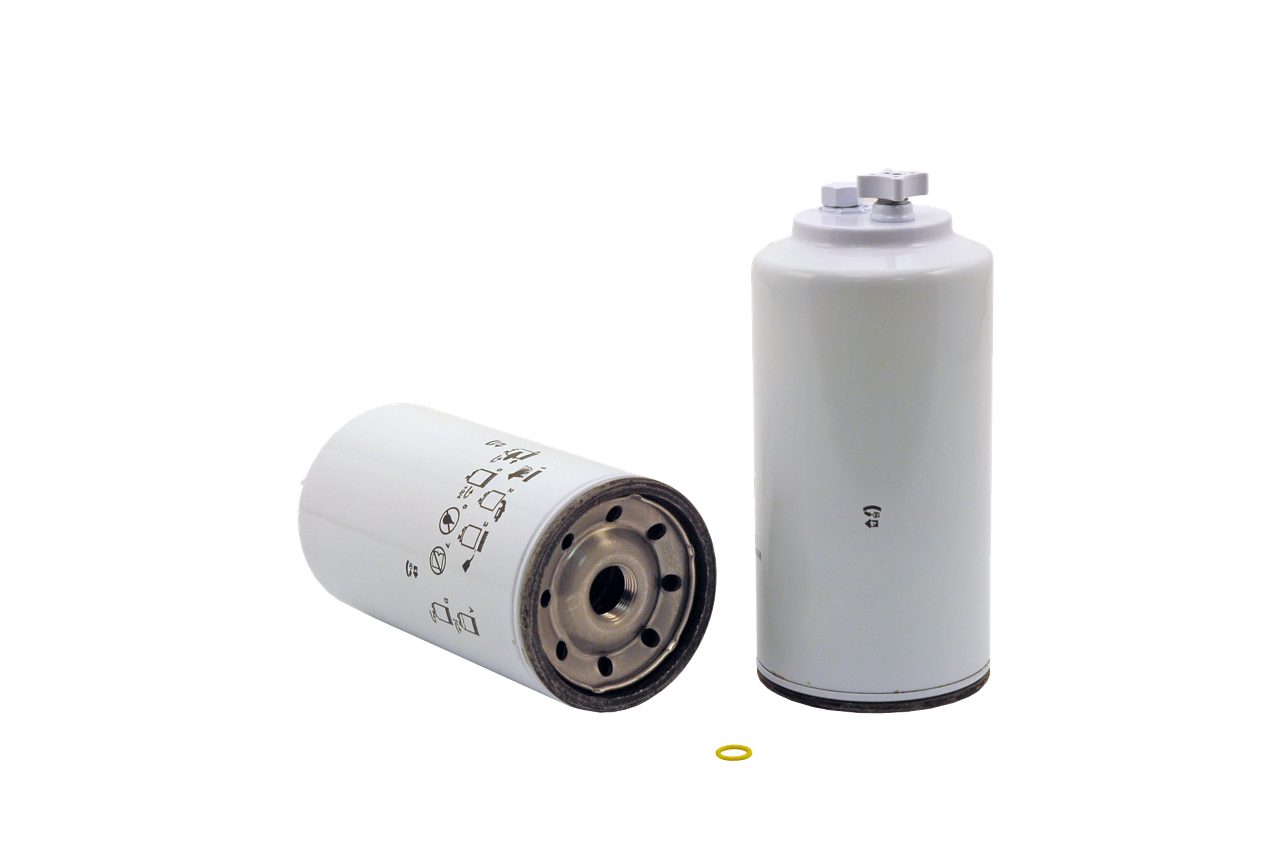

Fuel Filter
33789

About this item

WIX HD Fuel Water Separator Filters feature enhanced cellulose or full synthetic media that provides excellent contaminant holding capacity for super clean fuel and water removal. Some models feature a water drain port with a threaded plug or patented self-venting drain valve for efficient water purging as needed.

  • Height = 238,074 mm; Outside Diameter Top = 107,95 mm; Nominal Micron Rating = 10 µm; Thread Size = 1-14; With Water-Drain = Yes; Burst Pressure = 13,79 bar; Flow Type = Full flow; Min. Flow Rate = 56,78 l/min; Max. Flow Rate = 45,424 l/min; Filter Area =

GTIN code: 765809337893

Product Details

No Data Available

Height 238.1 mm
Outside Diameter Top 108 mm
Thread Size 1-14 mm

Min. Flow Rate 56.78
Filter media material
Nominal Micron Rating 10
Burst pressure 13.789
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 33789

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
