33793
33793

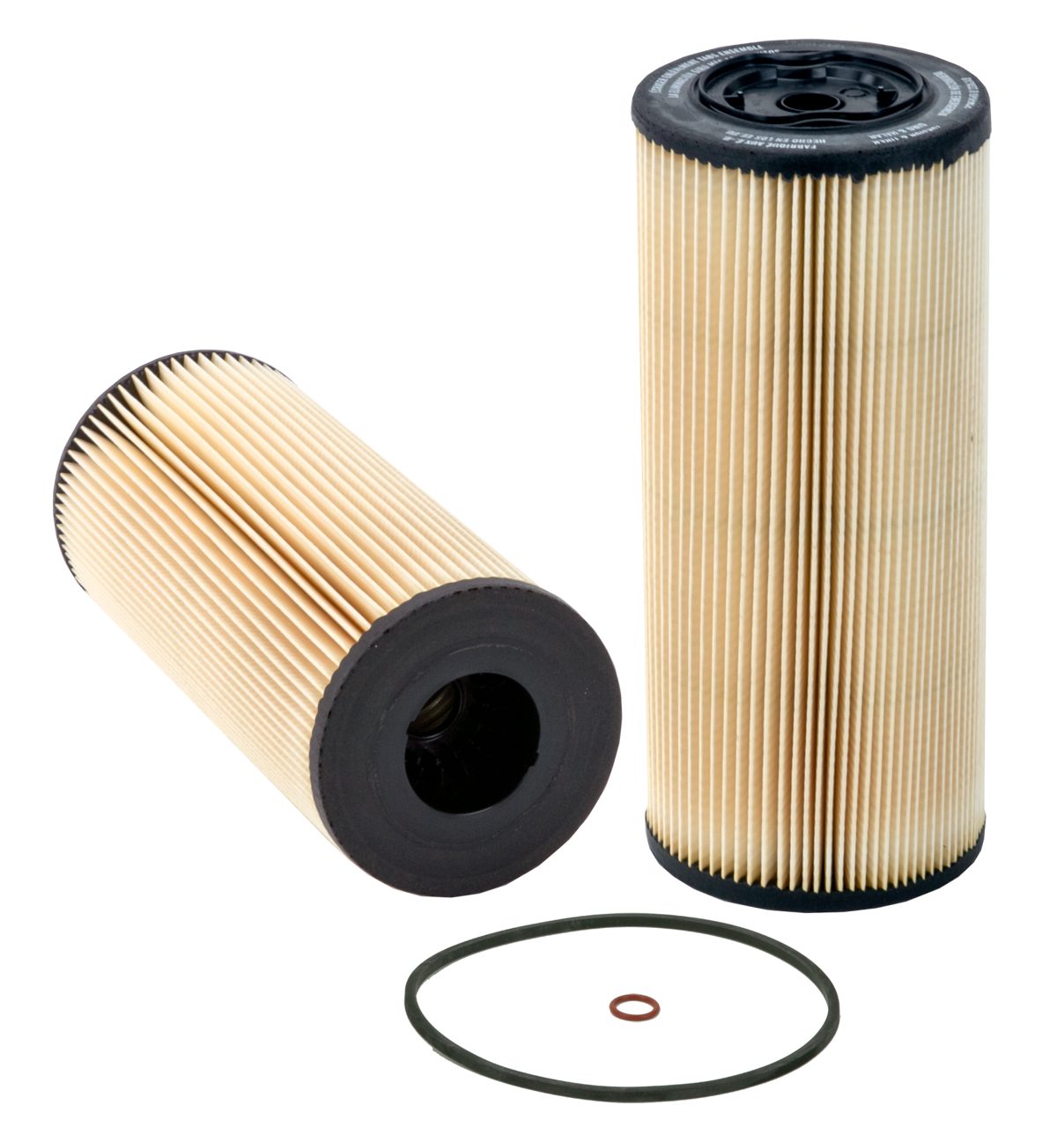

Fuel Filter
33793

About this item

WIX HD Fuel Filters offer high-quality, high-efficiency media specific to the application such as medium and heavy trucks, farm, construction, mining and other equipment applications. WIX HD Fuel Filters feature corrosion-resistant components for leak-resistant, long-lasting performance under all types of operating conditions.

  • Height = 244,6 mm; Outside Diameter Top = 128,0 mm; Outside Diameter Bottom = 118,9 mm; Inside Diameter Top = 16,3 mm; Inside Diameter Bottom = 19,1 mm; Nominal Micron Rating = 2 µm; Flow Type = Full flow; Media Type = Cellulose
  • Main application: Racor 900FH, 1000FH Turbine Fuel Series for Over-the-Road Model Trucks (2002 and up) - 2 Micron Version

GTIN code: 765809337930

Product Details

No Data Available

Height 244.6 mm
Inside Diameter Bottom 19.1 mm
Inside Diameter Top 16.3 mm
Outside Diameter Bottom 118.9 mm
Outside Diameter Top 128 mm

Filter media material
Nominal Micron Rating 2
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3412 C Fuel Filter - - -
3412 E Fuel Filter - - -
Model Type 3412 C
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture
Model Type 3412 E
Filter Type Fuel Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
4900 6x4
Fuel Filter 7.6 Navistar DTA-466 7600 - -
Model Type 4900 6x4
Filter Type Fuel Filter
Engine Code 7.6 Navistar DTA-466
ccm 7600
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
8100
Fuel Filter 7.6 Navistar DT-530E 7600 - -
Model Type 8100
Filter Type Fuel Filter
Engine Code 7.6 Navistar DT-530E
ccm 7600
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
9200
Fuel Filter DDC60 - 316 430 01/00 →
Model Type 9200
Filter Type Fuel Filter
Engine Code DDC60
ccm -
kW 316
HP 430
Year of manufacture 01/00 →

  • 4P-7384

  • 303173

  • 3831224
  • 889425

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 33793

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
