KONICA MINOLTA DIGITAL CAMERA
KONICA MINOLTA DIGITAL CAMERA

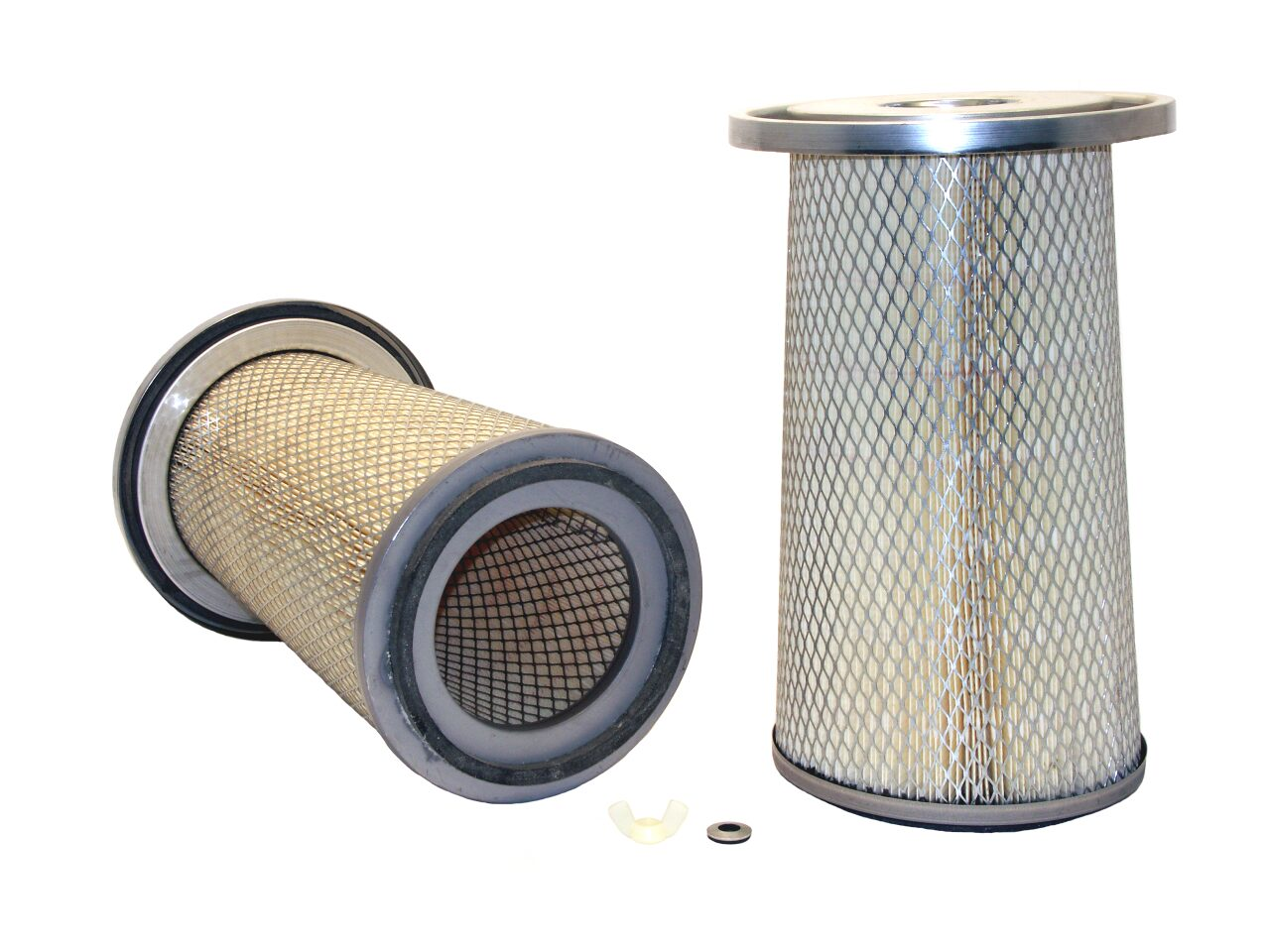

Air Filter
46609

About this item

WIX HD Air Filters feature premium filtration media with a skip a pleat media stabilization and pleat stabilization beads (where applicable). WIX HD Air Filters have a minimum efficiency of 99% contaminant removal (per ISO 5011, based on WIX 46664, WIX 42803, WIX 46761, WIX 46433).

  • Height = 395,275 mm; Outside Diameter Top = 247,65 mm; Outside Diameter Bottom = 220,65 mm; Inside Diameter Top = 15,875 mm; Inside Diameter Bottom = 132,537 mm; Volume Flow Rate = 11.751,276 l/min; Media Type = Cellulose

GTIN code: 765809466098

Product Details

No Data Available

Height 395.3 mm
Inside Diameter Bottom 132.5 mm
Inside Diameter Top 15.9 mm
Outside Diameter Bottom 220.6 mm
Outside Diameter Top 247.7 mm

Nominal flow rate air 11751.276
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

  • 2191-P13-8427

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 46609

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
