KONICA MINOLTA DIGITAL CAMERA
KONICA MINOLTA DIGITAL CAMERA

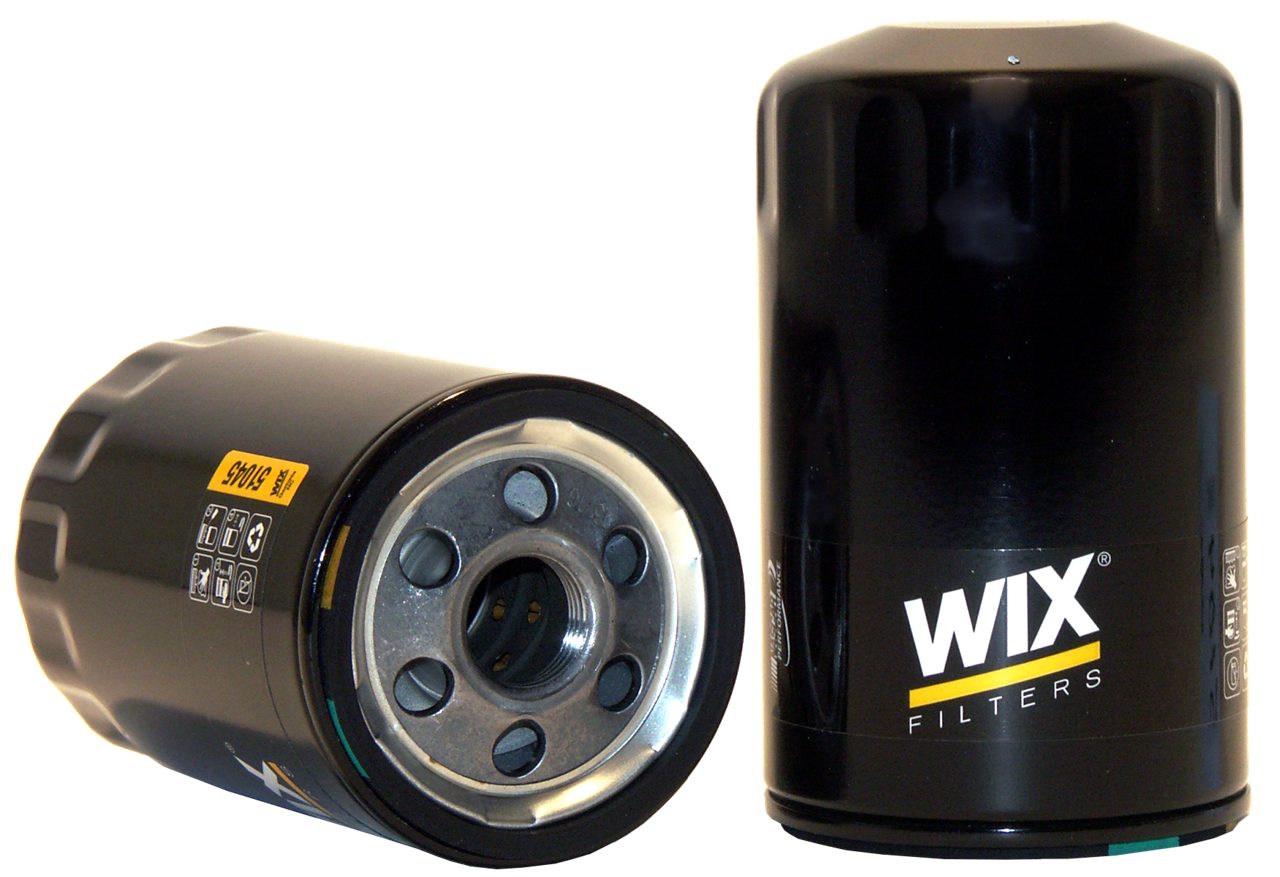

Oil Filter
51045

About this item

WIX Premium Oil Filters for severe driving use synthetic blended media with up to 99% dirt trapping efficiency. WIX Premium Oil Filters for severe driving use silicone anti-drainback valves to prevent dry starts.

  • Height = 122,631 mm; Outside Diameter Top = 74,193 mm; Nominal Micron Rating = 21 µm; Thread Size = 13/16-16; Beta Ratio = 2/20=6/20; Burst Pressure = 22,408 bar; Flow Type = Full flow; Min. Flow Rate = 41,639 l/min; Max. Flow Rate = 34,068 l/min; Media T

GTIN code: 765809510456

Product Details

No Data Available

Height 122.6 mm
Outside Diameter Top 74.2 mm
Thread Size 13/16-16 mm

Max. Flow Rate (l/min) 34.068
Min. Flow Rate 41.638
Filter media material
Beta Ratio 2/20=6/20
Nominal Micron Rating 21
Burst pressure 22.407
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.5 V6 (ZS 180) Oil Filter KV6 2498 130 177 09/01 → 10/05
Model Type 2.5 V6 (ZS 180)
Filter Type Oil Filter
Engine Code KV6
ccm 2498
kW 130
HP 177
Year of manufacture 09/01 → 10/05

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.5 V6 (ZT 160) Oil Filter KV6 2497 118 161 06/01 → 07/05
2.5 V6 (ZT 180) Oil Filter KV6 2498 130 177 02/02 → 07/05
2.5 V6 (ZT 190) Oil Filter KV6 2498 140 190 09/01 → 07/05
Model Type 2.5 V6 (ZT 160)
Filter Type Oil Filter
Engine Code KV6
ccm 2497
kW 118
HP 161
Year of manufacture 06/01 → 07/05
Model Type 2.5 V6 (ZT 180)
Filter Type Oil Filter
Engine Code KV6
ccm 2498
kW 130
HP 177
Year of manufacture 02/02 → 07/05
Model Type 2.5 V6 (ZT 190)
Filter Type Oil Filter
Engine Code KV6
ccm 2498
kW 140
HP 190
Year of manufacture 09/01 → 07/05

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.5 V6 Oil Filter KV6 2498 140 190 10/01 → 07/05
Model Type 2.5 V6
Filter Type Oil Filter
Engine Code KV6
ccm 2498
kW 140
HP 190
Year of manufacture 10/01 → 07/05

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
2.0 V6 Oil Filter 204KF 1991 110 150 04/99 → 05/05
2.5 V6 Oil Filter KV6 2497 129 175 04/99 → 10/01
2.5 V6 Oil Filter 25K4F 2497 130 177 10/01 → 05/05
Model Type 2.0 V6
Filter Type Oil Filter
Engine Code 204KF
ccm 1991
kW 110
HP 150
Year of manufacture 04/99 → 05/05
Model Type 2.5 V6
Filter Type Oil Filter
Engine Code KV6
ccm 2497
kW 129
HP 175
Year of manufacture 04/99 → 10/01
Model Type 2.5 V6
Filter Type Oil Filter
Engine Code 25K4F
ccm 2497
kW 130
HP 177
Year of manufacture 10/01 → 05/05

  • LPW 100160
  • LPW 100161
  • GFE 378

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51045

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
