Hydraulics

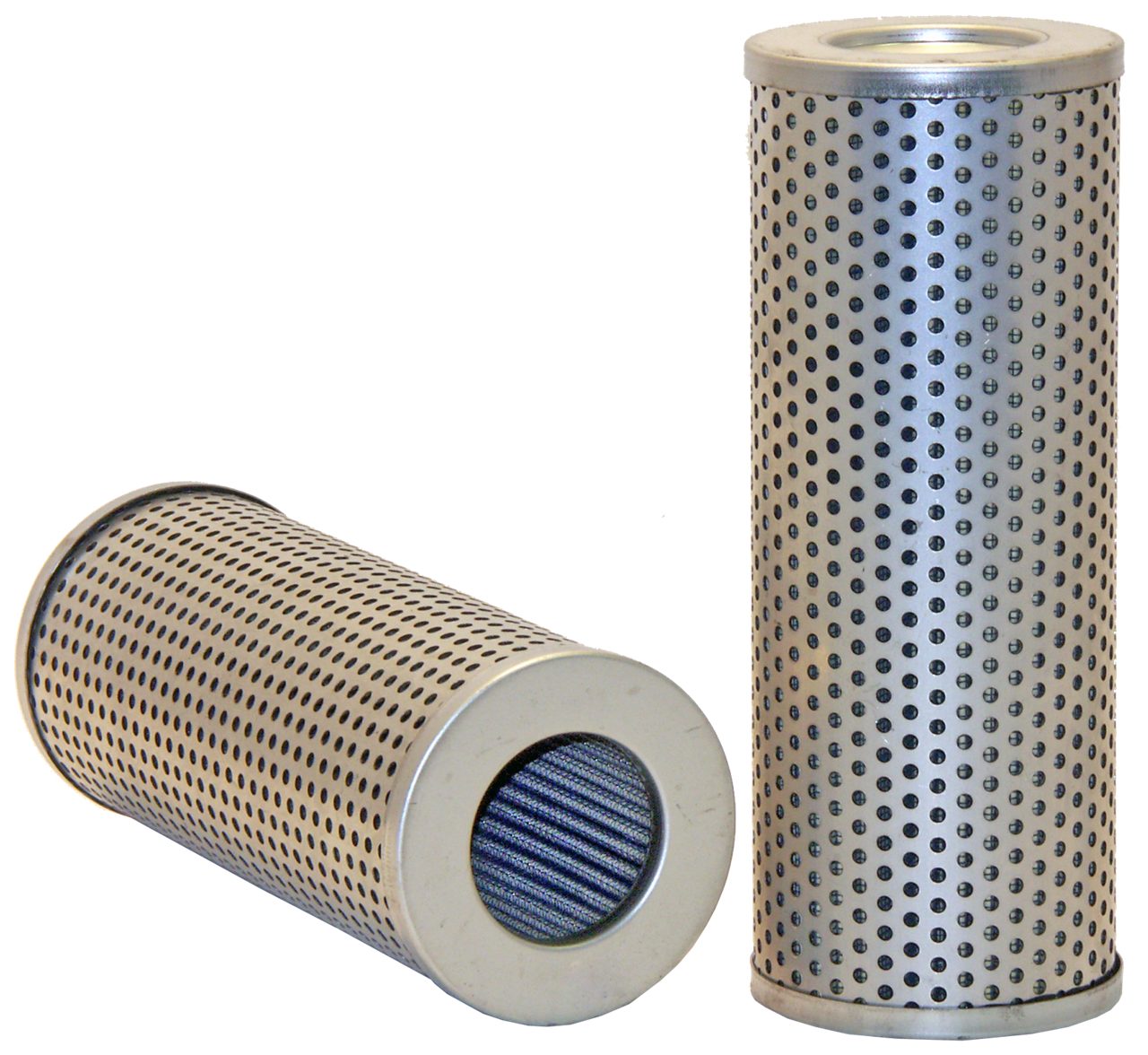

51281

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 203,2 mm; Outside Diameter Top = 78,74 mm; Outside Diameter Bottom = 78,74 mm; Inside Diameter Bottom = 44,069 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 2/20=7/18; Flow Type = Full flow; Media Type = Enhanced Cellulose

GTIN code:

Product Details

No Data Available

Height 203.2 mm
Inside Diameter Bottom 44.1 mm
Outside Diameter Bottom 78.7 mm
Outside Diameter Top 78.7 mm

Filter media material
Beta Ratio 2/20=7/18
Nominal Micron Rating 10
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No
