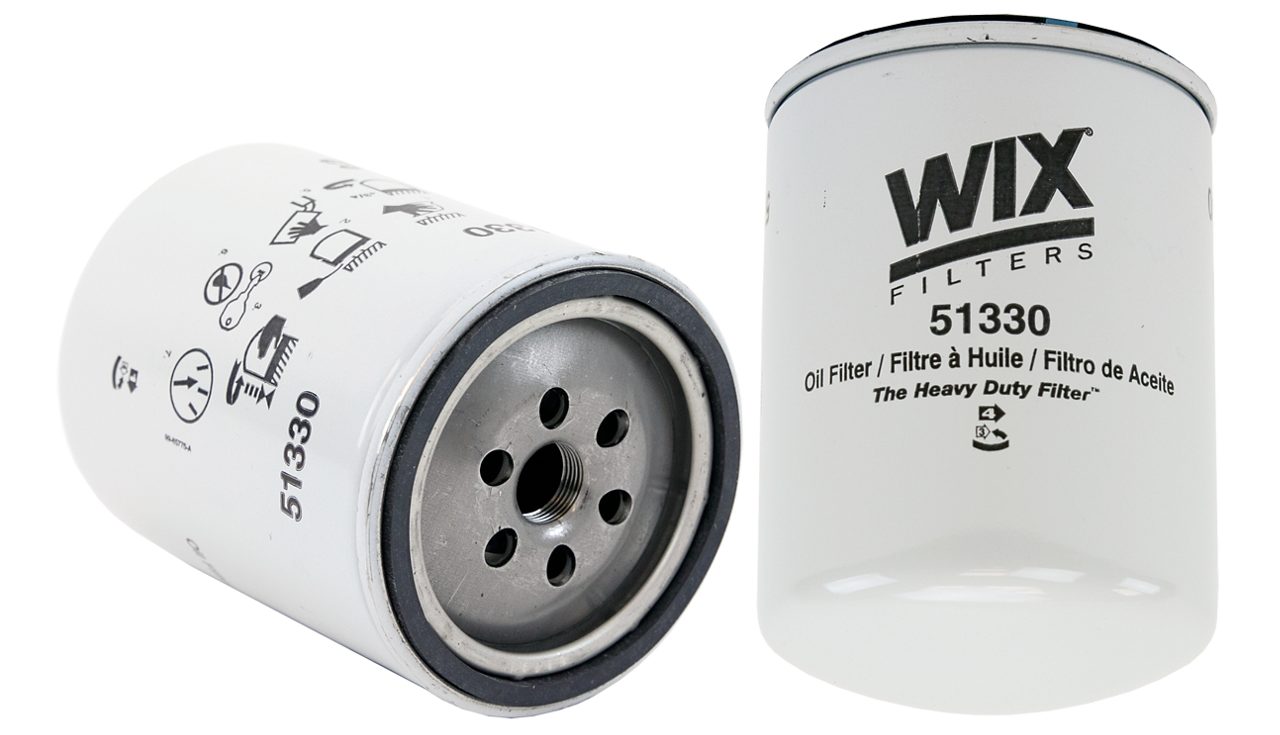

Oil Filter
51330

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 151,587 mm; Outside Diameter Top = 108,763 mm; Nominal Micron Rating = 32 µm; Thread Size = M20x1.5; Bypass Valve Opening Pressure = 0,896 bar; Bypass Valve Opening Pressure (max.) = 1,31 bar; Burst Pressure = 27,579 bar; Flow Type = Full flow; M

GTIN code: 765809513303

Product Details

No Data Available

Height 151.6 mm
Outside Diameter Top 108.8 mm
Thread Size M20x1.5 mm

Max. Flow Rate (l/min) 34.068
Min. Flow Rate 41.638
Filter media material
Nominal Micron Rating 32
Burst pressure 27.579
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 0.896
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 51330

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
