Hydraulics
57001

About this item

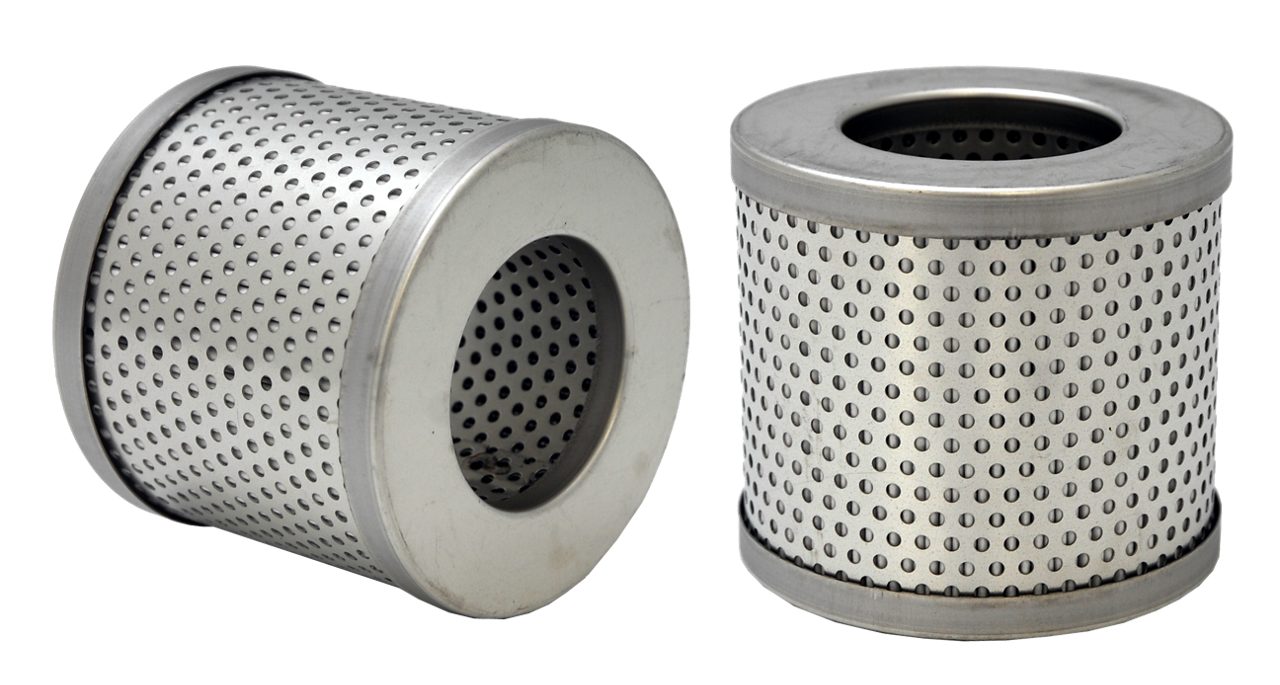

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 100,584 mm; Outside Diameter Top = 111,506 mm; Outside Diameter Bottom = 111,506 mm; Inside Diameter Top = 61,722 mm; Inside Diameter Bottom = 61,722 mm; Flow Type = Full flow; Media Type = Microglass

GTIN code:

Product Details

No Data Available

Height 100.6 mm
Inside Diameter Bottom 61.7 mm
Inside Diameter Top 61.7 mm
Outside Diameter Bottom 111.5 mm
Outside Diameter Top 111.5 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57001

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
