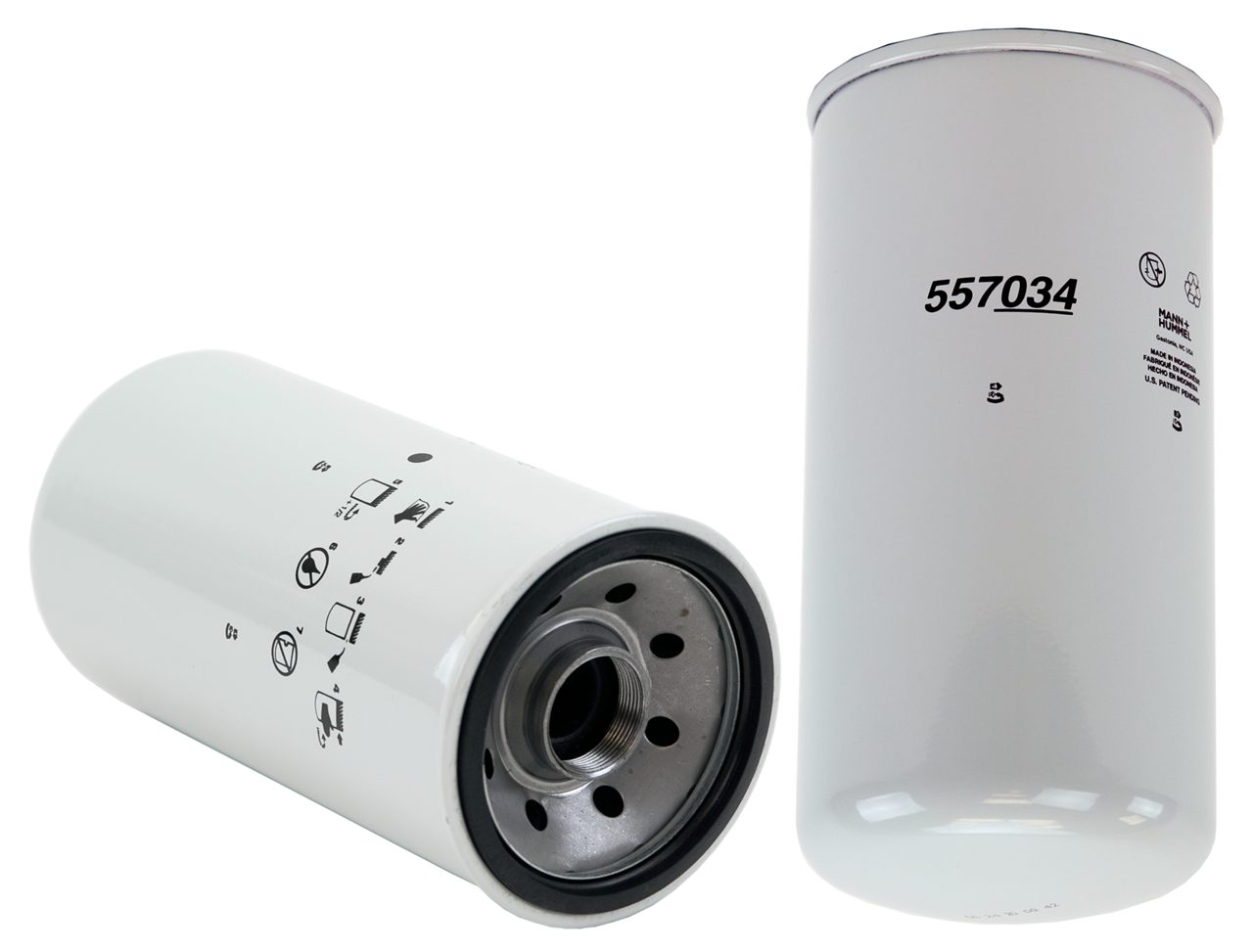

Oil Filter
57034

About this item

WIX HD Oil Filters provide superior engine protection with high-quality, high-capacity media for applications such as medium and heavy trucks, farm, construction, mining, and other equipment. WIX HD Oil Filters feature corrosion-resistant components for leak-resistant, long-lasting performance.

  • Height = 222,25 mm; Outside Diameter Top = 110,998 mm; Thread Size = M32x1.5; Bypass Valve Opening Pressure = 0,552 bar; Flow Type = Full flow; Media Type = Cellulose

GTIN code:

Product Details

No Data Available

Height 222.2 mm
Outside Diameter Top 111 mm
Thread Size M32x1.5 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Bypass Valve Opening Pressure 0.551
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
311 ((9LJ1->)) Oil Filter Cat 3064 - - -
312 ((6BL1->, 6GK1->)) Oil Filter Cat 3064 - - -
320 ((8LK1->,3RK1->,7WK1->)) Oil Filter Cat 3066 - - -
320 ((1KL1->, 8LK1->, 1XM1->,2DL1->)) Oil Filter Cat 3116 - 96 131 03/92 → 12/98
320 N ((1XM1->,2DL214->,9KK1359->)) Oil Filter Cat 3116 - - -
320 N Oil Filter Cat 3066 - - -
Model Type 311 ((9LJ1->))
Filter Type Oil Filter
Engine Code Cat 3064
ccm -
kW -
HP -
Year of manufacture
Model Type 312 ((6BL1->, 6GK1->))
Filter Type Oil Filter
Engine Code Cat 3064
ccm -
kW -
HP -
Year of manufacture
Model Type 320 ((8LK1->,3RK1->,7WK1->))
Filter Type Oil Filter
Engine Code Cat 3066
ccm -
kW -
HP -
Year of manufacture
Model Type 320 ((1KL1->, 8LK1->, 1XM1->,2DL1->))
Filter Type Oil Filter
Engine Code Cat 3116
ccm -
kW 96
HP 131
Year of manufacture 03/92 → 12/98
Model Type 320 N ((1XM1->,2DL214->,9KK1359->))
Filter Type Oil Filter
Engine Code Cat 3116
ccm -
kW -
HP -
Year of manufacture
Model Type 320 N
Filter Type Oil Filter
Engine Code Cat 3066
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3064 Oil Filter - - -
3066 Oil Filter - - -
Model Type 3064
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture
Model Type 3066
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
D3 C III (7XL1->, 4KS1->, 4TS1->, 5GS->) Oil Filter Cat 3204 / 3046 - - -
Model Type D3 C III (7XL1->, 4KS1->, 4TS1->, 5GS->)
Filter Type Oil Filter
Engine Code Cat 3204 / 3046
ccm -
kW -
HP -
Year of manufacture

  • 5I-7950

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57034

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
