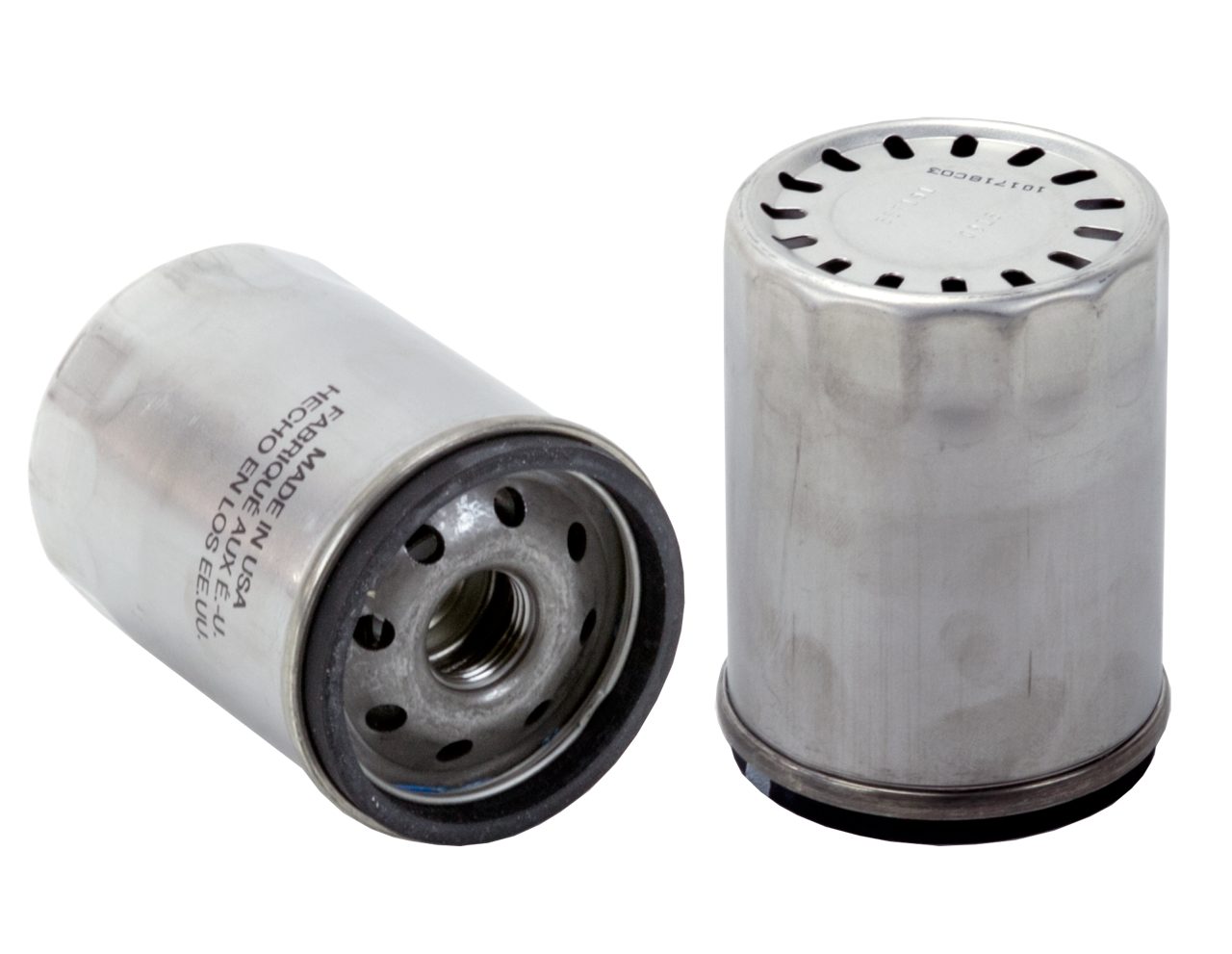

Hydraulic Steering Filter
57191

About this item

WIX HD Power Steering Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Power Steering Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 89,154 mm; Outside Diameter Top = 67,564 mm; Nominal Micron Rating = 3 µm; Thread Size = 3/4-16; Anti-drain valve = Yes; Bypass Valve Opening Pressure = 1,379 bar; Beta Ratio = B75=9; Flow Type = Full flow; Min. Flow Rate = 34,068 l/min; Max. Flo

GTIN code:

Product Details

No Data Available

Height 89.2 mm
Outside Diameter Top 67.6 mm
Thread Size 3/4-16 mm

Max. Flow Rate (l/min) 26.497
Min. Flow Rate 34.068
Filter media material
Beta Ratio B75=9
Nominal Micron Rating 3
Bypass Valve Opening Pressure 1.378
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57191

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
