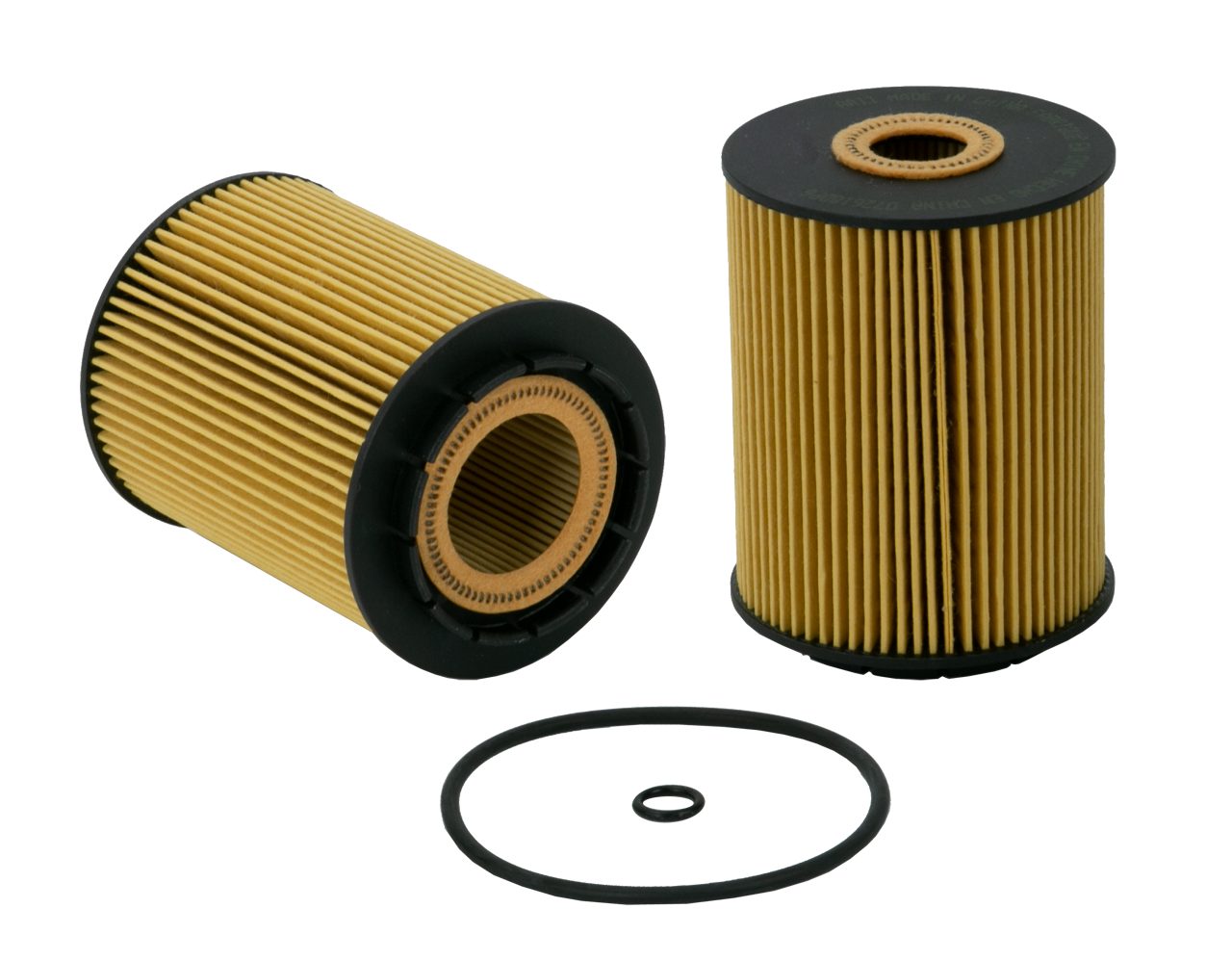

Oil Filter
57563

About this item

Since 1939, WIX Filters has been innovating in the filtration industry. The company designs and manufactures a wide range of filters for automotive, diesel, agricultural, and industrial applications. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 110,9 mm; Outside Diameter Top = 83,0 mm; Outside Diameter Bottom = 83,0 mm; Inside Diameter Top = 24,0 mm; Inside Diameter Bottom = 40,0 mm
  • Main application: AUDI Q7 (4L). VW (VOLKSWAGEN) (USA) 2004, 2005, 2006, 2007. VW (VOLKSWAGEN) Touareg I (7L)

GTIN code: 765809575639

Product Details

No Data Available

Height 110.9 mm
Inside Diameter Bottom 40 mm
Inside Diameter Top 24 mm
Outside Diameter Bottom 83 mm
Outside Diameter Top 83 mm

Filter media material
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3.0 (V6) Oil Filter - - - 01/11 → 12/14
Model Type 3.0 (V6)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture 01/11 → 12/14

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
3.2 (V6) Oil Filter - - - 01/03 → 12/07
4.2 V8 Oil Filter AXQ, BHX - 228 310 05/03 → 04/10
Model Type 3.2 (V6)
Filter Type Oil Filter
Engine Code
ccm -
kW -
HP -
Year of manufacture 01/03 → 12/07
Model Type 4.2 V8
Filter Type Oil Filter
Engine Code AXQ, BHX
ccm -
kW 228
HP 310
Year of manufacture 05/03 → 04/10

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Touareg (V8 4.2L FI) Oil Filter - 228 310
Model Type Touareg (V8 4.2L FI)
Filter Type Oil Filter
Engine Code
ccm -
kW 228
HP 310
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Touareg (V8 4.2L FI) Oil Filter - 228 310
Model Type Touareg (V8 4.2L FI)
Filter Type Oil Filter
Engine Code
ccm -
kW 228
HP 310
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Touareg (V8 4.2L FI) Oil Filter AXQ, BHX - 227 310
Model Type Touareg (V8 4.2L FI)
Filter Type Oil Filter
Engine Code AXQ, BHX
ccm -
kW 227
HP 310
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
Touareg (V8 4.2L FI) Oil Filter AXQ - 227 310
Model Type Touareg (V8 4.2L FI)
Filter Type Oil Filter
Engine Code AXQ
ccm -
kW 227
HP 310
Year of manufacture

  • 077 115 562
  • 077 115 561 H

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: 57563

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
