Hydraulics

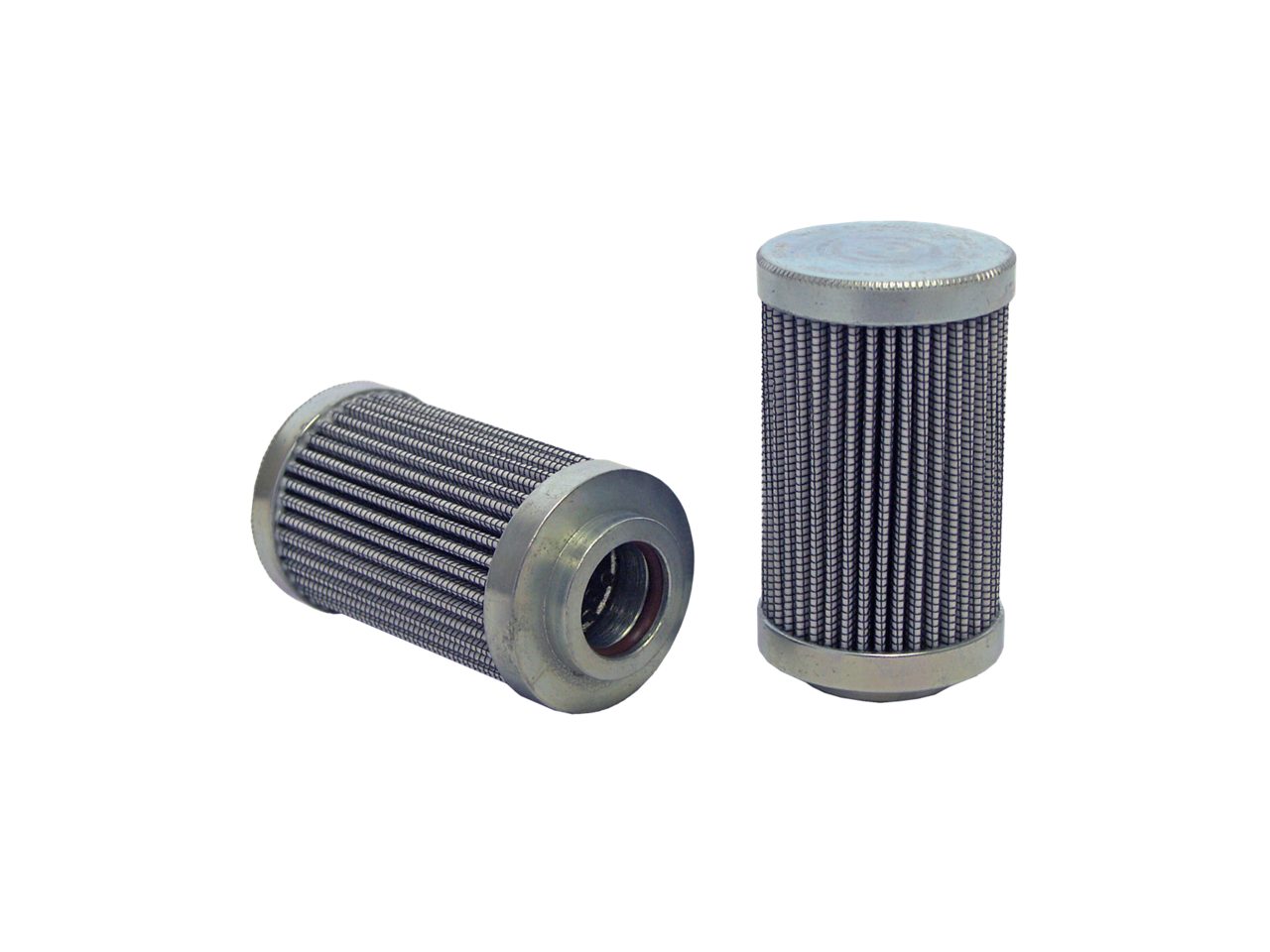

D82E03HV

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 84,074 mm; Outside Diameter Top = 46,99 mm; Outside Diameter Bottom = 46,99 mm; Inside Diameter Bottom = 22,098 mm; Nominal Micron Rating = 3 µm; Beta Ratio = B200=3; Flow Type = Full flow; Capacity = 5 g; Filter Area = 458,06 cm2; Operating Temp
  • Industrial Hydraulics

GTIN code: 765809205727

Product Details

No Data Available

Height 84.1 mm
Inside Diameter Bottom 22.1 mm
Outside Diameter Bottom 47 mm
Outside Diameter Top 47 mm

Filter media material
Beta Ratio B200=3
Nominal Micron Rating 3
Operating temperature min. (°C) 37.777
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: D82E03HV

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
