Compressed Air-Oil Separation

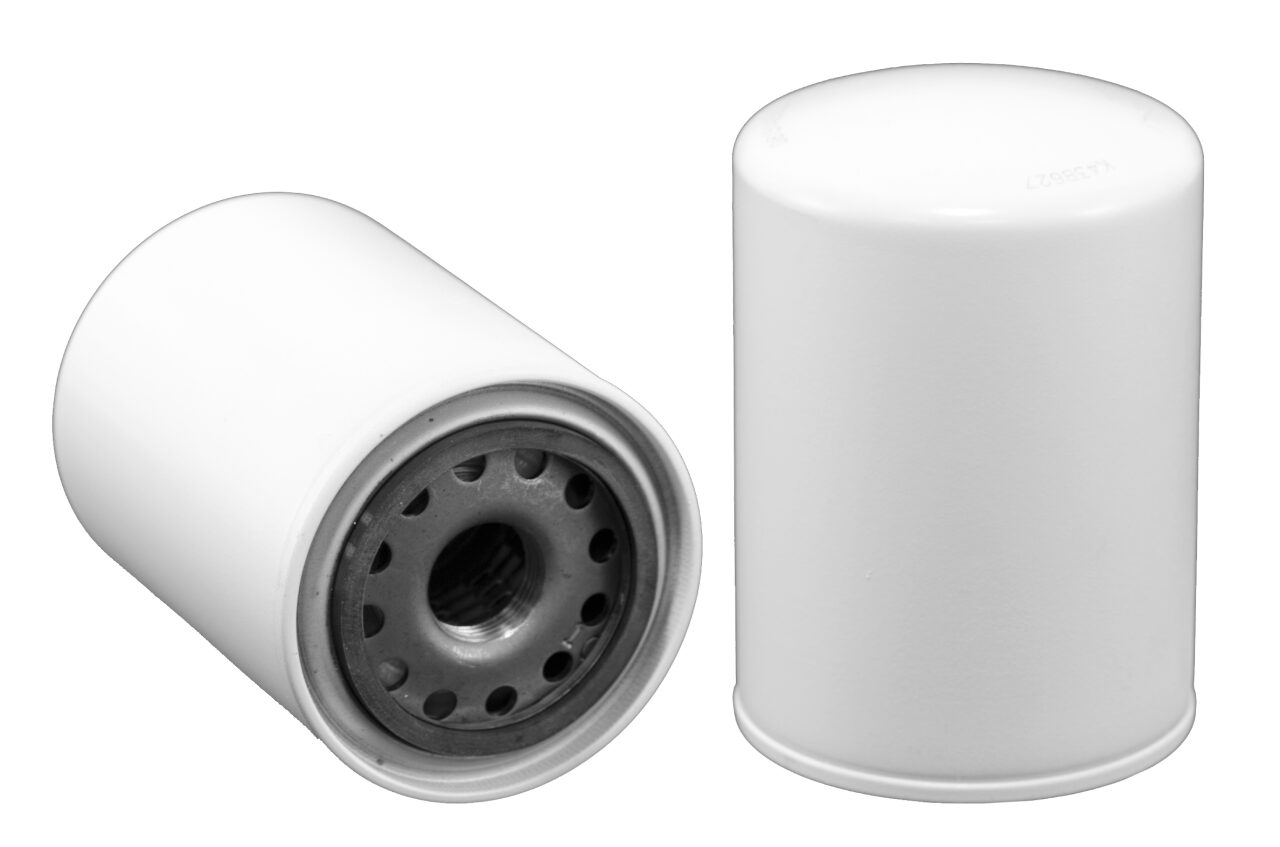

K43B627

About this item

Since 1939, WIX Filters has been innovating in the filtration industry. The company designs and manufactures a wide range of filters for automotive, diesel, agricultural, and industrial applications. WIX's product line includes oil, air, fuel, and hydraulic filters, among others, catering to diverse needs in automobiles, trucks, and off-road equipment. Their long-standing expertise ensures quality filtration solutions across various markets.

  • Height = 143,002 mm; Outside Diameter Top = 96,012 mm; Outside Diameter Bottom = 96,012 mm; Nominal Micron Rating = 25 µm; Thread Size = 3/4-14 BSP; Bypass Valve Opening Pressure = 0,758 bar; Bypass Valve Opening Pressure (max.) = 1,172 bar; Flow Directio
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 143 mm
Outside Diameter Bottom 96 mm
Outside Diameter Top 96 mm
Thread Size 3/4-14 BSP mm

Nominal Micron Rating 25
Bypass Valve Opening Pressure 0.758
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: K43B627

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
