Hydraulics

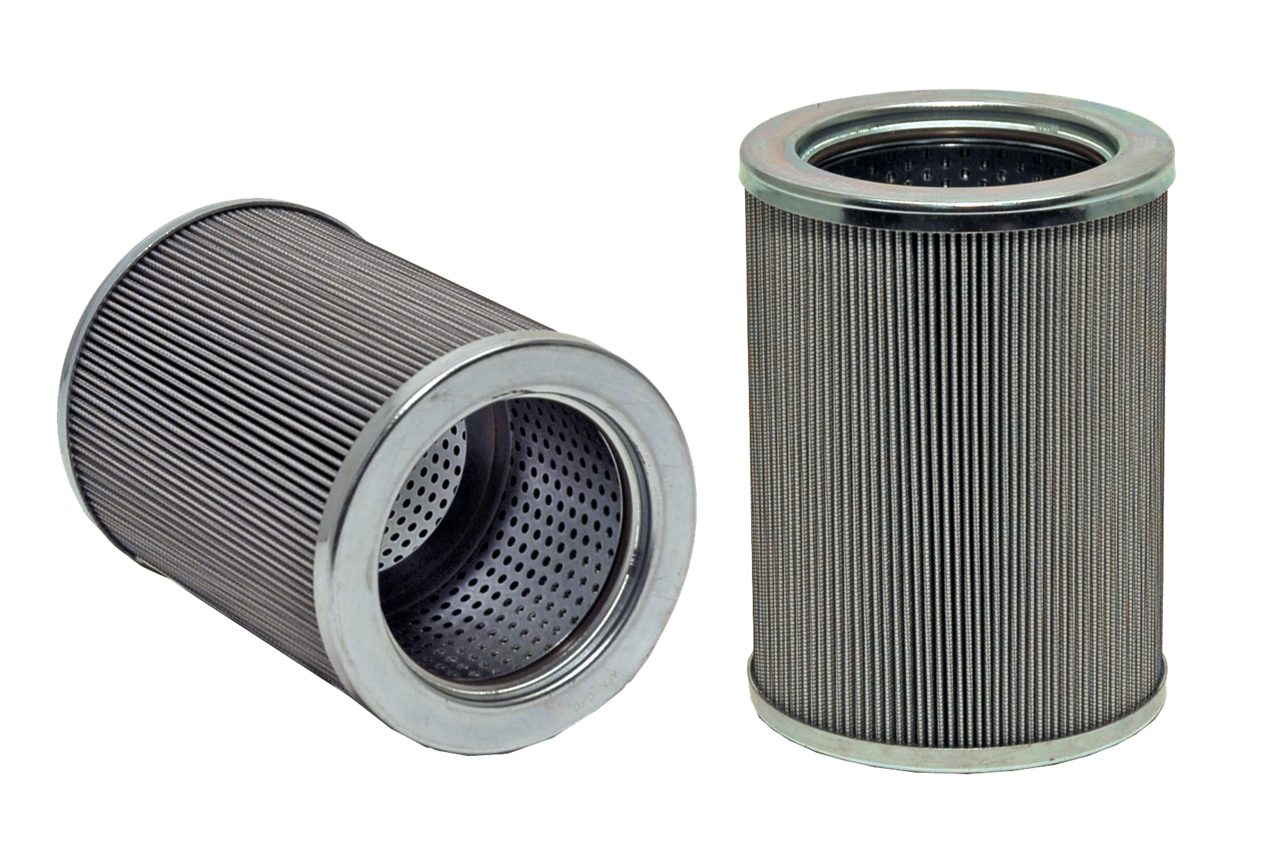

R61C06GV

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 207,01 mm; Outside Diameter Top = 151,994 mm; Outside Diameter Bottom = 151,994 mm; Inside Diameter Top = 105,512 mm; Inside Diameter Bottom = 105,512 mm; Nominal Micron Rating = 5 µm; Beta Ratio = 200/5.4; Beta Ratio 2 = 1000/7.7; Flow Type = Fu
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 207 mm
Inside Diameter Bottom 105.5 mm
Inside Diameter Top 105.5 mm
Outside Diameter Bottom 152 mm
Outside Diameter Top 152 mm

Filter media material
Beta Ratio 200/5.4
Nominal Micron Rating 5
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
27 Hydraulics filter Cummins QSL9 - - -
Model Type 27
Filter Type Hydraulics filter
Engine Code Cummins QSL9
ccm -
kW -
HP -
Year of manufacture

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
100 Hydraulics filter Cummins KTA38C - - -
60 Hydraulics filter Cummins QSK19 - - -
Model Type 100
Filter Type Hydraulics filter
Engine Code Cummins KTA38C
ccm -
kW -
HP -
Year of manufacture
Model Type 60
Filter Type Hydraulics filter
Engine Code Cummins QSK19
ccm -
kW -
HP -
Year of manufacture

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: R61C06GV

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
