Hydraulics

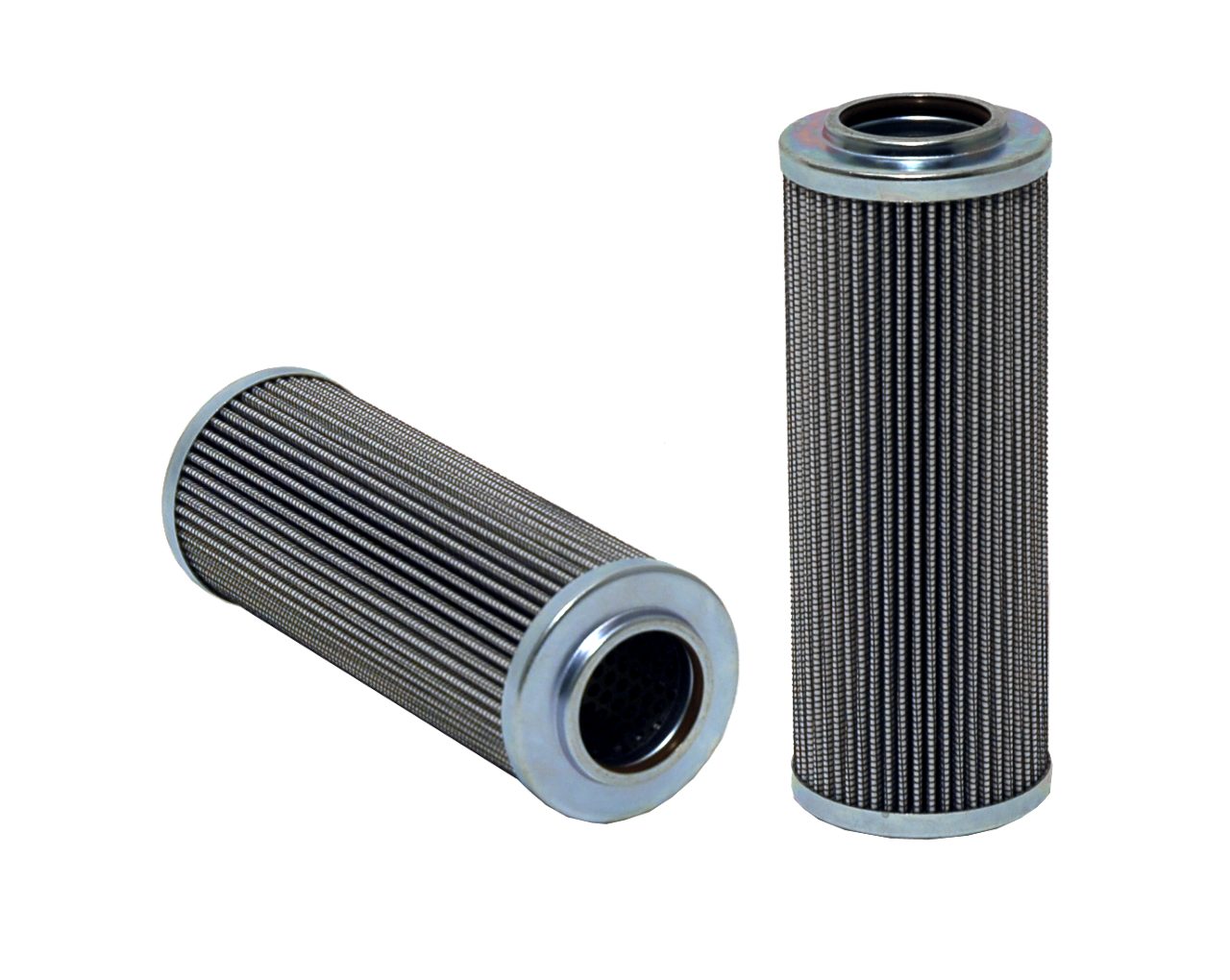

R63E10GV

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 159,004 mm; Outside Diameter Top = 57,912 mm; Outside Diameter Bottom = 57,912 mm; Inside Diameter Top = 32,258 mm; Inside Diameter Bottom = 32,258 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 200/9.9; Beta Ratio 2 = 1000/12.4; Flow Type = Ful
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 159 mm
Inside Diameter Bottom 32.3 mm
Inside Diameter Top 32.3 mm
Outside Diameter Bottom 57.9 mm
Outside Diameter Top 57.9 mm

Filter media material
Beta Ratio 200/9.9
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: R63E10GV

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
