Hydraulics
S45E10C

About this item

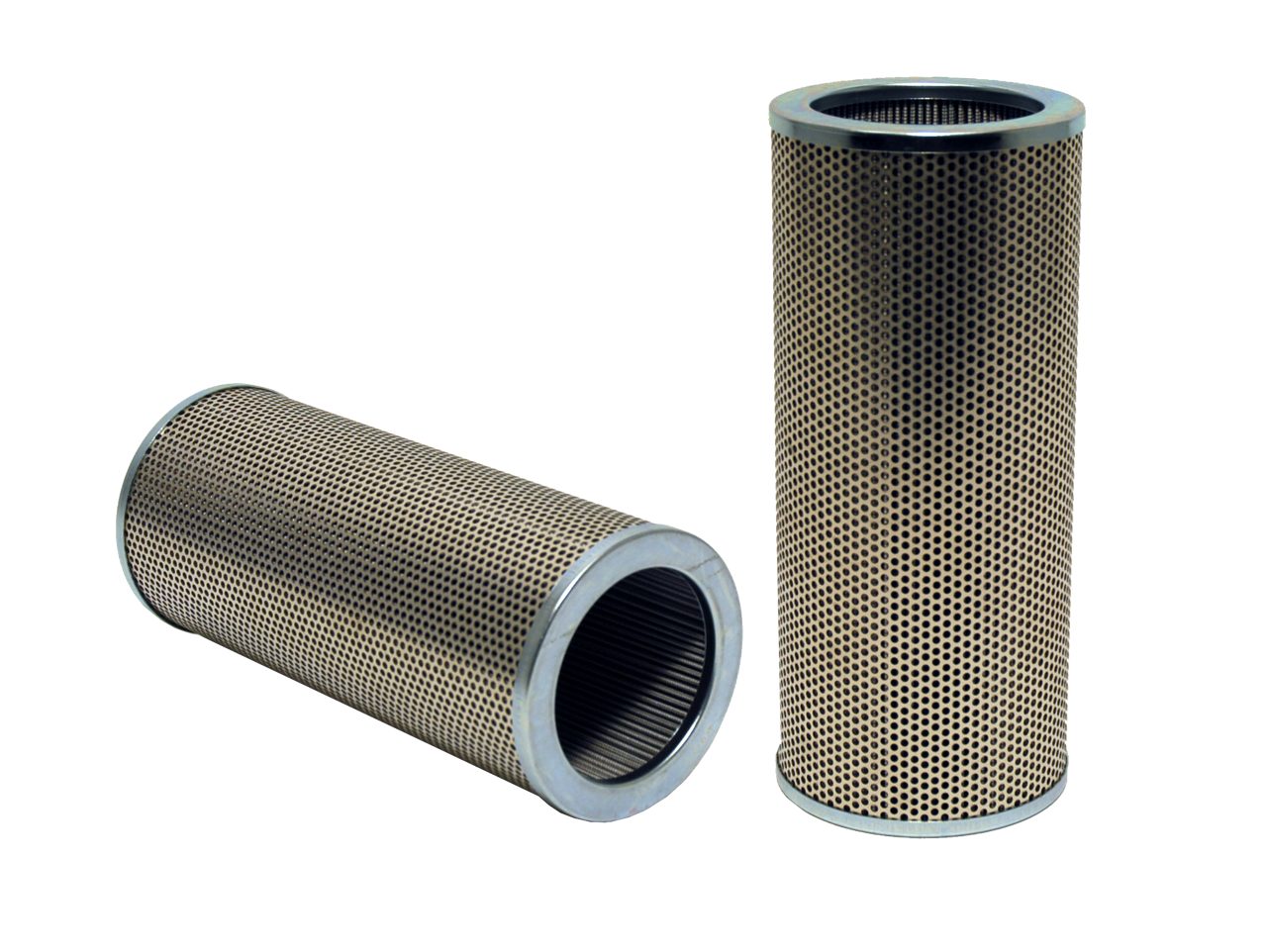

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 227 mm; Outside Diameter Top = 83,007 mm; Outside Diameter Bottom = 83,007 mm; Inside Diameter Top = 50,292 mm; Inside Diameter Bottom = 50,292 mm; Nominal Micron Rating = 10 µm; Beta Ratio = 2/10; Flow Type = Full flow; Flow Direction = Inside-O
  • Industrial Hydraulics

GTIN code: 765809357808

Product Details

No Data Available

Height 227 mm
Inside Diameter Bottom 50.3 mm
Inside Diameter Top 50.3 mm
Outside Diameter Bottom 83 mm
Outside Diameter Top 83 mm

Filter media material
Beta Ratio 2/10
Nominal Micron Rating 10
Operating temperature min. (°C) 48.888
Operating temperature max. (°C) -31.666
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

Model Type Filter Type Engine Code ccm kW HP Year of manufacture
1000C Hydraulics filter Deutz BF6L913 6128 95 129 01/95 → 12/99
Model Type 1000C
Filter Type Hydraulics filter
Engine Code Deutz BF6L913
ccm 6128
kW 95
HP 129
Year of manufacture 01/95 → 12/99

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: S45E10C

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).
