Hydraulics

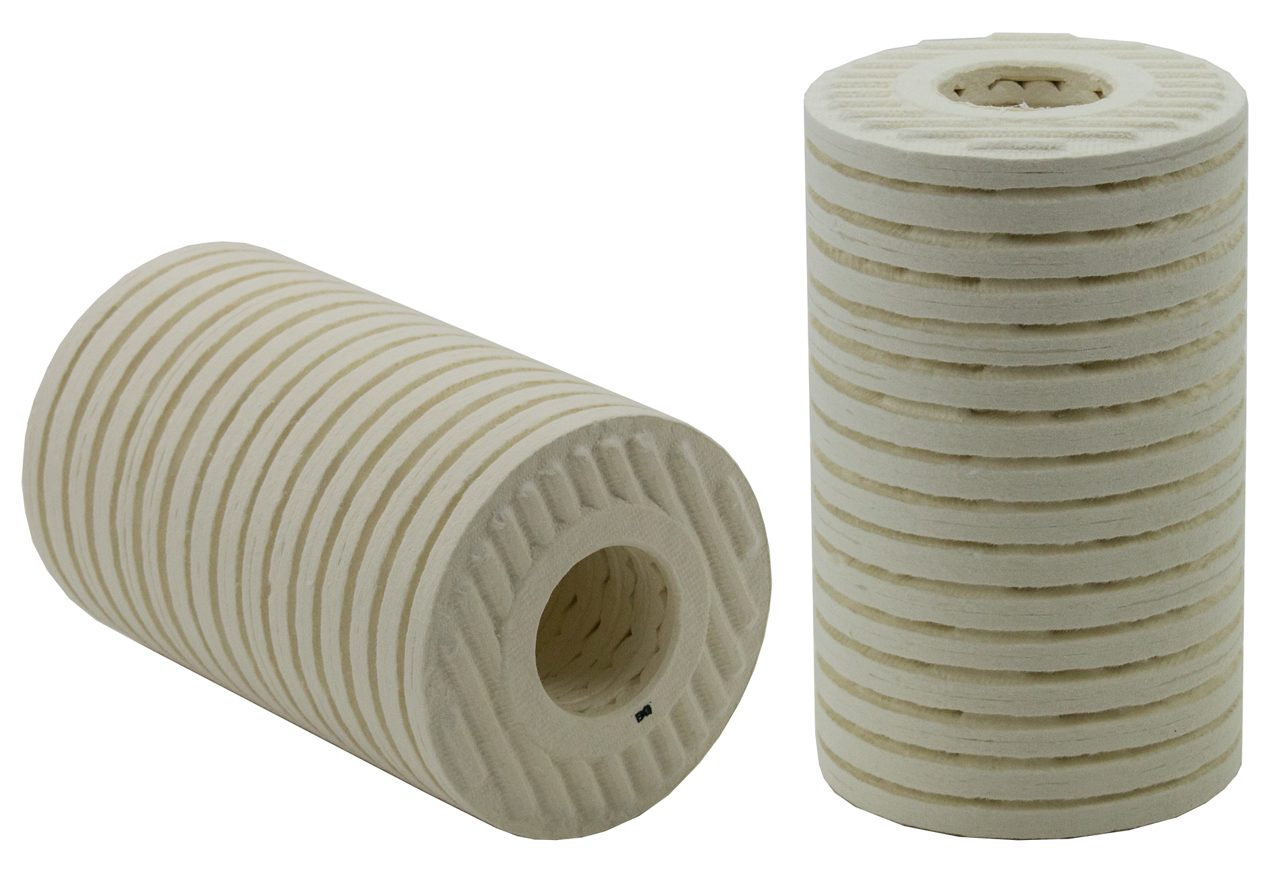

W90A405

About this item

WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. WIX HD Hydraulic Filters ensure leak-resistant, long-lasting performance under all operating conditions.

  • Height = 250,012 mm; Outside Diameter Top = 150,114 mm; Outside Diameter Bottom = 150,114 mm; Inside Diameter Top = 60,452 mm; Inside Diameter Bottom = 60,452 mm; Nominal Micron Rating = 1 µm; Beta Ratio = 2/0.8; Flow Type = Full flow; Flow Direction = Ou
  • Industrial Hydraulics

GTIN code:

Product Details

No Data Available

Height 250 mm
Inside Diameter Bottom 60.5 mm
Inside Diameter Top 60.5 mm
Outside Diameter Bottom 150.1 mm
Outside Diameter Top 150.1 mm

Filter media material
Beta Ratio 2/0.8
Nominal Micron Rating 1
Operating temperature min. (°C) -17.777
Operating temperature max. (°C) -17.777
Filter with by-pass valve No
Filter with anti-drain valve No
Filter with anti-siphon valve No

No Data Available

No Data Available

No Data Available

SVHC declaration according to the regulation EC 1907/2006 concerning the Registration, Evaluation, Authorisation, and Restriction of Chemicals (REACH).



Product: W90A405

MANN+HUMMEL is well aware of REACH and meets all legal obligations under this regulation.

MANN+HUMMEL has established internal processes to ensure implementation and compliance with the REACH Regulation. Especially, we continuously work on the assessment of the presence of SVHC (Substances of Very High Concern).

We may inform you that according to the present level of information and best knowledge, this product does not contain any SVHC listed on the Candidate List in a concentration above 0,1% (w/w).

Last update: 2026-03-23 00:00:00
